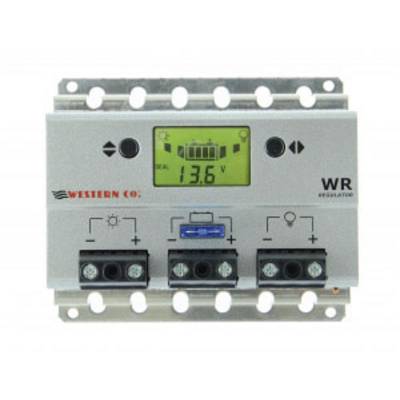

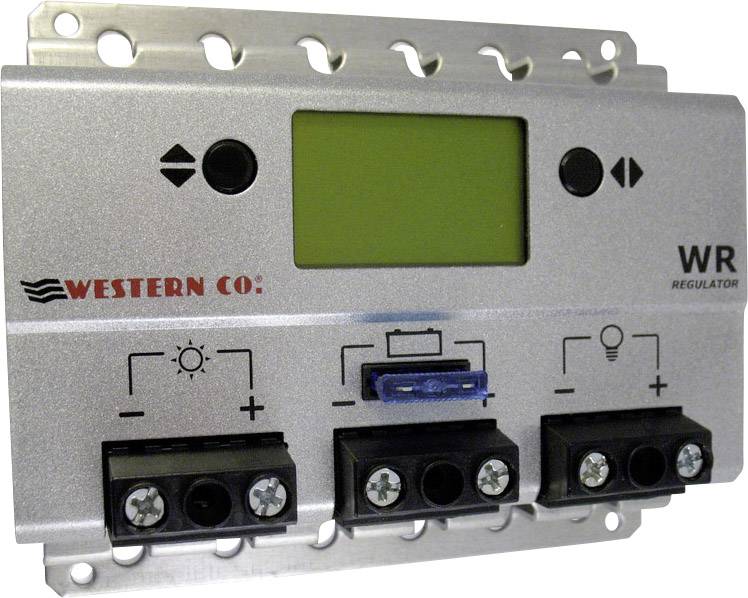

Western Co. WR20 Charge controller PWM 12 V, 24 V 20 A
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Solar charge controller WR20
- Easy to use and reliable
- 19 programs for managing the load
- Automatic voltage detection.
Technical specifications
- Final charging voltage 14.4 V/28.8 V.
- Protection type IP20
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
520 Wp
- Temperature range
-10 °C to 60 °C
- Charging current (max.)
20 A
- Own power consumption
< 8 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 143 x 120 x 47 mm
- Weight
330 g
- Current load
20 A
- Module load (max.)
20 A
- Width
143 mm
- Height
120 mm
- Depth
47 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1556068 Western Co. WR20 Charge controller PWM 12 V, 24 V 20 A
Information
Information 1556068 Western Co. WR20 Charge controller PWM 12 V, 24 V 20 A
Description
This solar charge controller is suitable for private as well as industrial use and for telecommunications systems.
The load can be activated by the user based on different configurations: Load always activated, load only activated during the day, load only activated at night, or load only activated at night, including programming function for a total period of 1 – 16 hours. The charge regulator determines the day/night conditions based on the module voltage; therefore, it is not necessary to connect further sensors to the regulator.
This text is machine translated.
The load can be activated by the user based on different configurations: Load always activated, load only activated during the day, load only activated at night, or load only activated at night, including programming function for a total period of 1 – 16 hours. The charge regulator determines the day/night conditions based on the module voltage; therefore, it is not necessary to connect further sensors to the regulator.
This text is machine translated.
Features
- Automatic voltage adjustment
- 19 programs for managing the load
- Night light function
- LC-display
- Low power loss
- Over- and deep discharge protection
- Reverse polarity protection
- Overtemperature and overload protection
- Protection against reverse polarity Polarity of the battery
Scope of delivery
- Charge controller
- User manual.
