Western Co. WRM15 dualB Charge controller MPPT 12 V, 24 V 15 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Only 2 Piece(s) available
Highlights & Details

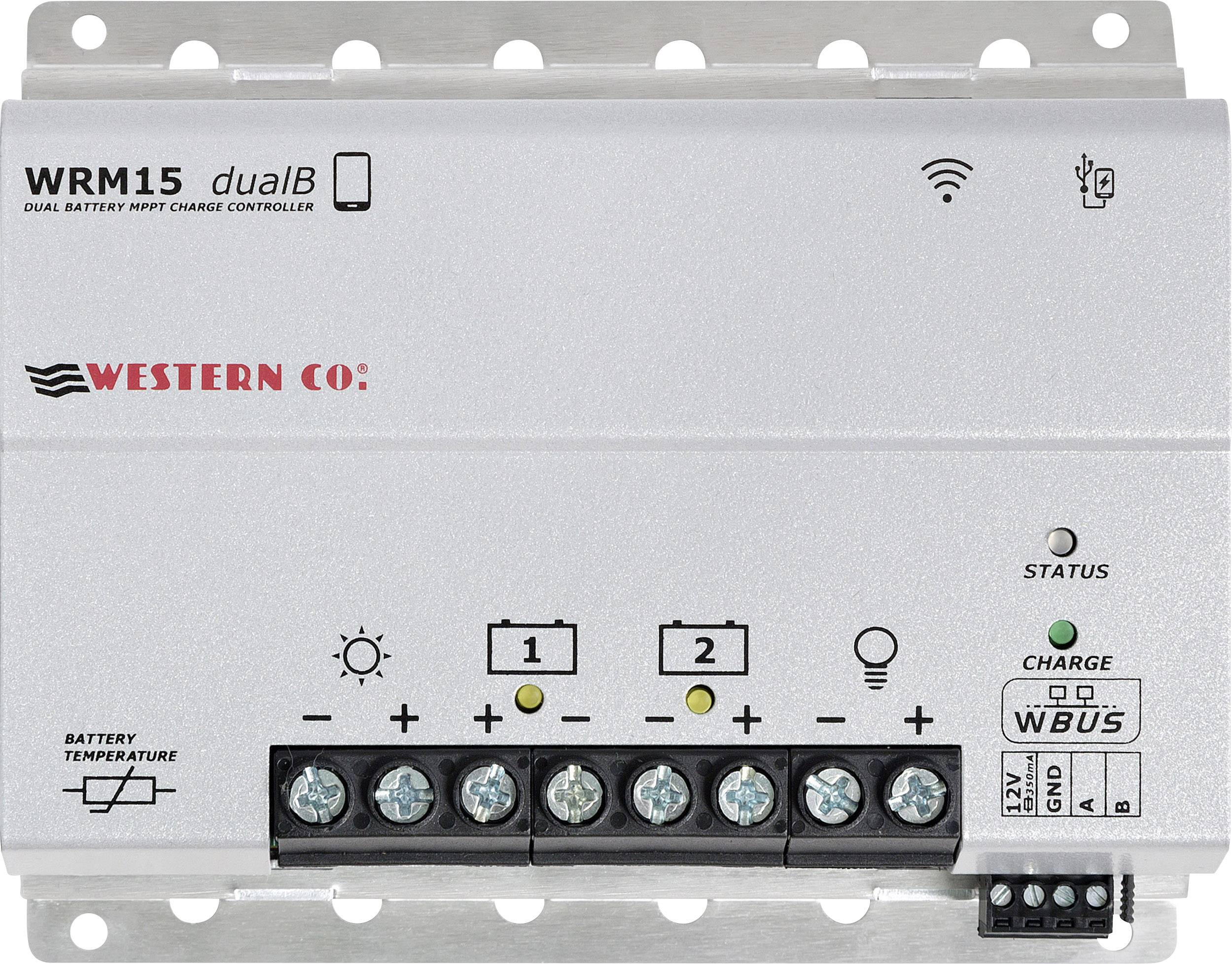

Solar charge regulator WRM 15
- For the charging of two accumulators
- Remote monitoring using Bluetooth and Android/IoS
- USB-connection in the charge controller
Technical specifications
- -8.2 14.8/29.6 V
- Protection type IP20
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
500 Wp
- Temperature range
-10 °C to 60 °C
- Charging current (max.)
15 A
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
- Control type
MPPT
- Dim
(W x H x D) 143 x 119 x 51 mm
- Weight
515 g
- Current load
15 A
- Module load (max.)
15 A
- Width
143 mm
- Height
119 mm
- Depth
51 mm
Documents & Downloads
Datasheet
Datasheet 1556073 Western Co. WRM15 dualB Charge controller MPPT 12 V, 24 V 15 A
User & Safety Instructions
User & Safety Instructions 1556073 Western Co. WRM15 dualB Charge controller MPPT 12 V, 24 V 15 A
Information
Information 1556073 Western Co. WRM15 dualB Charge controller MPPT 12 V, 24 V 15 A
Description
The wrm solar charging controller for charging of two separate batteries is ideally suited for use in self-sustaining PV systems for small consumers in mountain huts, Caravans, caravans and boats to supply or to all other places without access to mains supply.
This text is machine translated.
This text is machine translated.
Features
- For the charging of two accumulators: priority will be the first, then the second battery is charged
- USB-connection in the charge controller
- Remote monitoring using Bluetooth and Android/IoS
- Automatic voltage detection.
- 18 programs for the administration of the load
- Reverse polarity protection
- Over and deep discharge protection
- Temperature and overload protection
- Protection against reverse polarity of the battery
Scope of delivery
- Charge Controllers
- User manual.
