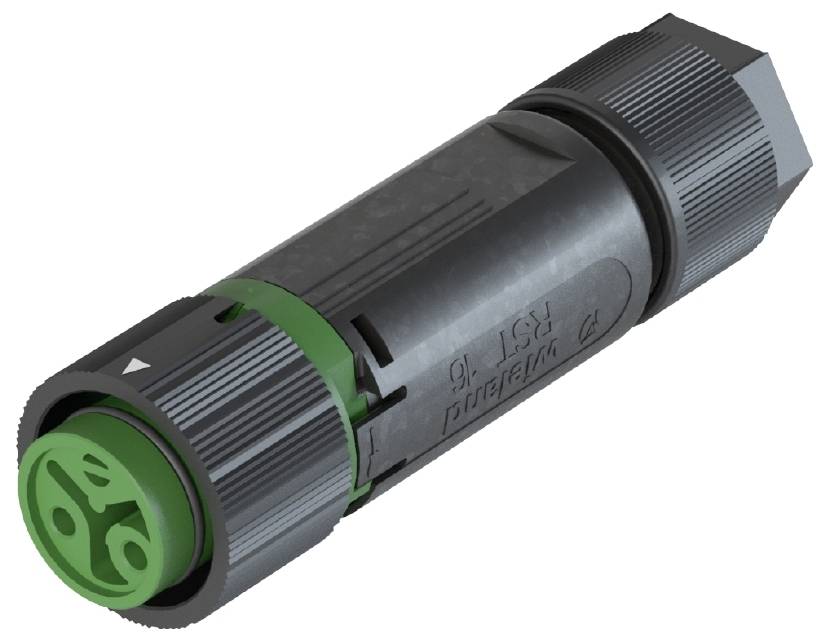

Wieland Electric 46.031.4556.7 Connector
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Connector
- Type A
Socket
- Connector version
straight
- Connection
Screw connection
- Rated voltage
250 V
- Test current
16 A
- Cable Ø (max.)
10.6 mm
- Cable Ø up to
5 mm
- Cable Ø range
5 - 10.6 mm
- Number of pins
2
IP66
- Series
RST Mini
19.9 mm
Bus
TRUE
19.9 mm
Screw connection
Integrated in plug-in connector
16 A
250 V
TRUE
2
71 mm
Polyamide (PA)
5-10.6 mm
Silver-plated
3
TRUE
4 kV
0.75 mOhm
CuZn
IP66
1
1, 2
Green
0.151 kWh
0.25-2.5 mm²
0.25-2.5 mm²
100 °C
6002
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3273325 Wieland Electric 46.031.4556.7 Connector
Description
RST® MINI connector
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert leaf green
This text is machine translated.
straight
Number of poles: 2
Socket
Connection type: screw terminals.
Rated voltage 250 V / 400 V
Rated current 16 A
Cable diameter 5 - 10.6 mm
Coding color / contact insert leaf green
This text is machine translated.
