Wieland Electric 70.342.1635.0 Enclosure bottom Cable gland Total number of pins: 16 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Enclosure bottom
Connector type
Cable gland
Total no. of pins
16
Content
1 pc(s)
Type
BAS GUT GH 16 M25 A0
Number
Total (€ 33.99 / piece)
€ 33.99
incl. VAT
14-day return policy included
Technical specifications
- Type
BAS GUT GH 16 M25 A0
- Product type
Enclosure bottom
- Connector type
Cable gland
- Total no. of pins
16
- Factory colour
Grey
- Content
1 pc(s)
- Max. temperature
120 °C
- Min. temperature
-40 °C
- Case material
Aluminium
- Manufacturer part #
70.342.1635.0
- Number of pins
16
- Width
57 mm
- Height
57 mm
IP54
- Packaging type
Piece
57
TRUE
57 mm
TRUE
Grey
Double locking levers
TRUE
TRUE
Aluminium
Powder coating
-40-120 °C
Other
Housing extension
IP54
Sideways
Cover
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3271958 Wieland Electric 70.342.1635.0 Enclosure bottom Cable gland Total number of pins: 16 1 pc(s) Piece
Description

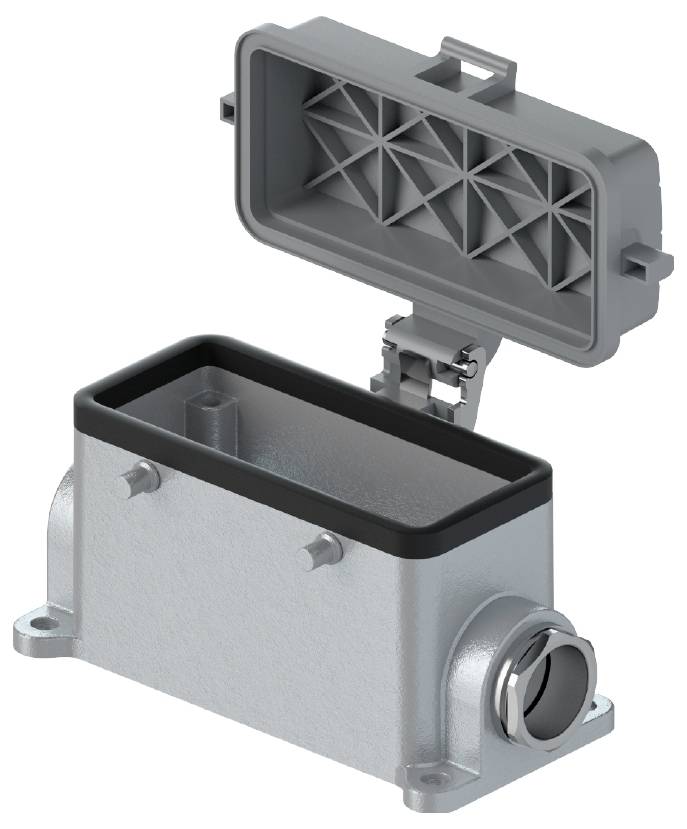

Revos basic aluminum lower section
With two-hand locking mechanism with protective cover and M25 cable gland on right (IP54)
Low type
16-pin
This text is machine translated.
With two-hand locking mechanism with protective cover and M25 cable gland on right (IP54)
Low type
16-pin
This text is machine translated.
