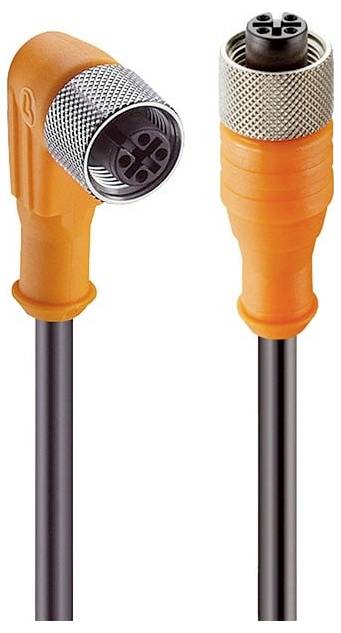

Image similar
WIKA 14259451 Sensor/actuator cable M12 x 1 2 m No. of pins (RJ): 4 1 pc(s)
Product type
Sensor/actuator cable
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
Cable, open end
No. of pins
4
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: EZE53 adapter cable, with cable socket and plug
- Cable length 2 m Ø4,75 mm - Ø5,7 mm
- PROTECTION CLASS IP IP65/IP67
- Design: standard
- Cable material PUR
- Connection assignment 4-pole
- Wire cross-section 4 x 0.34 mm2
- Terminal version 1: M12x1, straight coupling
- Coding port 1: A-coded
- Connection version 2: Open end
- Shielding: shielded
- Temperature range: -40 … +80°C (fixed installation)
- Type
EZE53
- Product type
Sensor/actuator cable
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
2 m
- Jacket material
PUR
- Connector cross-section (max.)
0.34 mm²
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Open cable ends
- Thread type connection side
M12 x 1
- Thread type (wiring and installation)
M12 x 1
- Coding
A
IP65
IP67
- Features
Shielded
A-coded
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Manufacturer part #
14259451
- Content
1 pc(s)
- Cable Ø (max.)
5.7 mm
- Cable Ø up to
4.75 mm
- Cable Ø range
4.75 - 5.7 mm
Documents & Downloads
Datasheet
Datasheet 3524534 WIKA 14259451 Sensor/actuator cable M12 x 1 2 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524534 WIKA 14259451 Sensor/actuator cable M12 x 1 2 m No. of pins (RJ): 4 1 pc(s)
Description
EZE53 2 m M12x1, straight coupling 4-pin IP65/IP67
Type: EZE53 adapter cable, with cable socket and plug
Design: standard
Cable length 2 m Ø4,75 mm - Ø5,7 mm
Cable material PUR
Wire cross-section 4 x 0.34 mm2
Terminal version 1: M12x1, straight coupling
Coding port 1: A-coded
Connection version 2: Open end
Connection assignment 4-pole
Shielding: shielded
Temperature range: -40 … +80°C (fixed installation)
PROTECTION CLASS IP IP65/IP67
Technical data according to data sheet: AC50.08
