Name: Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm
Brand: Wima
SKU: 3523651
Availability: SoldOut

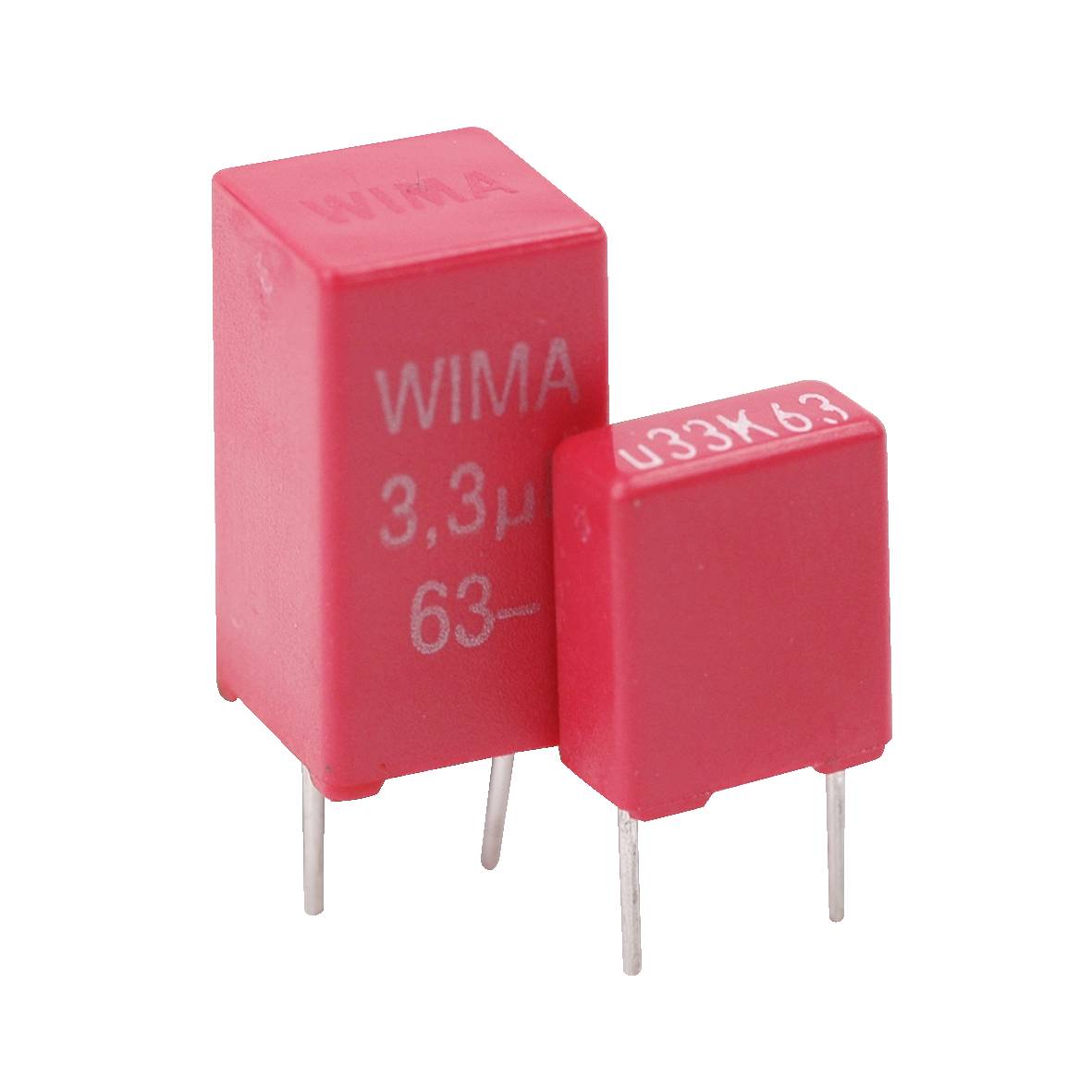

Two red WIMA film capacitors with metal leads, visually indicating size difference. Larger capacitor is labeled '3,3μ 63', smaller 'u33X63'.

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

15 nF

Nominal voltage

63 V DC

40 V AC

Tolerance ±

10 %

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 0.58753 / piece)

€ 0.59

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Wima MKT thin film capacitor

Our service for you

Technical specifications

ESD Packaging: No ESD
Series MKS2
Design_1: Radial
Applications:For general DC-applications: Bypass, blocking, coupling and decoupling, timing
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) foil
Receipts: Metalised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
Pitch_1:5.0 mm
Climate category IEC 55/100/21
Capacitance 15 nF
Capacity_1: 15
Capacitance unit: NF
Capacity Tolerance 10%
Dielectric: Metallized PET film
Nominal voltage DC 63 V
Nominal voltage AC 40 V
Pulse load 35 V/µs
Reliability: 2.0 fit
Lifetime_1: 300,000 h
Insulation resistance_1: 1,000 MOhm

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 7.2 x 2.5 x 6.5 mm

Capacity (elec.): 15 nF

Nominal voltage: 63 V DC
40 V AC

Flank steepness: 35 V/µs

Tolerance ±: 10 %

Material: Polyethylene terephthalate

Length: 7.2 mm

Width: 2.5 mm

Height: 6.5 mm

CS: 5.0 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKS2C021501A00KSSD

Variants(All information include VAT, plus shipping costs)

Dim

Height

Capacity (elec.)

Nominal voltage

Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523651

Unavailable

Conrad Electronic

This article

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

15 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.58753^*

Wima 1 pc(s) MKT thin film capacitor Radial lead 150 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Piece

Item no:3523654

Fast track dispatch on Wed 21 Oct

116 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

150 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.42432^*

Wima MKS2C022201A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 22 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523652

Fast track dispatch on Wed 21 Oct

143 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

22 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.58753^*

Wima MKS2C031001A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 100 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523653

Fast track dispatch on Wed 21 Oct

197 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

100 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.61794^*

Wima MKS2C032201B00KSSD 1 pc(s) MKT thin film capacitor Radial lead 220 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.0 x 7.5 mm

Item no:3523655

Fast track dispatch on Wed 21 Oct

174 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 3.0 x 7.5 mm

7.5 mm

220 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.67215^*

Wima MKS2C033301C00KSSD 1 pc(s) MKT thin film capacitor Radial lead 330 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.5 x 8.5 mm

Item no:3523656

Fast track dispatch on Wed 21 Oct

195 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 3.5 x 8.5 mm

8.5 mm

330 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.75329^*

Wima MKS2C034701C00KSSD 1 pc(s) MKT thin film capacitor Radial lead 470 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.5 x 8.5 mm Piece

Item no:3523658

Fast track dispatch on Wed 21 Oct

681 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 3.5 x 8.5 mm

8.5 mm

470 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.65961^*

Wima MKS2C036801E00KSSD 1 pc(s) MKT thin film capacitor Radial lead 680 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 4.5 x 9.5 mm Bulk

Item no:3523659

Fast track dispatch on Wed 21 Oct

172 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 4.5 x 9.5 mm

9.5 mm

680 nF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.64733^*

Wima MKS2C041001F00KSSD 1 pc(s) MKT thin film capacitor Radial lead 1 µF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 5.0 x 10.0 mm Bulk

Item no:3527555

Fast track dispatch on Wed 21 Oct

118 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 5.0 x 10.0 mm

10.0 mm

1 µF

63 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1.17588^*

Wima MKS2D021001A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 10 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3523650

Fast track dispatch on Wed 21 Oct

81 Piece(s)Conrad Electronic

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

10 nF

100 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.61199^*

Documents & Downloads

Datasheet

Datasheet 3523651 Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

User & Safety Instructions

User & Safety Instructions 3523651 Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Description

Wima MKT condensers MKS2 RM5 10%
