Wima MKP1J024704C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 47 nF 630 V DC, 400 V AC 10 % 15.0 mm (L x W x H) 18
Part number:
Item no:
Packaging type
Bulk
Product type
MKP thin film capacitor
Type
Radial lead
Capacity (elec.)
47 nF
Nominal voltage
630 V DC
400 V AC
Datasheet (PDF)
Number
Total (€ 0.90777 / piece)
€ 0.91
incl. VAT
14-day return policy included
Technical specifications
- ESD Packaging: No ESD
- Series MKP10
- Design_1: Radial
- Applications: Impulse-loaded applications like e.g. switching power supplies, television and monitoring technology, lighting technology, audio and video range
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Dielectric made of polypropylene (PP) foil
- Receipts made from double-sided metalised plastic film
- Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
- Connections made of tin-plated wire
- Impulse load capacity 200...1800V/µs
- self-healing
- Negative capacity change over temperature
- Pitch_1:15.0 mm
- Climate category IEC 55/100/56
- Capacitance 47 nF
- Capacity_1: 47
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage DC 630 V
- Nominal voltage AC 400 V
- Reliability: 1 fit
- Lifetime_1: 300,000 h
- Insulation resistance_1: 100 ohms
- Packaging type
Bulk
- Product type
MKP thin film capacitor
- Type
Radial lead
- Dim
(L x W x H) 18.0 x 6.0 x 12.5 mm
- Capacity (elec.)
47 nF
- Nominal voltage
630 V DC
400 V AC
- Tolerance ±
10 %
- Material
Polypropylene
- Connection
THT
- Length
18.0 mm
- Width
6.0 mm
- Height
12.5 mm
- CS
15.0 mm
- Min. temperature
55 °C
- Max. temperature
100 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
MKP1J024704C00KSSD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523640 Wima MKP1J024704C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 47 nF 630 V DC, 400 V AC 10 % 15.0 mm (L x W x H) 18
User & Safety Instructions
User & Safety Instructions 3523640 Wima MKP1J024704C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 47 nF 630 V DC, 400 V AC 10 % 15.0 mm (L x W x H) 18
Description

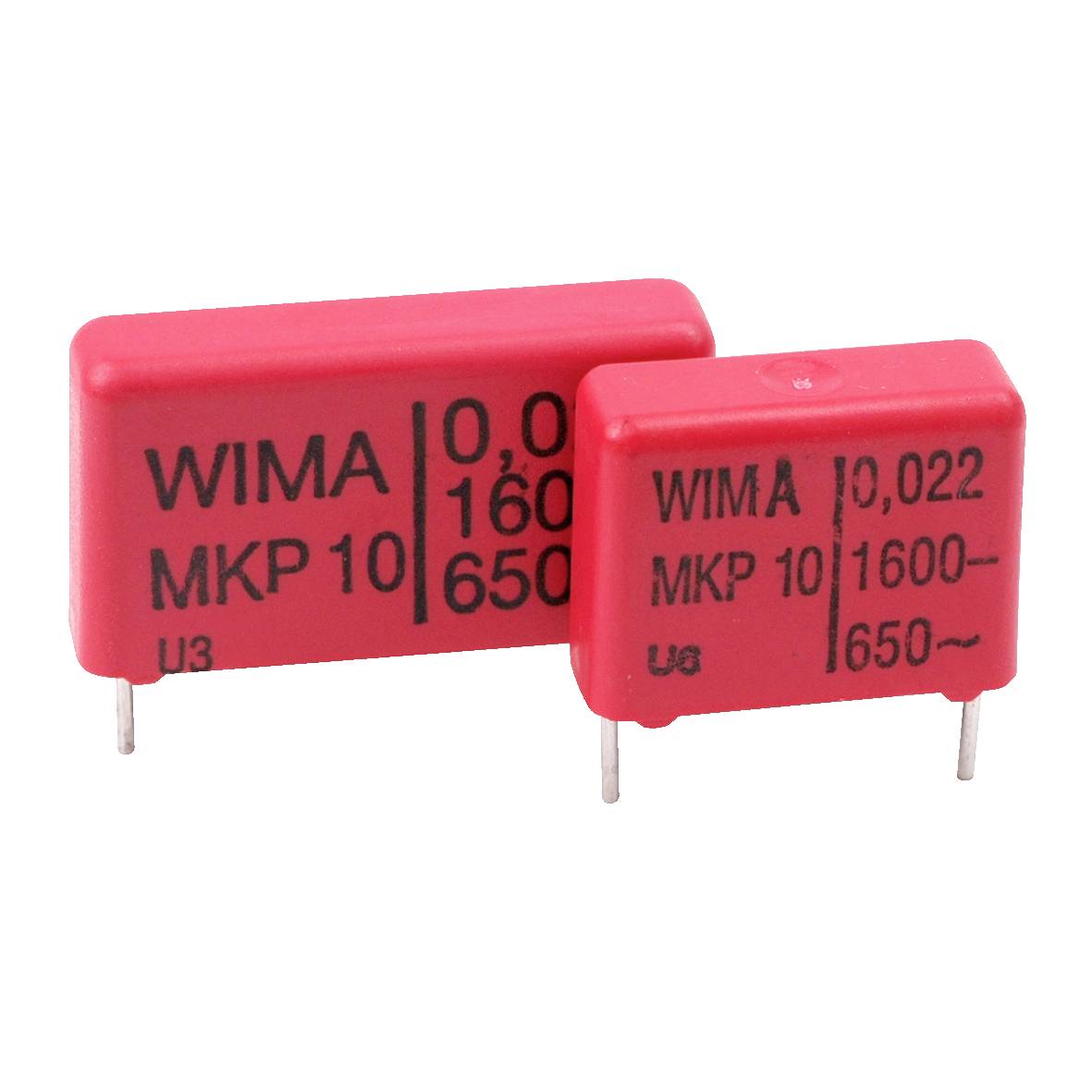

Wima MKP capacitors MKP10 RM7...37.5
