Name: Wima MKS2C043301K00KSSD 1 pc(s) MKT thin film capacitor Radial lead 3.3 µF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2
Brand: Wima
SKU: 3523661
Availability: SoldOut

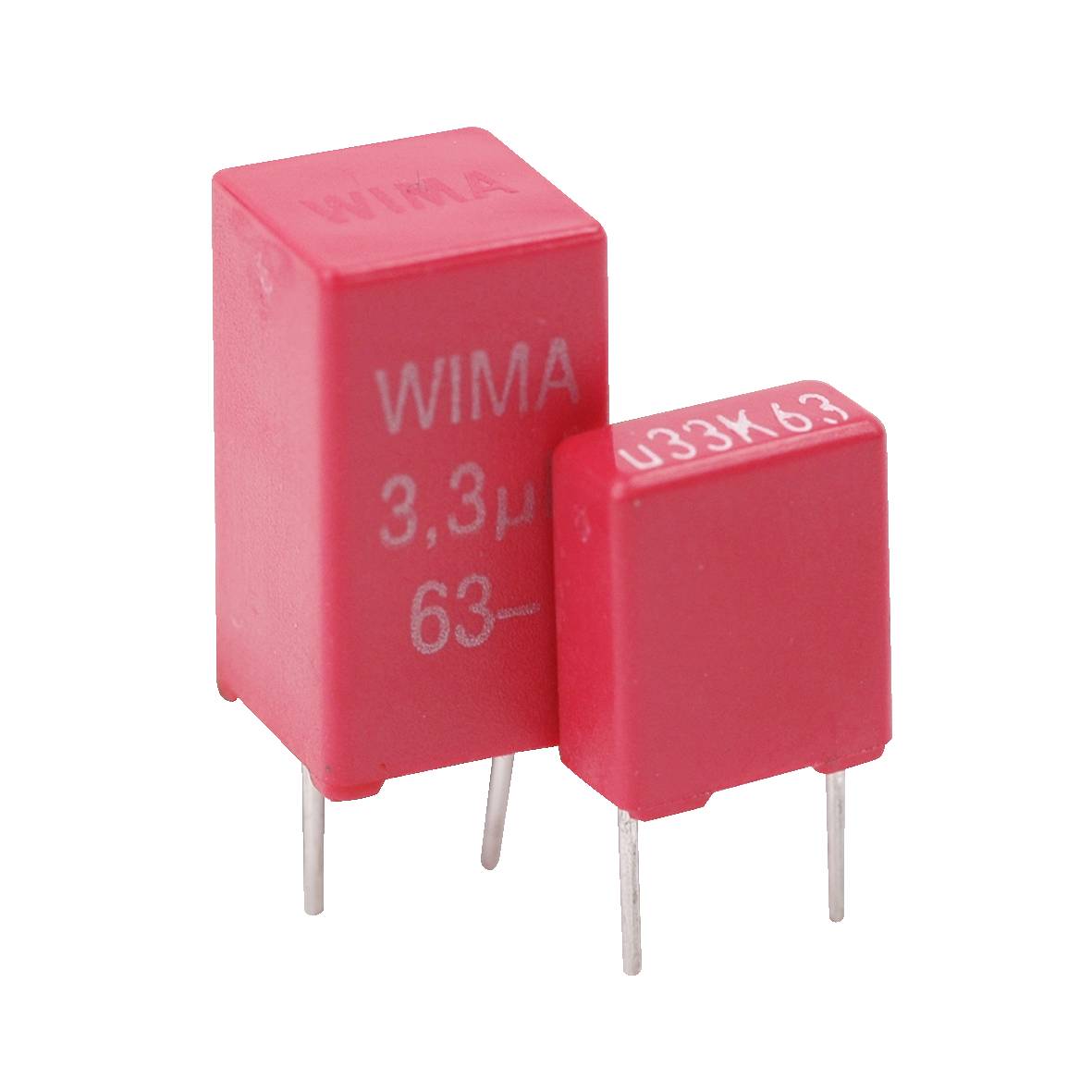

Two red film capacitors with legs for PCB mounting. The larger is marked 'WIMA 3,3μ 63', and the smaller 'U33X 63'.

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

3.3 µF

Nominal voltage

63 V DC

40 V AC

Tolerance ±

10 %

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2.49 / piece)

€ 2.49

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series MKS2
Design_1: Radial
Applications:For general DC-applications: Bypass, blocking, coupling and decoupling, timing
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) foil
Receipts: Metalised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
Pitch_1:5.0 mm
Climate category IEC 55/100/21
Capacity 3.3 µF
Capacity_1: 3.3
Unit of capacity: µF
Capacity Tolerance 10%
Dielectric: Metallized PET film
Nominal voltage DC 63 V
Nominal voltage AC 40 V
Pulse load 7.5 V/µs
Reliability: 2.0 fit
Lifetime_1: 300,000 h
Insulation resistance_1: 1,000 MOhm

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 7.2 x 7.2 x 13.0 mm

Capacity (elec.): 3.3 µF

Nominal voltage: 63 V DC
40 V AC

Flank steepness: 7.5 V/µs

Tolerance ±: 10 %

Material: PET

Length: 7.2 mm

Width: 7.2 mm

Height: 13.0 mm

CS: 5.0 mm

Min. temperature: -55 °C

Max. temperature: 100 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKS2C043301K00KSSD

UKCA: yes
