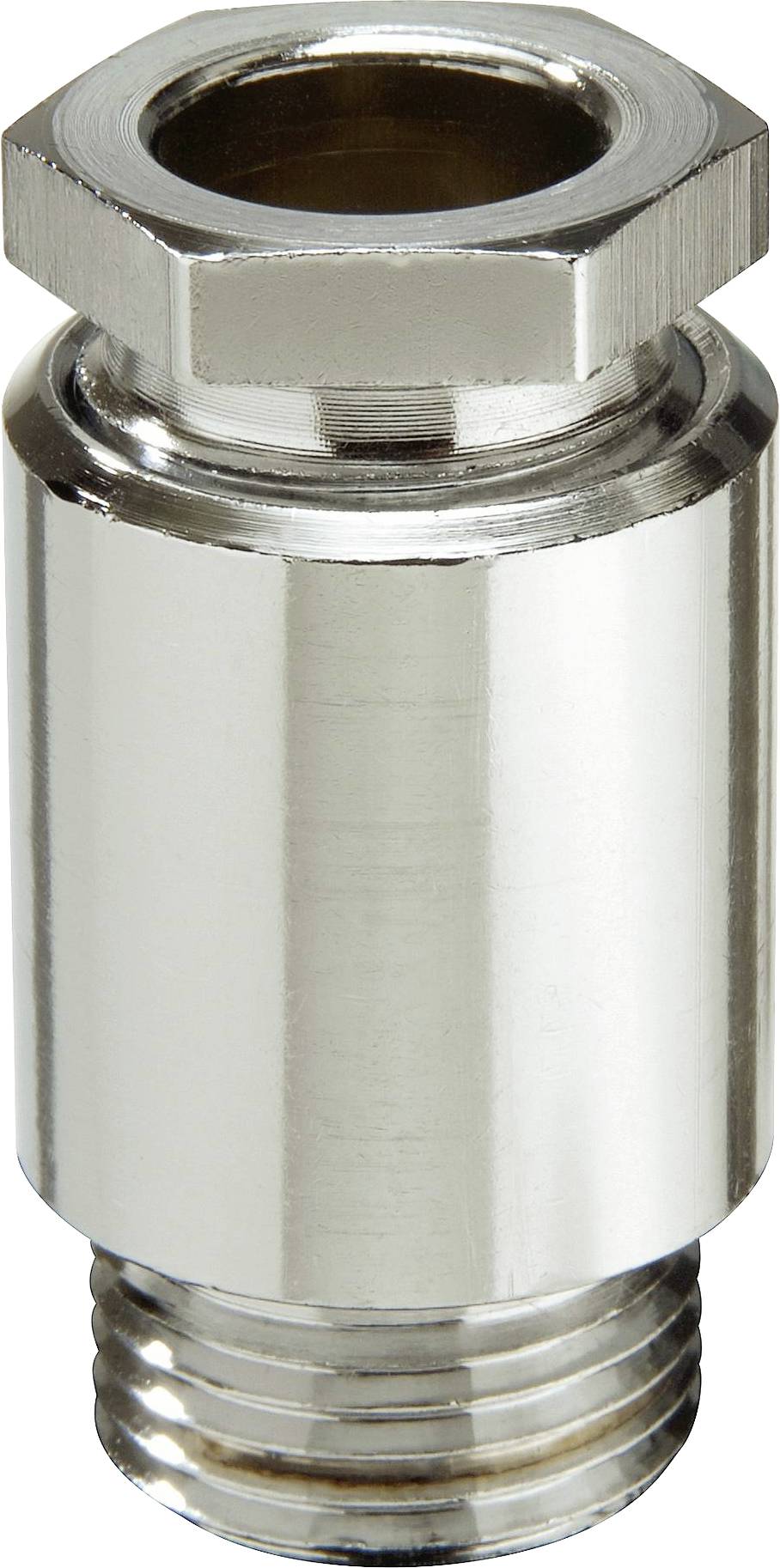

Wiska 10012807 Cable gland shockproof, with seal M24 Brass (Ni-plated) Ecru 1 pc(s)
Product type
Cable gland
External thread
M24
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
10 mm
EAN:
Part number:
Item no:
Number
Total (€ 20.99 / piece)
€ 20.99
incl. VAT
14-day return policy included
Highlights & Details
EMC brass cable gland M24
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 28 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M24
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
10 mm
- Terminal Ø (max.)
12.5 mm
- Thread length
11 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
24 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10012807
- Type
KVM 24-Z12 Ni
- Case material
Brass
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476946 Wiska 10012807 Cable gland shockproof, with seal M24 Brass (Ni-plated) Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
