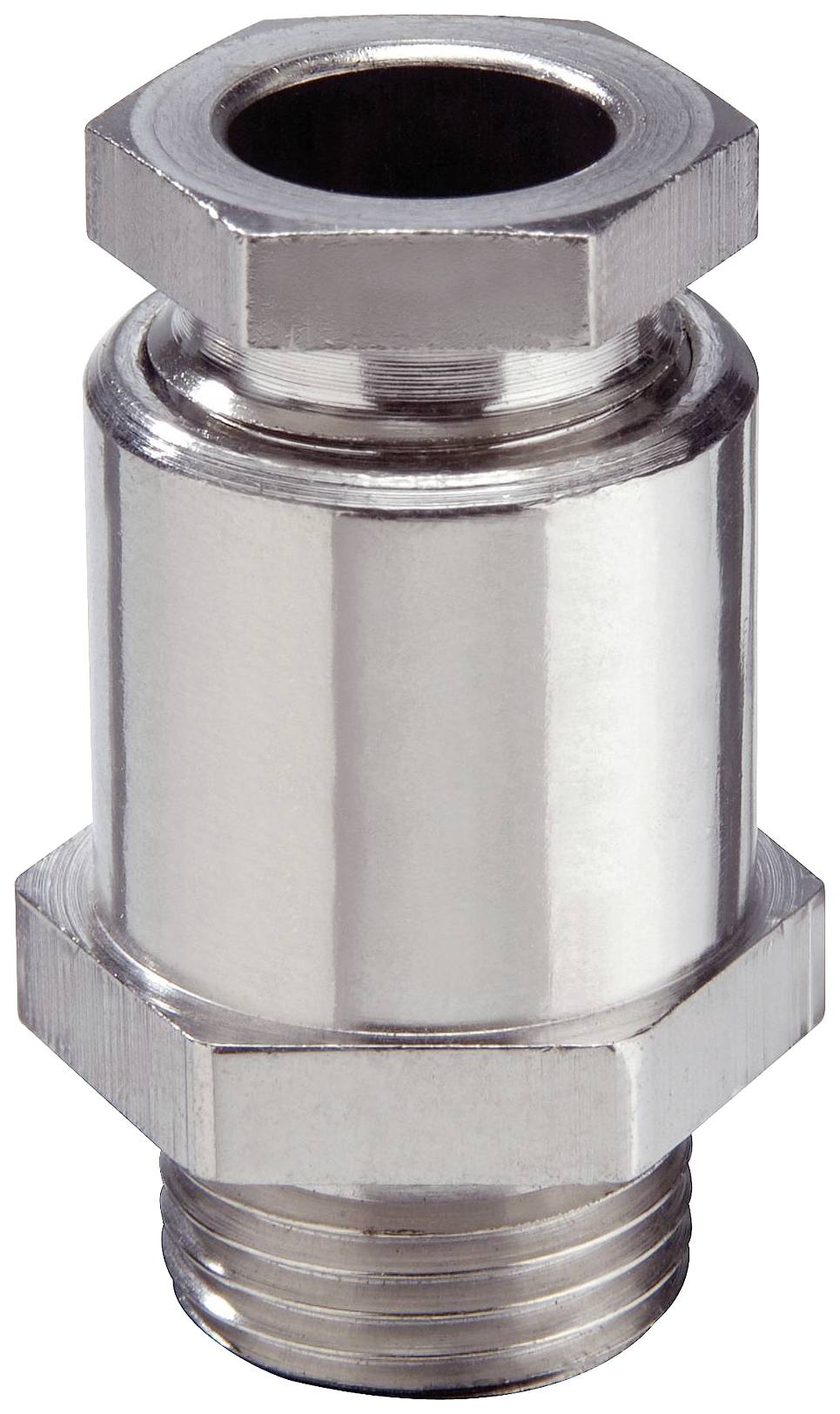

Wiska 10014270 Cable gland shockproof, with seal M25 Brass (Ni-plated) Ecru 1 pc(s)
Product type
Cable gland
External thread
M25
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
12 mm
EAN:
Part number:
Item no:
Number
Total (€ 21.99 / piece)
€ 21.99
incl. VAT
14-day return policy included
Highlights & Details
EMC brass cable gland 24/25-Z14
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 28 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M25
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
12 mm
- Terminal Ø (max.)
14.5 mm
- Thread length
11 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
24 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10014270
- Type
EKVM 24/25-Z14 Ni
- Case material
Brass
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476968 Wiska 10014270 Cable gland shockproof, with seal M25 Brass (Ni-plated) Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
