Name: Wiska 10065057 Cable gland shockproof, with strain relief, with seal M16 Brass (Ni-plated) Ecru 50 pc(s)
Brand: Wiska
SKU: 2477663
Availability: BackOrder

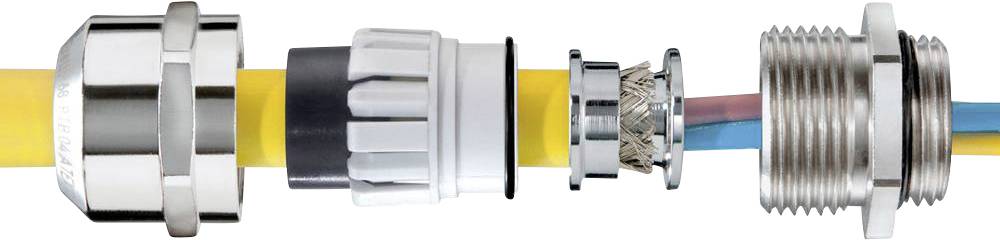

Exploded view diagram of a cable system with a yellow cable and metal components, including seals and screw connections.

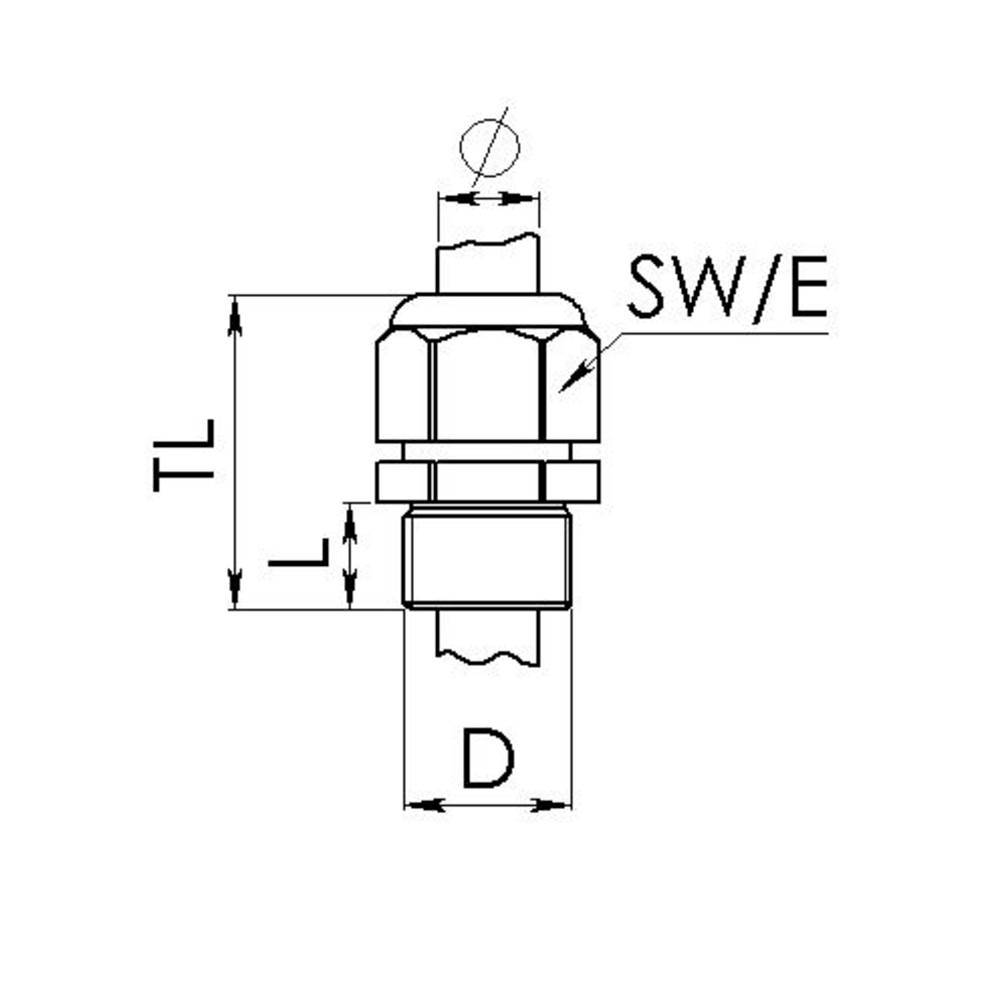

Technical drawing of a pipe connector with dimensions TL, L, SW/E and D, shown in a front view.

1/2

Product type

Cable gland

External thread

M16

Type

straight

Material

Brass (Ni-plated)

Clamp Ø

4.5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 12.18 / piece)

€ 609.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EX-EMC BRASS CABLE GLAND M16

Our service for you

Technical specifications

Thread pitch 1.5 mm
Hexagonal corner dimensions 22 mm
Type of seal: Sealing ring
EMC design: Yes
Shielded: Yes

Product type: Cable gland

Features: shockproof
with strain relief
with seal

Factory colour: Ecru

External thread: M16

Type: straight

Material: Brass (Ni-plated)

Clamp Ø: 4.5 mm

Terminal Ø (max.): 10 mm

Thread length: 5 mm

Min. temperature: -40 °C

Max. temperature: +75 °C

: IP68

Spanner size: 20 mm

Halogen-free: Yes

Content: 50 pc(s)

RoHS-compliant: Yes

Ex Zoning: 1
2
21
22

Manufacturer part #: 10065057

Type: EMSKE 16 EMV-Z

Variants(All information include VAT, plus shipping costs)

Terminal Ø (max.)

Clamp Ø

Features

Material

External thread

Wiska 10010384 Cable gland shockproof, with seal M18 Brass (Ni-plated) Ecru 1 pc(s)

Item no:2476888

Available soon

Conrad Electronic

10.5 mm

8 mm

shockproof

Brass (Ni-plated)

M18

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Wiska 10010833 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476889

Available soon

Conrad Electronic

8.5 mm

7 mm

shockproof

Brass

M18

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010835 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476890

Available soon

Conrad Electronic

10.5 mm

8 mm

shockproof

Brass

M18

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010836 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476891

Available soon

Conrad Electronic

8.5 mm

7 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010837 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476892

Available soon

Conrad Electronic

10.5 mm

8 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010839 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476893

Available soon

Conrad Electronic

12.5 mm

10 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010840 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476894

Available soon

Conrad Electronic

14.5 mm

12 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010841 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476895

Available soon

Conrad Electronic

16.5 mm

14 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010842 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476896

Available soon

Conrad Electronic

17.5 mm

16 mm

shockproof

Brass

M24

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010843 Cable gland shockproof, with seal M30 Brass Ecru 1 pc(s)

Item no:2476897

Available soon

Conrad Electronic

18.5 mm

16 mm

shockproof

Brass

M30

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Documents & Downloads

Datasheet

Datasheet 2477663 Wiska 10065057 Cable gland shockproof, with strain relief, with seal M16 Brass (Ni-plated) Ecru 50 pc(s)

User & Safety Instructions

User & Safety Instructions 2477663 Wiska 10065057 Cable gland shockproof, with strain relief, with seal M16 Brass (Ni-plated) Ecru 50 pc(s)

Description

SPRINT® Ex-EMC brass cable gland for indoor and outdoor use.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by mounted O-ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals.
For EMC-compliant installation, the cable gland is equipped with an EMC cone.
Approved according to ATEX and IECEx.

This text is machine translated.
