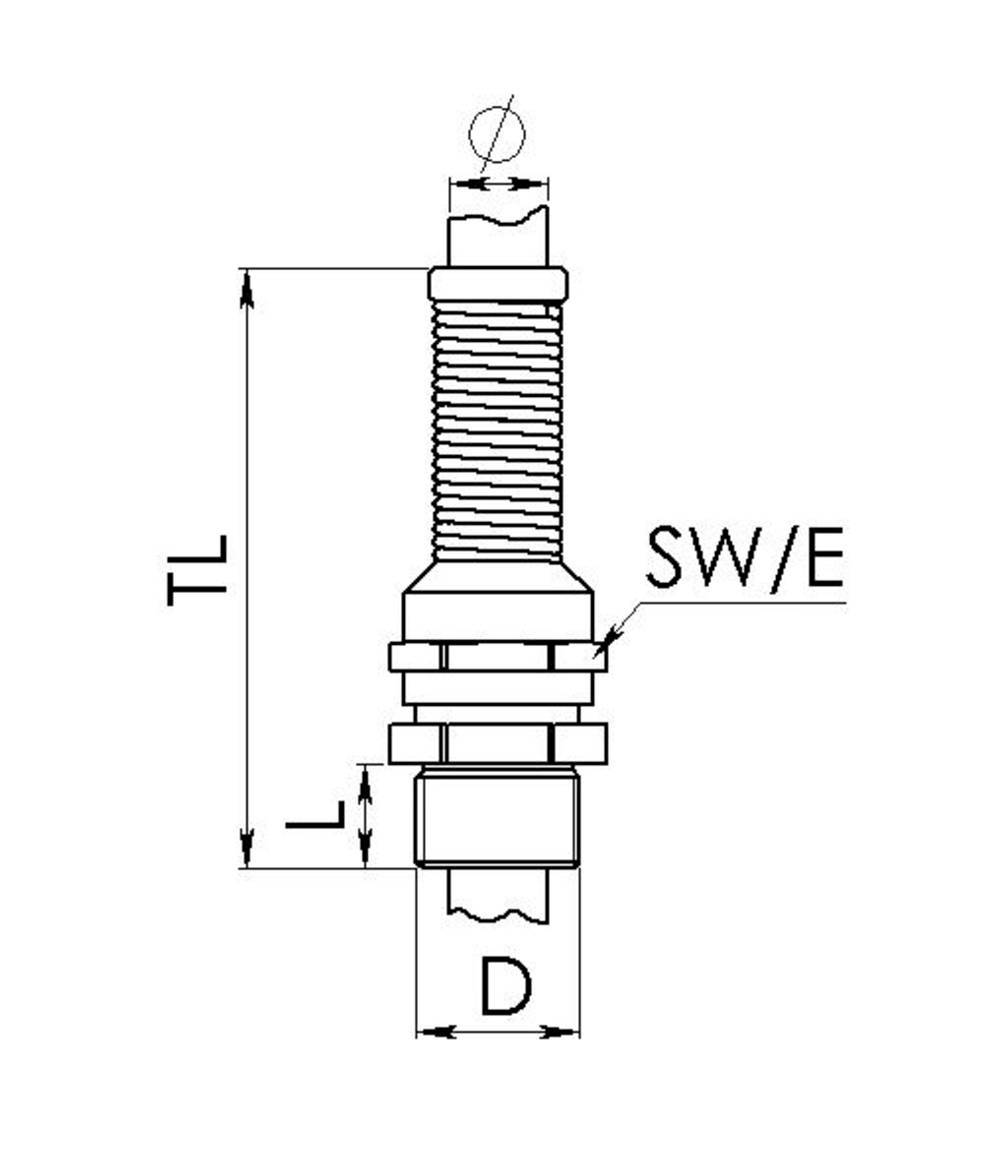

Stroke drawing/circuit diagram
Wiska 10065855 Cable gland shockproof, with strain relief, with seal M40 Brass (Ni-plated) Ecru 10 pc(s)
Product type
Cable gland
External thread
M40
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 85.50 / piece)
€ 855.00
incl. VAT
14-day return policy included
Highlights & Details
Brass cable screw connection with bending protection M40
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 51 mm
- Type of seal: Sealing ring
- Product type
Cable gland
- Features
shockproof
with strain relief
with seal
- Factory colour
Ecru
- External thread
M40
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
16 mm
- Terminal Ø (max.)
28 mm
- Thread length
15 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP68
- Spanner size
46 mm
- Halogen-free
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10065855
- Type
EMSKVS-L 40
Documents & Downloads
Datasheet
Datasheet 2477761 Wiska 10065855 Cable gland shockproof, with strain relief, with seal M40 Brass (Ni-plated) Ecru 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2477761 Wiska 10065855 Cable gland shockproof, with strain relief, with seal M40 Brass (Ni-plated) Ecru 10 pc(s)
Description
SPRINT® brass cable gland with anti-kink spiral for flexible, highly flexible cables, for indoor and outdoor use.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by mounted O-ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals.
A wide range of accessories is available within THE SPRINT® system for special applications.
This text is machine translated.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by mounted O-ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals.
A wide range of accessories is available within THE SPRINT® system for special applications.
This text is machine translated.
