Name: Wiska 10065877 Cable gland shockproof, with strain relief, with seal M32 Steel (stainless) Ecru 5 pc(s)
Brand: Wiska
SKU: 2477775
Availability: BackOrder

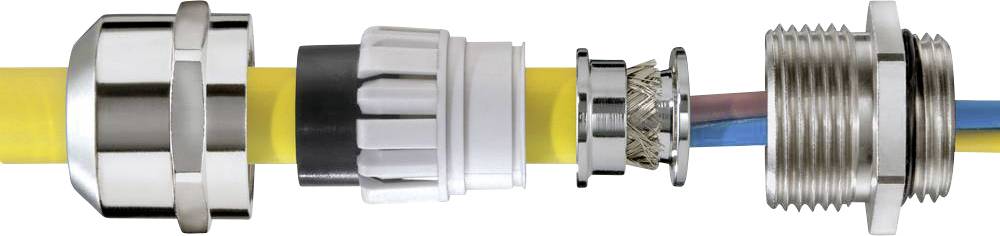

Several cable elements including screw connection and insulation, predominantly in metallic and white tones.

Technical drawing of a hexagonal screw connection with markings for thread diameter (D), spanner size (SW/E), and lengths (TL, L).

1/2

Product type

Cable gland

External thread

M32

Type

straight

Material

Steel (stainless)

Clamp Ø

13 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 99.00 / piece)

€ 495.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EMC stainless steel cable gland M32, LowTemp.

Our service for you

Technical specifications

Thread pitch 1.5 mm
Hexagonal corner dimensions 40 mm
Type of seal: Sealing ring
EMC design: Yes
Shielded: Yes

Product type: Cable gland

Features: shockproof
with strain relief
with seal

Factory colour: Ecru

External thread: M32

Type: straight

Material: Steel (stainless)

Clamp Ø: 13 mm

Terminal Ø (max.): 21 mm

Thread length: 8 mm

Min. temperature: -60 °C

Max. temperature: +100 °C

: IP68

Spanner size: 36 mm

Halogen-free: Yes

Content: 5 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 10065877

Type: ESSKV-4 32 LT EMV-Z

Variants(All information include VAT, plus shipping costs)

Clamp Ø

External thread

Features

Material

Terminal Ø (max.)

Wiska 10010384 Cable gland shockproof, with seal M18 Brass (Ni-plated) Ecru 1 pc(s)

Item no:2476888

Available soon

Conrad Electronic

8 mm

M18

shockproof

Brass (Ni-plated)

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Wiska 10010833 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476889

Available soon

Conrad Electronic

7 mm

M18

shockproof

Brass

8.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010835 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476890

Available soon

Conrad Electronic

8 mm

M18

shockproof

Brass

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010836 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476891

Available soon

Conrad Electronic

7 mm

M24

shockproof

Brass

8.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010837 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476892

Available soon

Conrad Electronic

8 mm

M24

shockproof

Brass

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010839 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476893

Available soon

Conrad Electronic

10 mm

M24

shockproof

Brass

12.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010840 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476894

Available soon

Conrad Electronic

12 mm

M24

shockproof

Brass

14.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010841 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476895

Available soon

Conrad Electronic

14 mm

M24

shockproof

Brass

16.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010842 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476896

Available soon

Conrad Electronic

16 mm

M24

shockproof

Brass

17.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010843 Cable gland shockproof, with seal M30 Brass Ecru 1 pc(s)

Item no:2476897

Available soon

Conrad Electronic

16 mm

M30

shockproof

Brass

18.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Documents & Downloads

Datasheet

Datasheet 2477775 Wiska 10065877 Cable gland shockproof, with strain relief, with seal M32 Steel (stainless) Ecru 5 pc(s)

User & Safety Instructions

User & Safety Instructions 2477775 Wiska 10065877 Cable gland shockproof, with strain relief, with seal M32 Steel (stainless) Ecru 5 pc(s)

Description

SPRINT® EMC stainless steel cable gland for indoor and outdoor use.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by mounted O-ring. All seals are made of silicone and are characterized by excellent resistance against water, ozone, UV radiation as well as low temperatures and chemicals.
For EMC-compliant installation, the cable gland is equipped with an EMC cone.
For special applications, a wide range of accessories is available within THE SPRINT system.

This text is machine translated.
