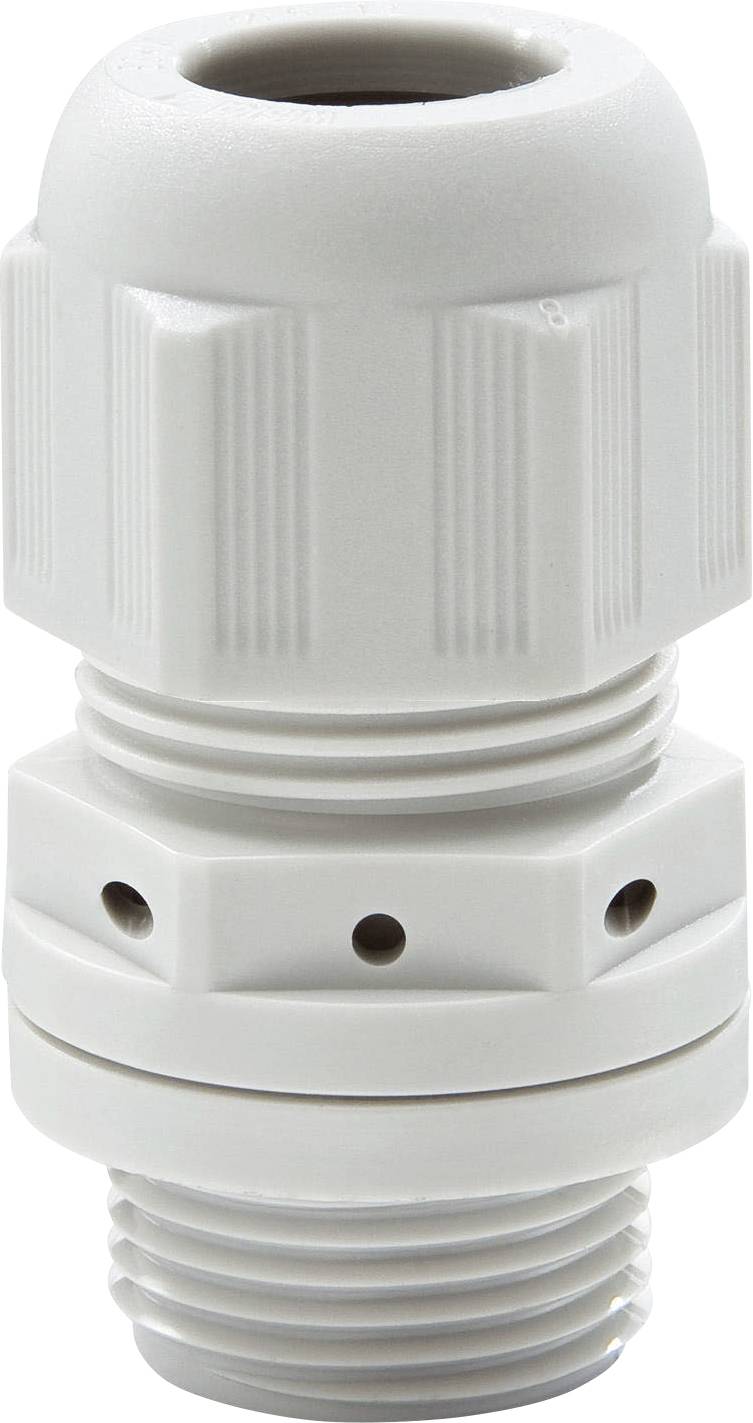

Wiska 10102471 Cable gland shockproof, with strain relief, with seal M40 Polyamide Grey-white (RAL 7035) 1 pc(s)
Product type
Cable gland
External thread
M40
Type
straight
Material
Polyamide
Clamp Ø
16 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 51.99 / piece)
€ 51.99
incl. VAT
14-day return policy included
Technical specifications
- Thread pitch 1.5 mm
- Type of seal: Sealing ring
- Product type
Cable gland
- Features
shockproof
with strain relief
with seal
- Factory colour
Grey-white (RAL 7035)
- External thread
M40
- Type
straight
- Material
Polyamide
- Clamp Ø
16 mm
- Terminal Ø (max.)
28 mm
- Thread length
12 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP68
- Spanner size
46 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10102471
- Type
ESVG 40
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2478035 Wiska 10102471 Cable gland shockproof, with strain relief, with seal M40 Polyamide Grey-white (RAL 7035) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2478035 Wiska 10102471 Cable gland shockproof, with strain relief, with seal M40 Polyamide Grey-white (RAL 7035) 1 pc(s)
Description
A microporous, liquid-tight and breathable ePTFE membrane is integrated into the breathing VentGLAND® cable gland.
Despite water permeability, a membrane is able to exchange air and thus avoid the difference in pressure between the inside of the housing and the environment. The cause of condensation is thus eliminated.
The patented product is cable gland and pressure compensation in one.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by additional EPDM O-ring.
Available in various sizes and materials.
This text is machine translated.
Despite water permeability, a membrane is able to exchange air and thus avoid the difference in pressure between the inside of the housing and the environment. The cause of condensation is thus eliminated.
The patented product is cable gland and pressure compensation in one.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by additional EPDM O-ring.
Available in various sizes and materials.
This text is machine translated.
