Name: Wiska 10103503 Cable gland shockproof, with bend relief, for ribbon cables, with strain relief, with seal M12 Polyamide
Brand: Wiska
SKU: 2478132
Availability: BackOrder

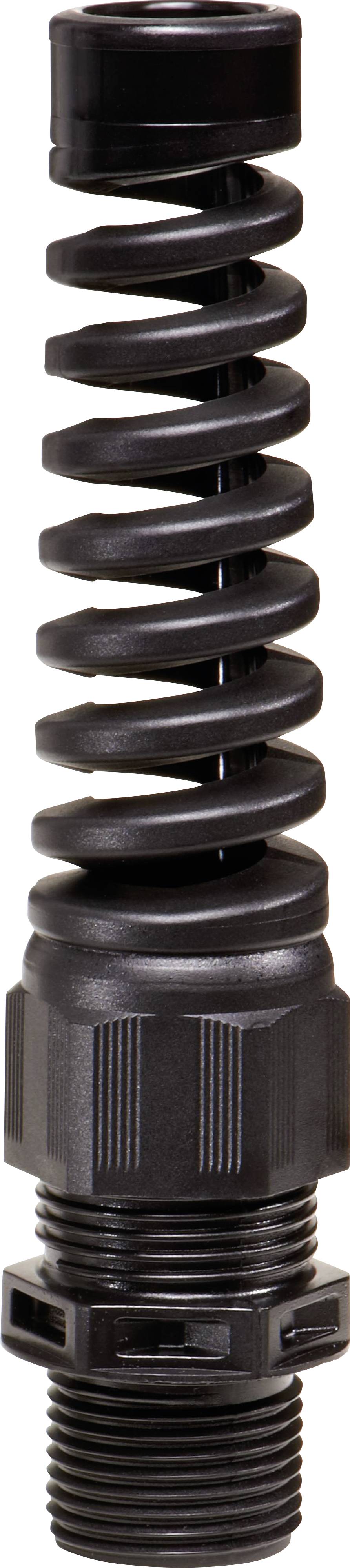

Black-painted technical component with a spiral spring and thread, vertically aligned, with no visible functional details.

Technical drawing of a spark plug with dimensional specifications: TL, L, D, SW/E. The drawing shows detailed mechanical components and dimensions.

1/2

Product type

Cable gland

External thread

M12

Type

straight

Material

Polyamide

Clamp Ø

3 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 6.50 / piece)

€ 365.76

-11 %

€ 325.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

EX M12 anti-kink cable gland

Our service for you

Technical specifications

Thread pitch 1.5 mm
Hexagonal corner dimensions 18 mm
Type of seal: Sealing ring

Product type: Cable gland

Features: shockproof
with bend relief
for ribbon cables
with strain relief
with seal

Factory colour: Black (RAL 9005)

External thread: M12

Type: straight

Material: Polyamide

Clamp Ø: 3 mm

Terminal Ø (max.): 6 mm

Thread length: 15 mm

Min. temperature: -40 °C

Max. temperature: +75 °C

: IP68

Spanner size: 16 mm

Halogen-free: Yes

Content: 50 pc(s)

RoHS-compliant: Yes

Ex Zoning: 1
2
21
22

Manufacturer part #: 10103503

Type: ESKE/1S-L-e 12

Variants(All information include VAT, plus shipping costs)

Clamp Ø

External thread

Features

Material

Terminal Ø (max.)

Wiska 10010384 Cable gland shockproof, with seal M18 Brass (Ni-plated) Ecru 1 pc(s)

Item no:2476888

Available soon

Conrad Electronic

8 mm

M18

shockproof

Brass (Ni-plated)

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Wiska 10010833 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476889

Available soon

Conrad Electronic

7 mm

M18

shockproof

Brass

8.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010835 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)

Item no:2476890

Available soon

Conrad Electronic

8 mm

M18

shockproof

Brass

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Wiska 10010836 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476891

Available soon

Conrad Electronic

7 mm

M24

shockproof

Brass

8.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010837 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476892

Available soon

Conrad Electronic

8 mm

M24

shockproof

Brass

10.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010839 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476893

Available soon

Conrad Electronic

10 mm

M24

shockproof

Brass

12.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010840 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476894

Available soon

Conrad Electronic

12 mm

M24

shockproof

Brass

14.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010841 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476895

Available soon

Conrad Electronic

14 mm

M24

shockproof

Brass

16.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010842 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)

Item no:2476896

Available soon

Conrad Electronic

16 mm

M24

shockproof

Brass

17.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Wiska 10010843 Cable gland shockproof, with seal M30 Brass Ecru 1 pc(s)

Item no:2476897

Available soon

Conrad Electronic

16 mm

M30

shockproof

Brass

18.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Documents & Downloads

Datasheet

Datasheet 2478132 Wiska 10103503 Cable gland shockproof, with bend relief, for ribbon cables, with strain relief, with seal M12 Polyamide

User & Safety Instructions

User & Safety Instructions 2478132 Wiska 10103503 Cable gland shockproof, with bend relief, for ribbon cables, with strain relief, with seal M12 Polyamide

Description

SPRINT® Ex cable gland with bend protection spiral made of high-quality polyamide 6.6 for indoor and outdoor use.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing with a connection thread sealing ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overturning of the cap nut.
Approved according to IEC EX and ATEX.
