Wiska 10110776 Elbow union M20 Polyamide Grey-white (RAL 7035) 10 pc(s)
Product type
Elbow union
External thread
M20
Type
90° angle
Material
Polyamide
Factory colour
Grey-white (RAL 7035)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

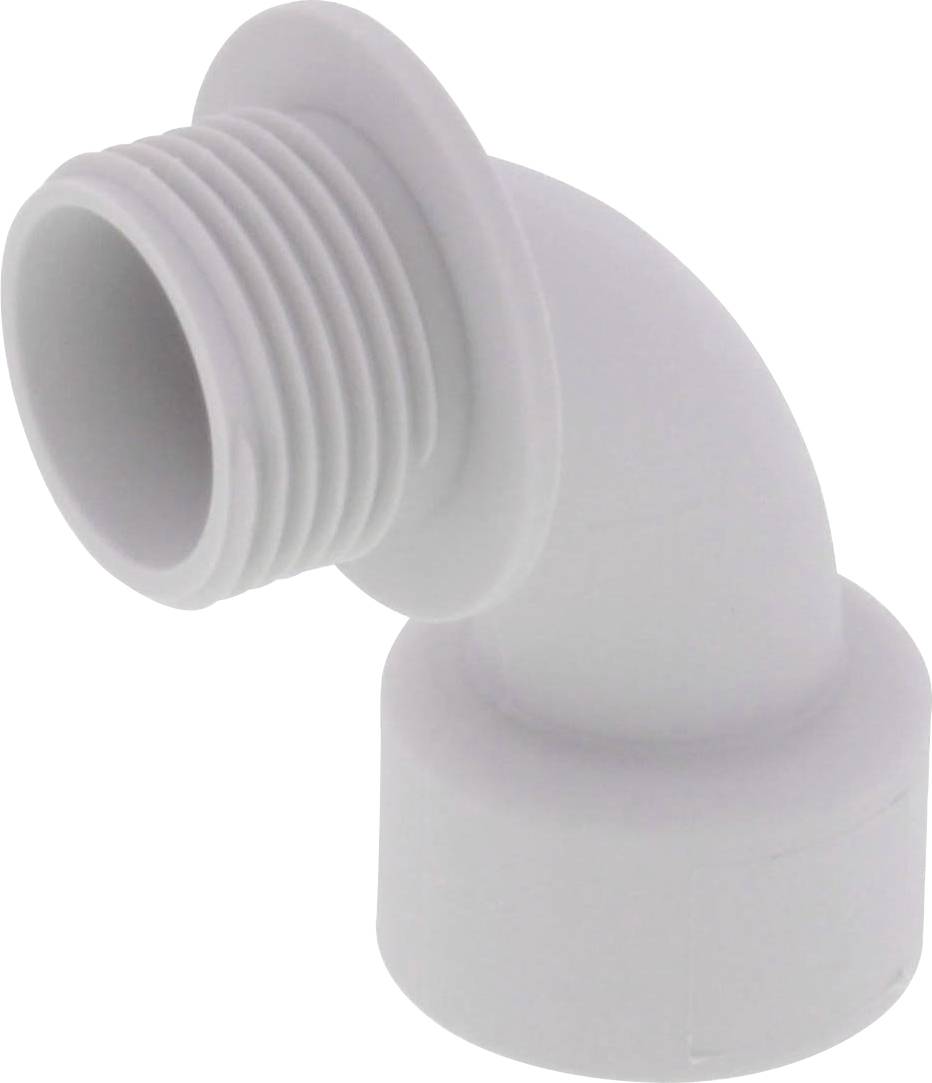

Plastic angle 90° M20
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Product type
Elbow union
- Factory colour
Grey-white (RAL 7035)
- External thread
M20
- Type
90° angle
- Material
Polyamide
- Thread length
12 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Halogen-free
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10110776
- Type
EWI90 20 LG
Documents & Downloads
Datasheet
Datasheet 2478581 Wiska 10110776 Elbow union M20 Polyamide Grey-white (RAL 7035) 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2478581 Wiska 10110776 Elbow union M20 Polyamide Grey-white (RAL 7035) 10 pc(s)
Description
The angle allows cables to be routed around corners of up to 90° safely.
