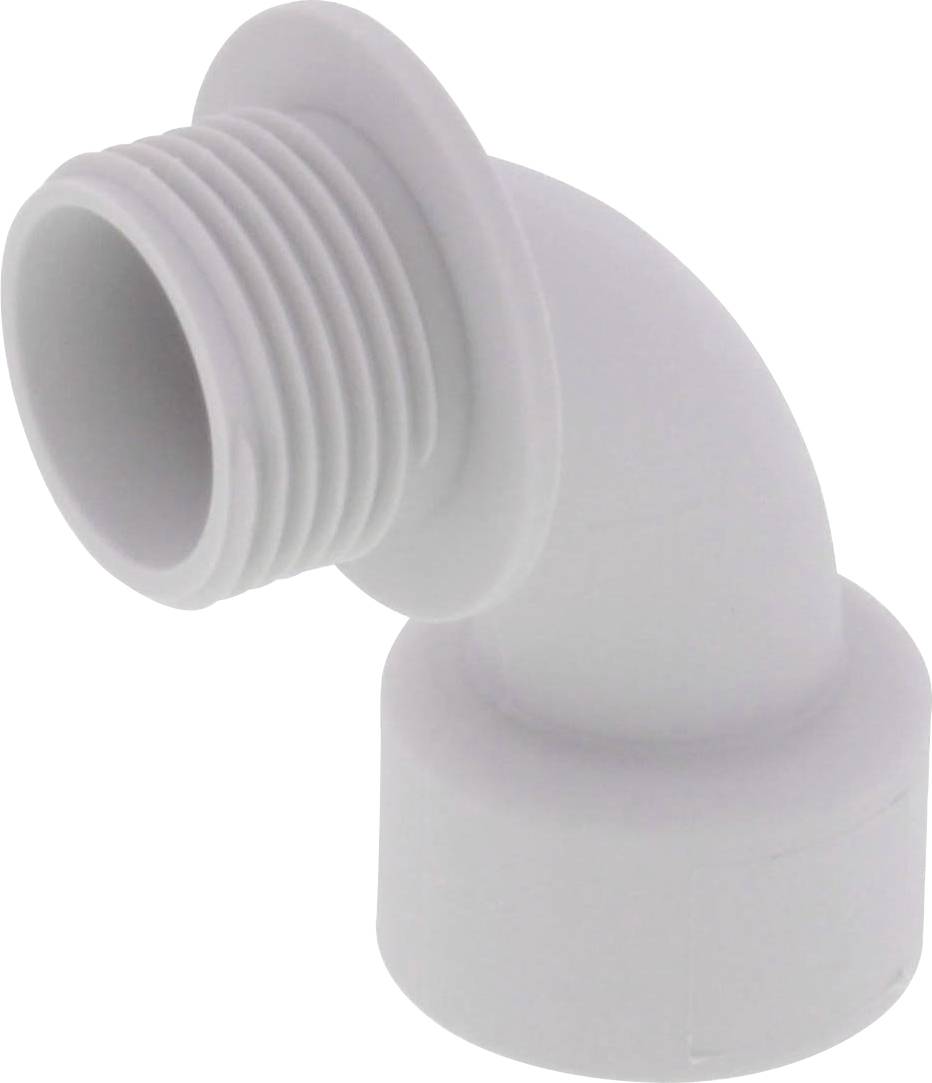

Wiska 10110780 Elbow union M50 Polyamide Grey-white (RAL 7035) 5 pc(s)
EAN:
Part number:
Item no:
Product type
Elbow union
External thread
M50
Type
90° angle
Material
Polyamide
Factory colour
Grey-white (RAL 7035)
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 7.39 / piece)
€ 36.97
plus VAT.
Highlights & Details
Plastic angle 90° M50
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Product type
Elbow union
- Factory colour
Grey-white (RAL 7035)
- External thread
M50
- Type
90° angle
- Material
Polyamide
- Thread length
16 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Halogen-free
Yes
- Content
5 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10110780
- Type
EWI90 50 LG
Documents & Downloads
Datasheet
Datasheet 2478585 Wiska 10110780 Elbow union M50 Polyamide Grey-white (RAL 7035) 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2478585 Wiska 10110780 Elbow union M50 Polyamide Grey-white (RAL 7035) 5 pc(s)
Description
The angle allows cables to be routed around corners of up to 90° safely.
