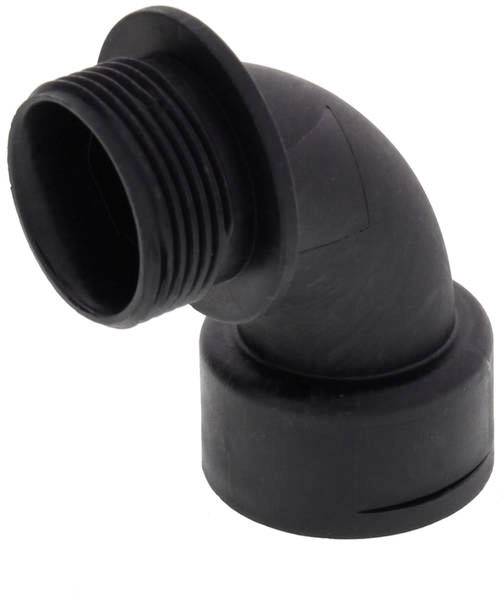

Wiska 10110782 Elbow union M12 Polyamide Black (RAL 9005) 10 pc(s)
Product type
Elbow union
External thread
M12
Type
90° angle
Material
Polyamide
Factory colour
Black (RAL 9005)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 22.99 / piece)
€ 22.99
incl. VAT
14-day return policy included
Highlights & Details
Plastic angle 90° M12
Our service for you
Technical specifications
- Thread pitch 1.5 mm
- Product type
Elbow union
- Factory colour
Black (RAL 9005)
- External thread
M12
- Type
90° angle
- Material
Polyamide
- Thread length
9 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Halogen-free
Yes
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10110782
- Type
EWI90 12 BK
Documents & Downloads
Datasheet
Datasheet 2478587 Wiska 10110782 Elbow union M12 Polyamide Black (RAL 9005) 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2478587 Wiska 10110782 Elbow union M12 Polyamide Black (RAL 9005) 10 pc(s)
Description
The angle allows cables to be routed around corners of up to 90° safely.
This text is machine translated.
This text is machine translated.
