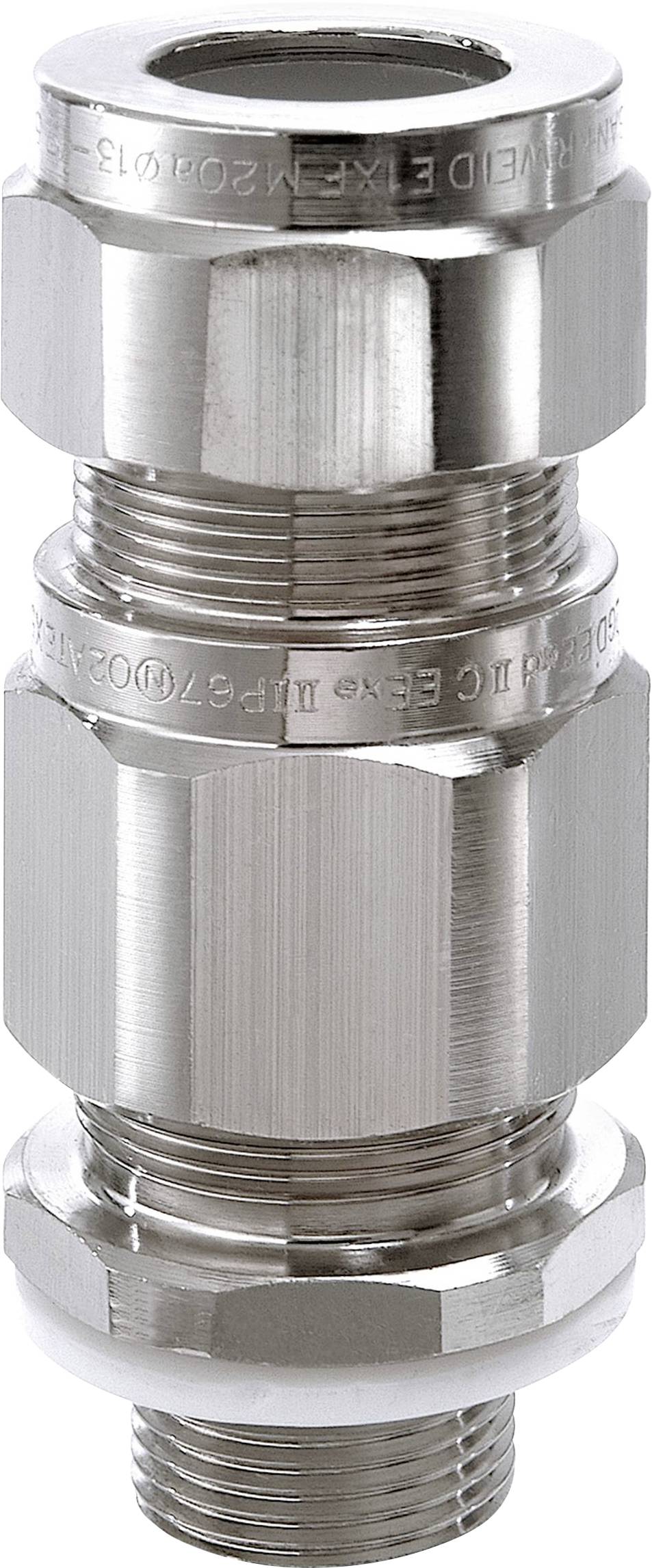

Wiska 50107580 Cable gland shockproof, with locknut, with seal M20 Brass (Ni-plated) Ecru 1 pc(s)
Product type
Cable gland
External thread
M20
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
12 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 31.99 / piece)
€ 31.99
incl. VAT
14-day return policy included
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 33 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with locknut
with seal
- Factory colour
Ecru
- External thread
M20
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
12 mm
- Terminal Ø (max.)
21 mm
- Thread length
15 mm
- Min. temperature
-60 °C
- Max. temperature
+110 °C
IP67
- Spanner size
31 mm
- Halogen-free
No
- Content
1 pc(s)
- RoHS-compliant
Yes
- Ex Zoning
1
2
21
22
- Manufacturer part #
50107580
- Type
OS-E1UF 20 / M20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2478613 Wiska 50107580 Cable gland shockproof, with locknut, with seal M20 Brass (Ni-plated) Ecru 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2478613 Wiska 50107580 Cable gland shockproof, with locknut, with seal M20 Brass (Ni-plated) Ecru 1 pc(s)
Description
Brass cable gland for shielded cables. Double sealing on the inner and outer sheath of the cable. Approved according to ATEX and IECEx.
