XYZprinting da Vinci Junior Pro X+ 3D printer

Red electronic device with a black display. Symbols at the top: Water flow, pressure, flow meter, Wi-Fi. Buttons and display at the bottom.

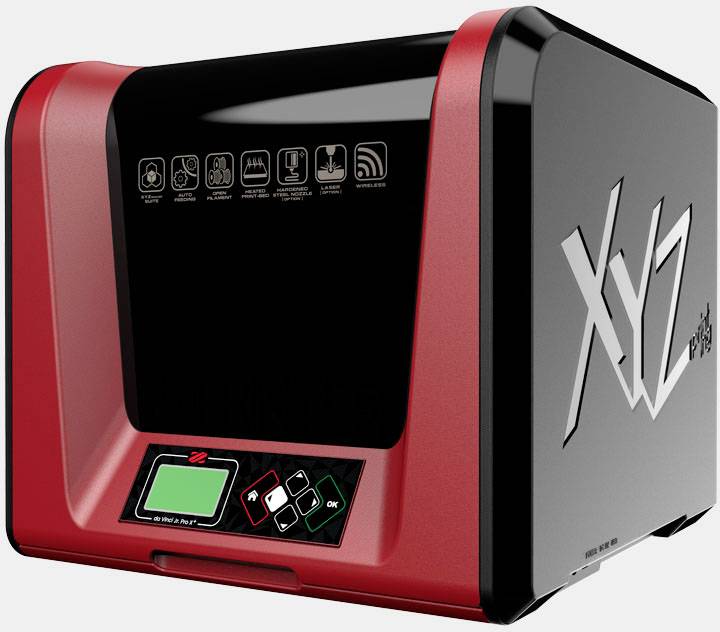

A 3D printer with a black and red casing, displaying control elements on the front panel and the lettering 'XYZ' on the side.

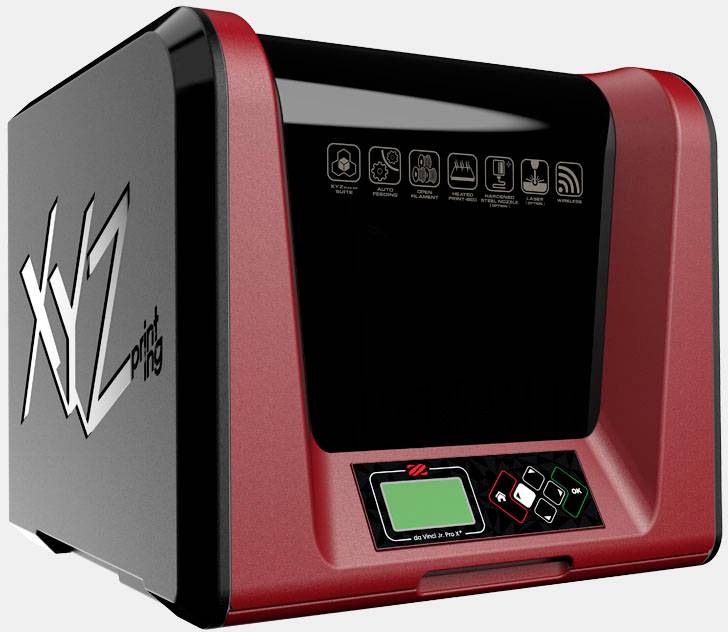

A black and red 3D printer with 'XYZ Printing' written on it and several symbols on the front.
1/3
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 445.00 / piece)
€ 445.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

XYZPrinting da Vinci Jrunior WiFi Pro X+

  • Optional stainless steel nozzle for a wider range of materials
  • Built-in WLAN
  • Automatic 9-point calibration for high-quality prints

Technical specifications

  • Engraving range 150 mm x 150 mm
  • Laser output 350 mW ± 10％
  • Laser wavelength 450 nm + 5nm/-10nm InGaN
  • Laser software: XYZengraver
  • Print mode: Super fine 0.02 mm (20 µm), fine 0.1 mm (100 µm), standard 0.2 mm (200 µm), fast 0.3 mm (300 µm), ultra fast 0.4 mm (400 µm)
  • Display 2.6” (6.6 cm) FSTN LCM
  • File types: .stl , XYZ format (.3w, .nkg), Windows (.3mf), gcode, .jpg, .png, .gif, .bmp
Product type

3D printer

Printing technology

Fused deposition modeling (FDM)

Supported printing supplies

PLA

Tough PLA

PETG

Max. printing width (X)

175 mm

Max. printing height (Y)

175 mm

Printing depth (Z) max.

175 mm

Printing pad features

Heatable

Printing height (Z)

150 mm - 200 mm

Extruder type

Single

Suitable for filament Ø

1.75 mm

Range of uses (3D printers)

Hobby

Nozzle Ø

0.4 mm

Printed layer thickness (min.)

0.01 mm

Printed layer thickness (max.)

0.4 mm

SD card slot

Yes

Interfaces

SD

USB

Wi-Fi

Software

XYZware

Factory colour

Wine red

Width

420 mm

Height

430 mm

Depth

380 mm

Weight

15 kg

Operating voltage

230 V

Dim

(W x H x D) 420 x 430 x 380 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2233489 XYZprinting da Vinci Junior Pro X+ 3D printer

Description

The da Vinci Jrunior WiFi Pro X+ fits comfortably on your desk or workbench and enables prints up to 150 x 150 x 150 mm in size. At a film resolution of 0.02 - 0.4 mm, the printer delivers consistent and high-quality prints. Choose from a variety of filaments, such as PLA, PETG, Tough PLA or metallic PLA, and optimize your print settings for your material in the XYZmaker. Print directly from your SD-card also G-code of other Slicer wzb. Cura or Sli3cr. Design your 3D model with XYZmaker Mobile on your tablet or Chromebook and send it wirelessly to your da Vinci over your home network.

This text is machine translated.

Scope of delivery

  • Da Vinci Jrunior Wi-Fi Pro X+
  • Filament spool
  • Filament holder
  • Filament guide
  • 3x Print bed coating
  • SD card
  • Power supply unit
  • USB cable
  • Scraper
  • Cleaning brush
  • Different cleaning wires
  • User manual

System requirements

  • Windows 7 and later (for PC)
    Mac OS X 10.10 and later (for Mac)
    Android 5.0 and higher
    IOS 9 and later (iPad only)
