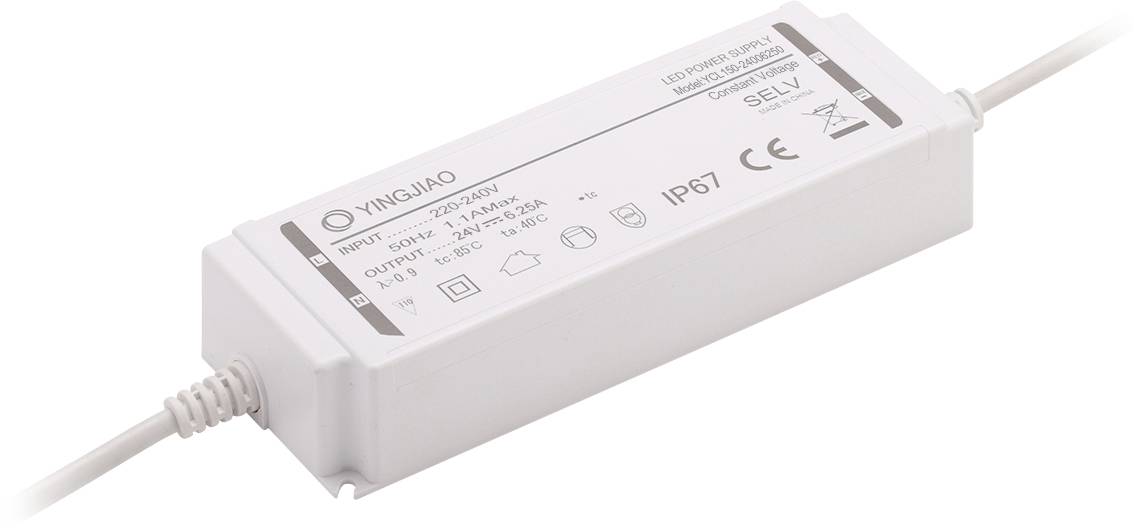

YingJiao YCL150-24008330 LED driver 200 W 8.33 A 24 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YCL150-200W LED-SNT IP67 Plasti
- 24 V
- 8.33 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 191 mm x 37 mm
- Output voltage (max.)
24 V
- Operating voltage
230 V
- Protection class
IP67
- Connection
Braid
- Max. power
200 W
- No. of outputs
1 x
- Output current (min.)
8.33 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
200 W (max)
- Width
37 mm
- Length
191 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
92 %
Documents & Downloads
Datasheet
Datasheet 3435653 YingJiao YCL150-24008330 LED driver 200 W 8.33 A 24 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435653 YingJiao YCL150-24008330 LED driver 200 W 8.33 A 24 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
