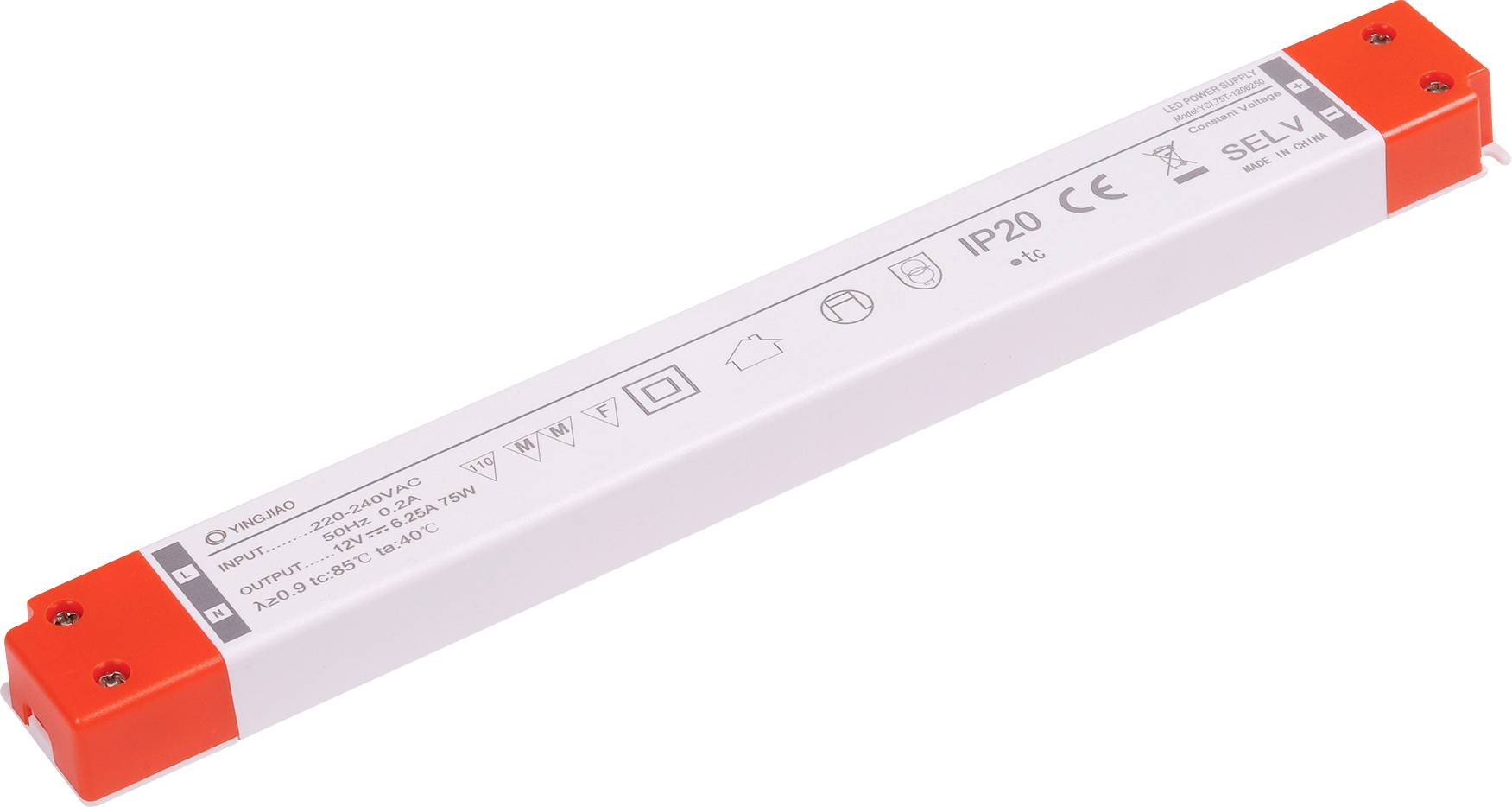

YingJiao YSL75T-1206250 LED driver 75 W 6.25 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
YSL75T-1206250
- 12 V
- 6.25 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 305 mm x 30 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
75 W
- No. of outputs
1 x
- Output current (min.)
6.25 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
75 W (max)
- Width
30 mm
- Length
305 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
Datasheet
Datasheet 3435687 YingJiao YSL75T-1206250 LED driver 75 W 6.25 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435687 YingJiao YSL75T-1206250 LED driver 75 W 6.25 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
