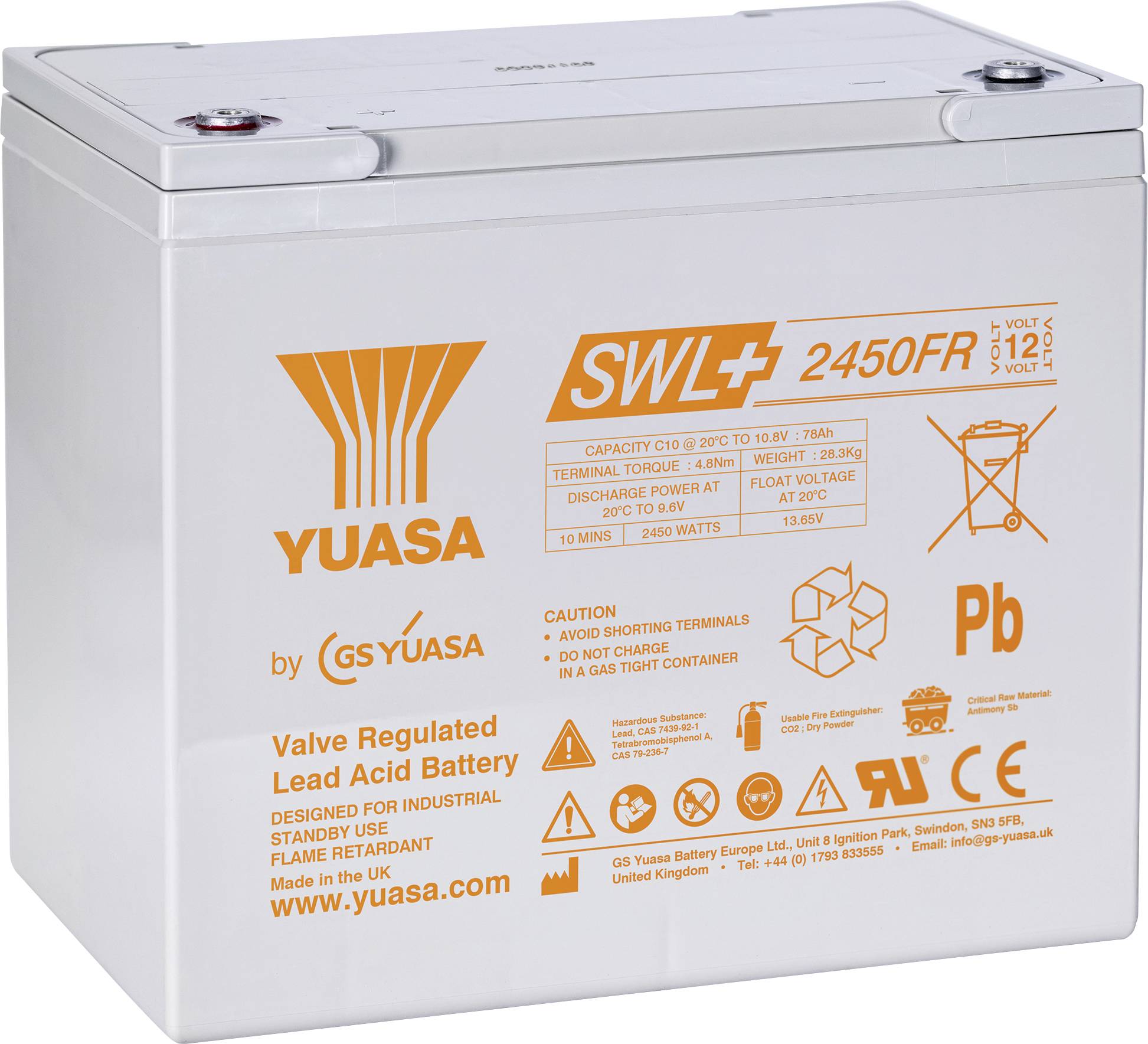

Yuasa SWL+2450FR VRLA AGM 80 Ah 12 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Yuasa SWL+2450FR industrial high-current VRLA battery
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
Technical specifications
- Length: 261 mm (±3 mm), width: 168 mm (±2 mm)
- Life period: EUROBAT 'Very Long Life' class (12+ years)
- Yuasa design durability: Up to 15 years at 20°C.
- Maximum discharge current: 800 A (for 1 second), 400 A (for 1 minute)
- Torque: 4.8 Nm
- Housing material: ABS (flame retardant according to UL94:V0 for the FR version)
- Constant power discharge rate: 2450 watts per Block (10 min. Up to 9.6 V/cell)
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
80 Ah
- Height
224.5 mm
- Weight
28.3 kg
- Content
1 pc(s)
- Type
SWL+2450FR
- Rechargeable
Yes
- Connector
M6 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729228 Yuasa SWL+2450FR VRLA AGM 80 Ah 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729228 Yuasa SWL+2450FR VRLA AGM 80 Ah 12 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Yuasa SBL+2450FR
