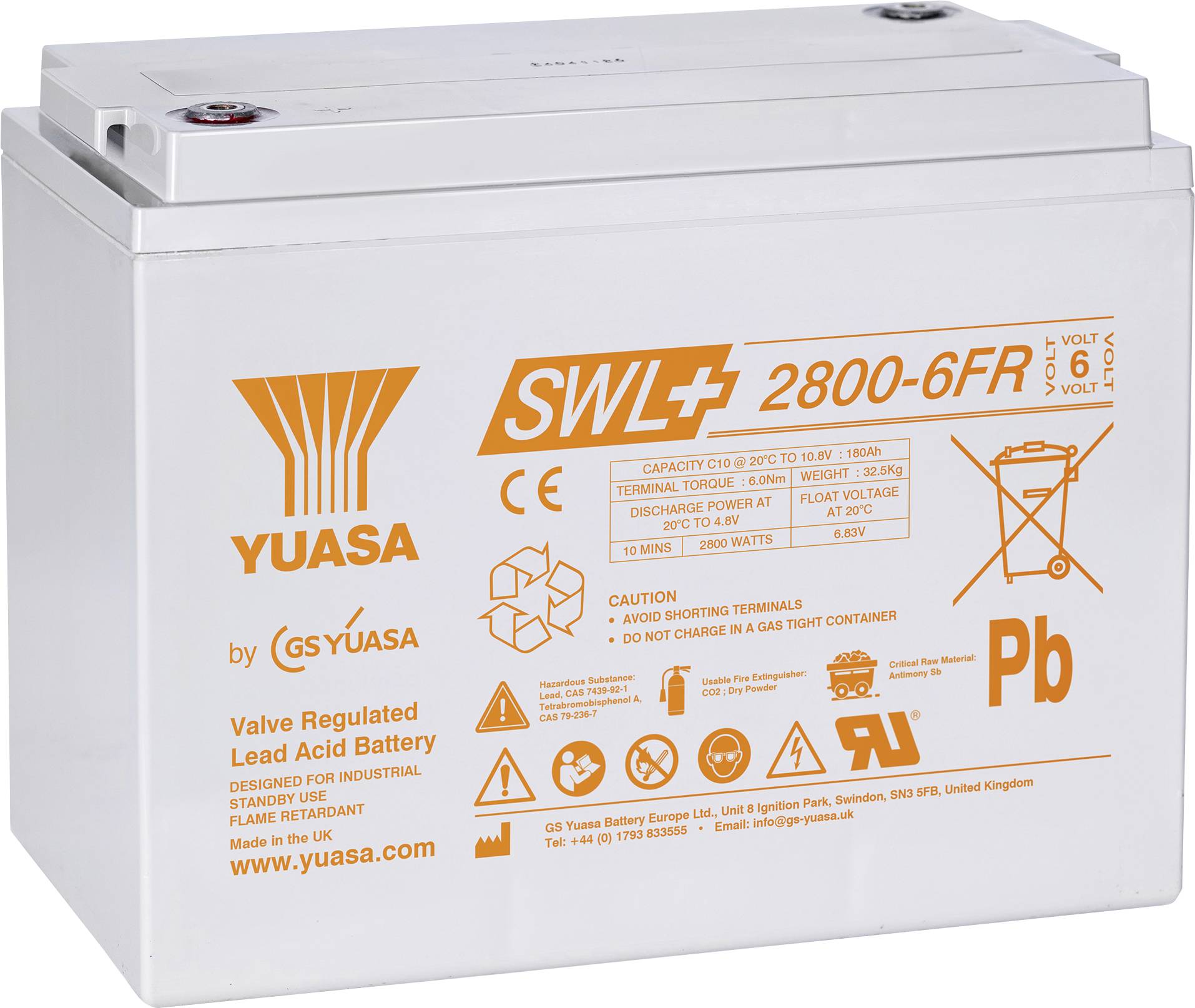

Yuasa SWL+2800-6FR VRLA AGM 180 Ah 6 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Yuasa SWL+2800-6FR industrial VRLA high power battery
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
Technical specifications
- Length: 297 mm (±3 mm), width: 168 mm (±2 mm)
- Life period: EUROBAT 'Very Long Life' class (12+ years)
- Yuasa service life: Up to 15 years at 20°C.
- Maximum discharge current: 1500 A (1 second), 800 A (1 minute)
- Housing material: Flame retardant according to UL94:V0 (FR version)
- Constant power discharge rate: 2800 watts per Block (10 min. Up to 9.6 V/cell at 20°C)
- Product type
VRLA
- Technology
AGM
- Voltage
6 V
- Capacity (mAh, Ah)
180 Ah
- Height
231.5 mm
- Weight
32.5 kg
- Content
1 pc(s)
- Type
SWL+2800-6FR
- Rechargeable
Yes
- Connector
M8 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729230 Yuasa SWL+2800-6FR VRLA AGM 180 Ah 6 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729230 Yuasa SWL+2800-6FR VRLA AGM 180 Ah 6 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level
This text is machine translated.
This text is machine translated.
Scope of delivery
- Yuasa SWL+2800-6FR
