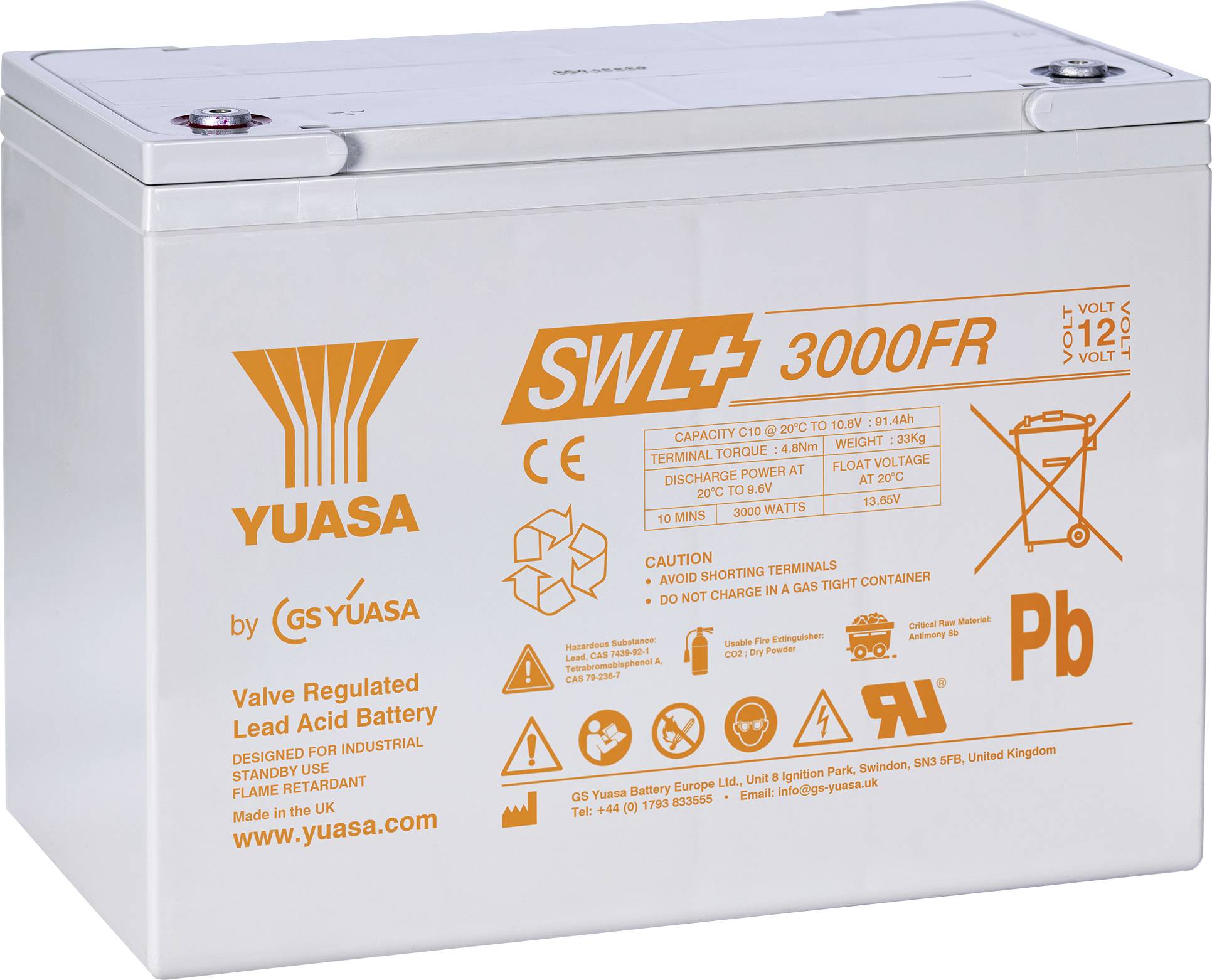

Yuasa SWL+3000FR VRLA AGM 93.6 Ah 12 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Yuasa SWL+3000FR VRLA AGM 93.6 Ah 12 V 1 pc(s)
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
Technical specifications
- Length: 305 mm (±3 mm), width: 168 mm (±2 mm)
- Life period: EUROBAT 'Very Long Life' class (12+ years)
- Yuasa service life: Up to 15 years at 20°C.
- Housing material: Flame retardant according to UL94:V0 (FR version)
- Torque: 4.8 Nm
- Maximum discharge current: 1000 A (1 second), 500 A (1 minute)
- Constant power discharge rate: 3000 watts per Block (10 min. Up to 9.6 V/cell)
- Installation: Can be operated in directions up to 90° from the upright position
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
93.6 Ah
- Height
224.5 mm
- Weight
33 kg
- Content
1 pc(s)
- Type
SWL+3000FR
- Rechargeable
Yes
- Connector
M6 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729233 Yuasa SWL+3000FR VRLA AGM 93.6 Ah 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729233 Yuasa SWL+3000FR VRLA AGM 93.6 Ah 12 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Yuasa SWL+3000FR
