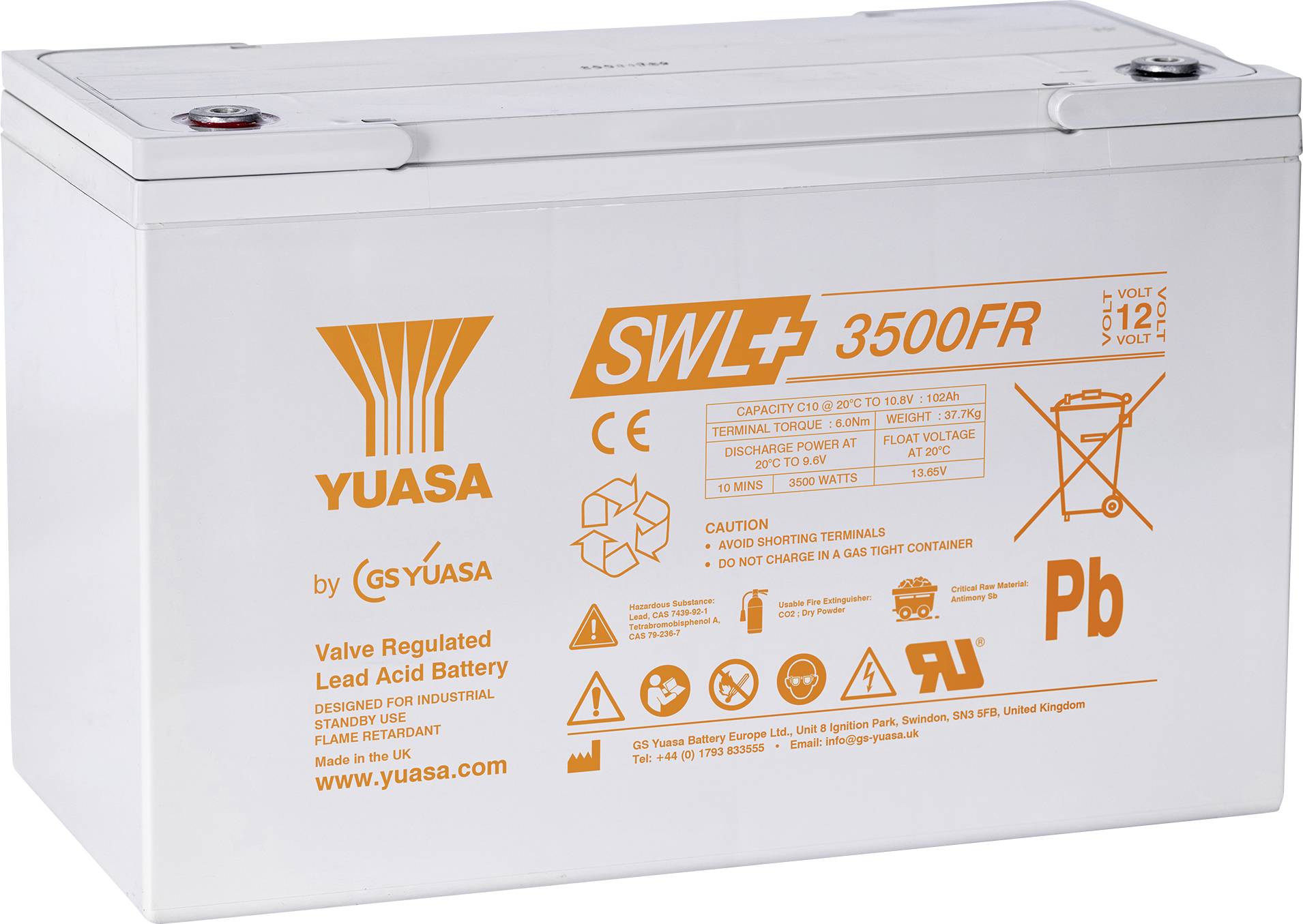

Yuasa SWL+3500FR VRLA AGM 110.2 Ah 12 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Yuasa SWL+3500FR industrial high-current VRLA battery
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
Technical specifications
- Length: 350 mm (±3 mm), width: 168 mm (±2 mm)
- Life period: EUROBAT 'Very Long Life' class (12+ years)
- Yuasa design durability: Up to 15 years at 20°C.
- Maximum discharge current: 1100 A (for 1 second), 550 A (for 1 minute)
- Tightening torque 6 Nm
- Housing material: Flame retardant according to UL94:V0 (FR version)
- Constant power discharge rate: 3500 watts per Block (10 min. Up to 9.6 V/cell at 20°C)
- Installation: Operation in directions up to 90° from the upright position possible
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
110.2 Ah
- Height
225 mm
- Weight
37.7 kg
- Content
1 pc(s)
- Type
SWL+3500FR
- Rechargeable
Yes
- Connector
M8 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729235 Yuasa SWL+3500FR VRLA AGM 110.2 Ah 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729235 Yuasa SWL+3500FR VRLA AGM 110.2 Ah 12 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
This text is machine translated.
This text is machine translated.
Features
- Yuasa SWL+3500FR
