Yuasa SWL+4300 VRLA AGM 140 Ah 12 V 1 pc(s)
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

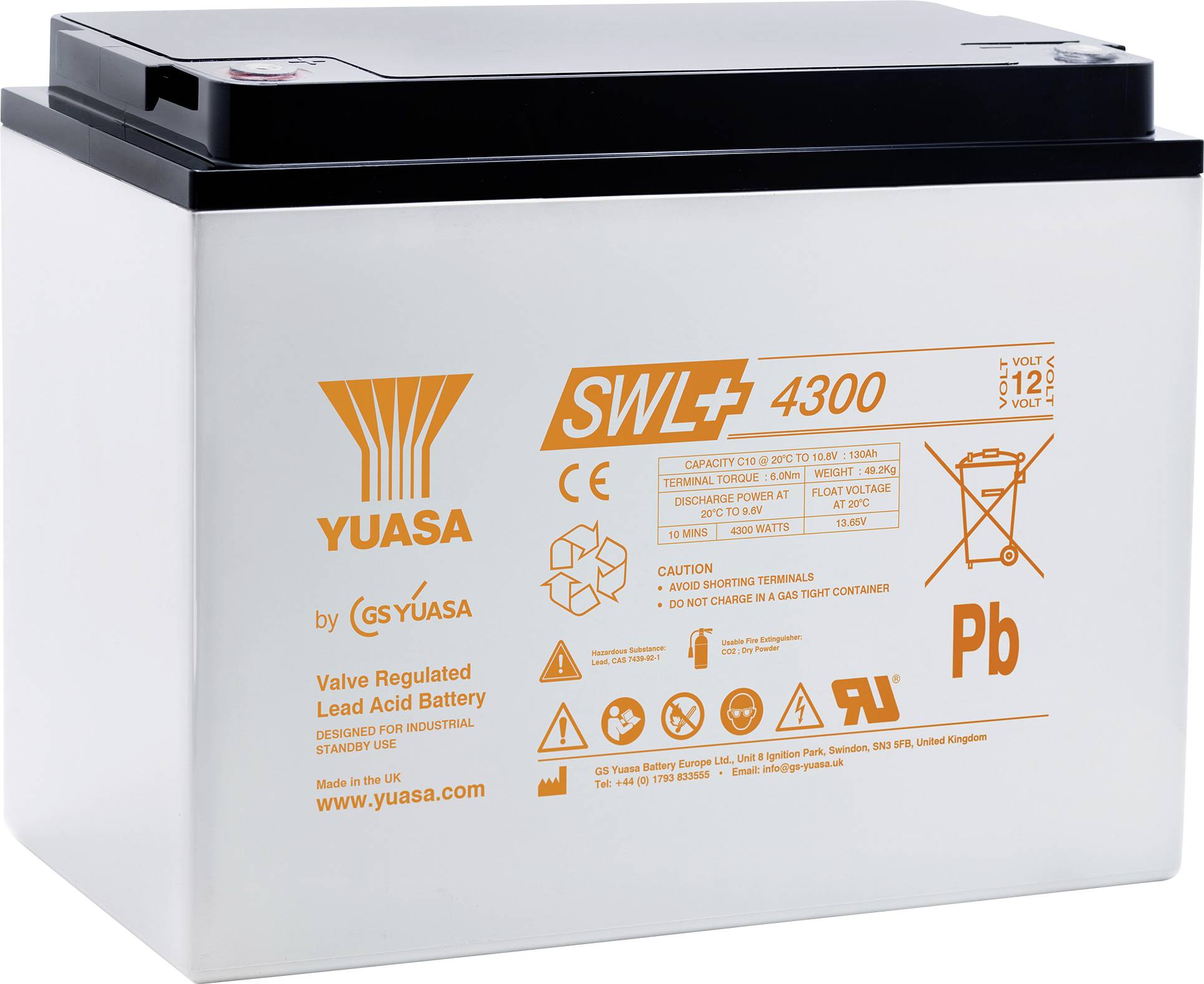

Yuasa SWL+4300 industrial high-current VRLA battery
- Extended life span and EUROBAT classification: 15 years life at 20°C.
- Improved performance at high discharge rates
- Hybrid pure lead technology
- HT Element X Alloy Technology
- Sustainable design and production
- Certified safety, performance and durability
- Practical emergency power supply
- Fully compatible with existing SWL solutions
- Excellent recovery after deep discharge
- Versatile orientation
Technical specifications
- Length: 350 mm (±3 mm), width: 173 mm (±2 mm)
- Life period: EUROBAT 'Very Long Life' class (12+ years)
- Yuasa service life: Up to 15 years at 20°C.
- Maximum discharge current: 1200 A (1 second), 600 A (1 minute)
- Constant power discharge rate: 4300 watts per Block (10 min. Up to 9.6 V/cell at 20°C)
- Housing material ABS (UL94:HB standard)
- Installation: Operation in directions up to 90° from the upright position possible
- Product type
VRLA
- Technology
AGM
- Voltage
12 V
- Capacity (mAh, Ah)
140 Ah
- Height
272 mm
- Weight
49.2 kg
- Content
1 pc(s)
- Type
SWL+4300
- Rechargeable
Yes
- Connector
M8 connector
- Voltage
1.2 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3729238 Yuasa SWL+4300 VRLA AGM 140 Ah 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3729238 Yuasa SWL+4300 VRLA AGM 140 Ah 12 V 1 pc(s)
Description
The Yuasa SWL+ series builds on the proven performance of the well-known SWL series and maintains the robust design you already trust - now extended by advanced innovations, which redefine reliability, durability and performance. The SWL+ was developed for critical standby applications and high discharge rates and raises the bar in industrial battery technology to the next level.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Yuasa SWL+4300
