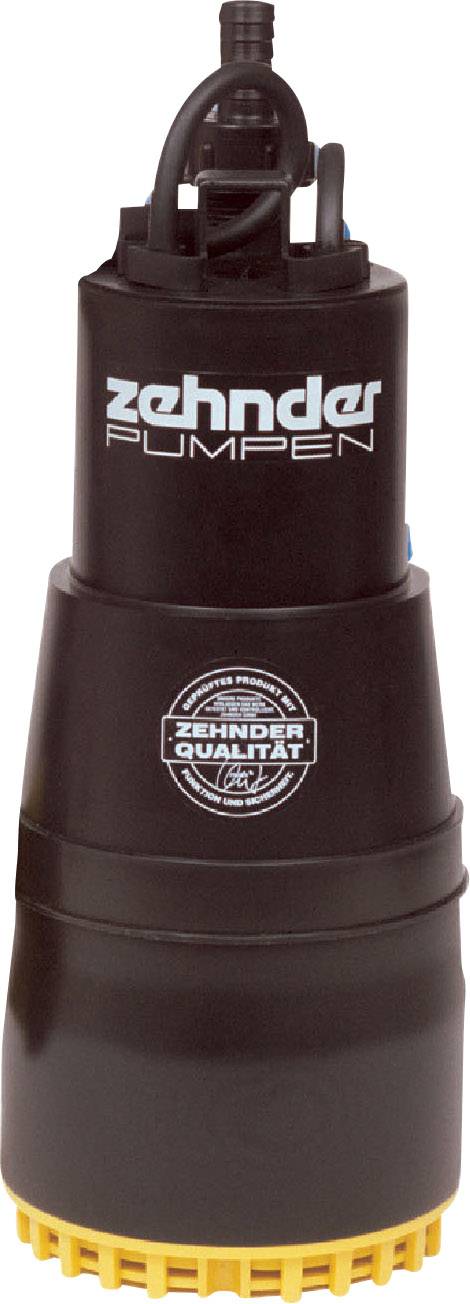

Zehnder Pumpen 13646 TDP 800 Submersible pump Multi-stage 6000 l/h 30 m
EAN:
Part number:
Item no:
Technical specifications
- Minimum water level: 300 mm
- Product type
Submersible pump
- Features
Multi-stage
- Max. delivery head
30 m
- Max. feed rate
6000 l/h
- Max. discharge pressure
3 bar
- Operating voltage
230 V
- Power consumption (P1)
760 W
- Power (P2)
410 W
- Pressure connection
25 mm (1") Ø
- Max. size of solids
3 mm
- Max. cable length
10 m
- Float switch
No
- Height
350 mm
- (Ø)
187 mm
- Dim
(Ø x H) 187 mm x 350 mm
IP68
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1409336 Zehnder Pumpen 13646 TDP 800 Submersible pump Multi-stage 6000 l/h 30 m
Description
Multi-stage submersion pressure pump with large delivery height of impact-resistant plastic and high-quality stainless steel. Motor winding with built-in thermal coil protection. Sealing by mechanical seal and shaft seal. Sheath current cooling. Vertical print outlet 1". Ideal for the cleaning of slightly contaminated waste water as well as for garden watering.
This text is machine translated.
This text is machine translated.
