Fluke Calibration 8846A 240V Bench multimeter Digital CAT I 1000 V, CAT II 600 V

  • Item no.: 1372725
  • Manufacturer no.: 2577390
  • EAN: 0095969344340

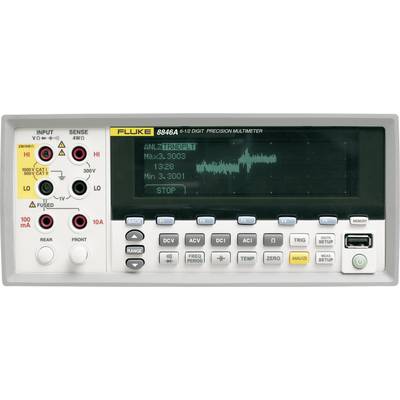

Dual Display and flexible graphics optionsThe Fluke 8846A has a unique dual display, on which they are two different parameters of the same signal over a test connection can measure. In order to identify problems with the signal quality, such as drif…

  • Item no.: 1372725
  • Manufacturer no.: 2577390
  • EAN: 0095969344340

Dual Display and flexible graphics optionsThe Fluke 8846A has a unique dual display, on which they are two different parameters of the same signal over a test connection can measure. In order to identify problems with the signal quality, such as drif…

Voltage reading range DC (min.) 0.0000001 V
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 µV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 100 pA
A DC reading range (max.) 10 A
A AC reading range (min.) 100 pA
Amperage reading range AC (max.) 10 A
Reading range - resistance 10 µΩ - 1 GΩ
Reading range - capacity 1 nF -0.1 F
Frequency reading range 3 Hz -1 MHz
Temperature -200 to +600 °C
DC resistance 10 MΩ
AC resistance 1 MΩ
Measurement type True RMS
Interfaces RS232 , USB , 1x USB host
Power supply (details) 230 V AC
Height 88 mm
Width 217 mm
Length 297 mm
Weight 2.1 kg
Calibrated to
Manufacturer's standards (no certificate)
Reading category CAT I 1000 V , CAT II 600 V
Voltage metering AC/DC
Current reading AC/DC
Type 8846A 240V
Display Digital
Temperature reading range (max.) +600 °C
Temperature reading range (min.) -200 °C
Product type Bench multimeter

Technical data

Voltage reading range DC (min.) 0.0000001 V
Voltage DC reading range (max.) 1000 V
V AC reading range (min.) 0.1 µV
V AC reading range (max.) 750 V
Amperage reading range DC (min.) 100 pA
A DC reading range (max.) 10 A
A AC reading range (min.) 100 pA
Amperage reading range AC (max.) 10 A
Reading range - resistance 10 µΩ - 1 GΩ
Reading range - capacity 1 nF -0.1 F
