Highlights & Details

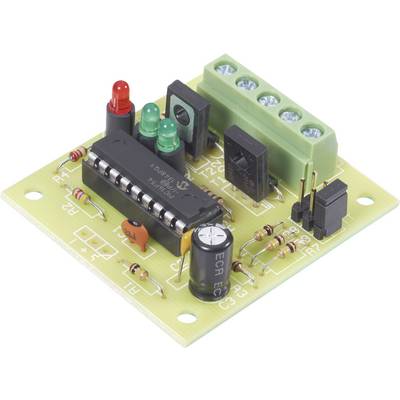

Component 2-channel cycle Memory switch
- Alternative key or switching function
Technical specifications
- Type
Module
- Dim
(L x W) 43 mm x 47 mm
- Length
43 mm
- Width
47 mm
- Operating voltage
4.8 V (max)
- Max. operating voltage
4.8 V
- Functions
Button / Switch mode
- Switch contact
Electronic
- Switching capacity
1.5 A
- Switching voltage
5 - 24 V DC
- No. of channels (details)
2
- Operating voltage
4.8 V DC
- Product type
2-channel memory push-button
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 227387 2-channel memory push-button
Description
With this microcontroller Memory switch release two different switching functions via a proportional channel. In addition you can attach this component simply at place of a Servo at the remote control receiver. A switched channel remains active by the Memory function until the channel is again operated. Since the Microcontroller automatically "learns" the neutral position of the control stick with switching on of the remote control transmitter, you need neither alignment nor tuning while driving
Features
- Scan or switch function
Scope of delivery
- Component fully developed and tested
- Instructions
- Without connection cable
