ABUS NVR10010 ABUS NVR10010 5-Kanal NVR 2160p 4K mit 2TB 5-channel Network video recorder
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
ABUS Professional 5-channel network recorder (NVR)
- Up to 12 TB storage capacity can be upgraded
- HDMI output with up to 3840 x 2160 pixels (4K-ready)
- With the ONVIF-support
- This text is machine translated.
Technical specifications
- Camera resolution max.: 12 MP
- Video compression: MPEG-4, H.264, H.265
- Storage medium: 2 x SATA HDD (up to 6TB per HDD)
- Max. frame rate: 25 fps
- Audio output: 1 x phono

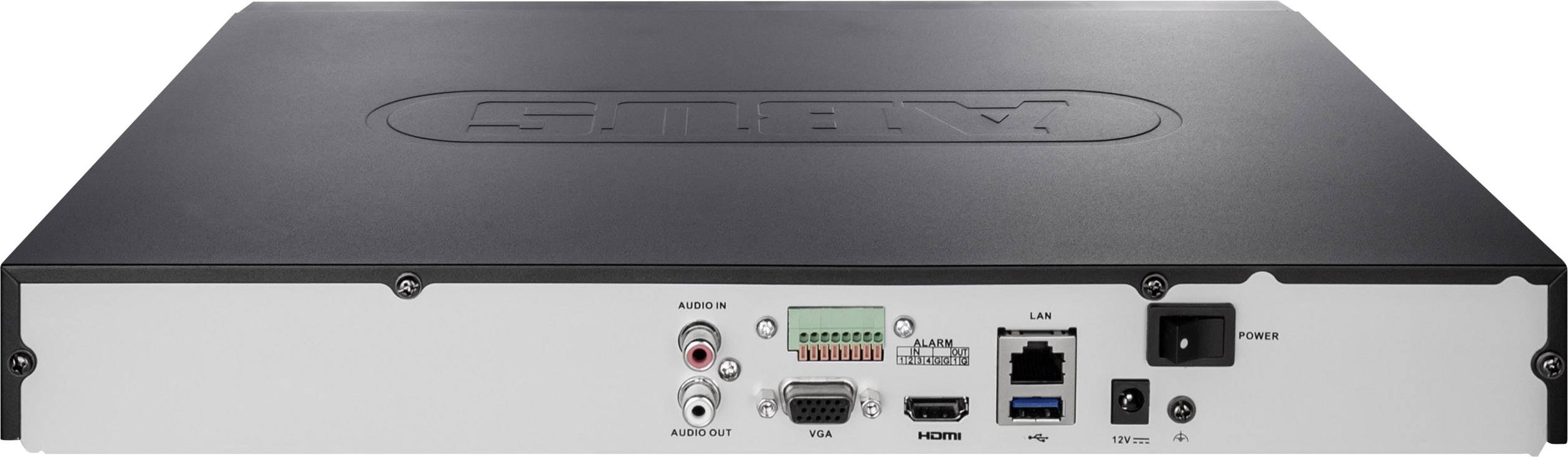

- Monitor outputs: 1x VGA, 1x HDMI
- ONVIF: Profile S
- The number of users: 31
- Simultaneous network access: 128 camera connections
- PTZ control: via network
- Network connection: 1 x RJ45 10/100/1000 Mbps
- Power consumption 15 W
- Power consumption including HDD: 40W
- Operating temperature: -10°C to +55°C
- Power supply: 12V DC
- Product type
Network video recorder
- Signal standard
IP
- Channels
5
- Recording mode
Manual
Preset
Movement detection
Alarm
- Outputs
HDMI
VGA
Audio jack
- Inputs
RJ45
RS232
Alarm out
Audio jack
- Width
380 mm
- Height
50 mm
- Depth
315 mm
- Weight
1000 g
- Dim
(W x H x D) 380 x 50 x 315 mm
- Resolution (max.)
3840 x 2160 p
- Memory expansion up to
12 TB
- Built-in memory
none
Documents & Downloads
Datasheet
Datasheet 1674568 ABUS NVR10010 ABUS NVR10010 5-Kanal NVR 2160p 4K mit 2TB 5-channel Network video recorder
User & Safety Instructions
User & Safety Instructions 1674568 ABUS NVR10010 ABUS NVR10010 5-Kanal NVR 2160p 4K mit 2TB 5-channel Network video recorder
Information
Information 1674568 ABUS NVR10010 ABUS NVR10010 5-Kanal NVR 2160p 4K mit 2TB 5-channel Network video recorder
Description
Fast. Flexible. Persevering.

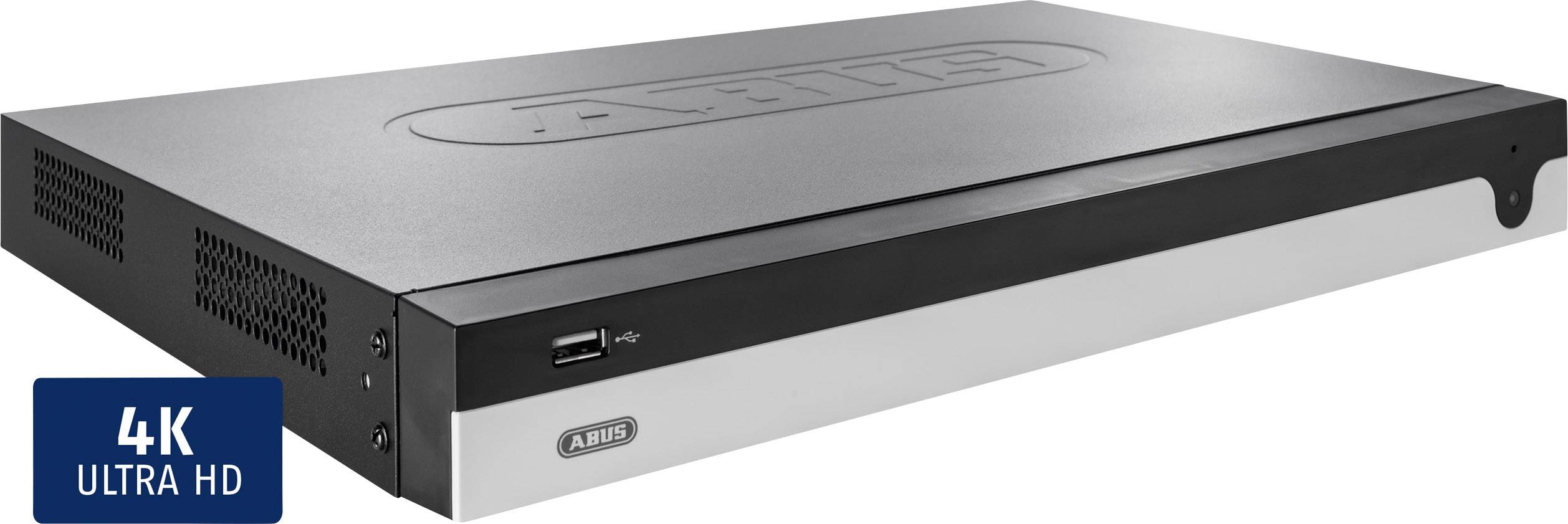

This ABUS network video recorder (NVR) records video streams from 5 cameras with a total of up to 60 MBit/s. It supports 2 internal hard drives and resolutions up to 3840 x 2160 px (4K-ready via HDMI output). Like all ABUS IP video recorder is the NVR 10010 flexible and scalable in new as well as existing projects can be integrated.
Simple and easy.
Already Setting Up the cameras in the recorder works in no time at all thanks to the intuitive installation wizard. This is the perfect interaction between this NVR and, for example, the ABUS IP cameras of the Advanced Line, in which intelligent alarm function (Video Content Analysis, short VCA) are included. In addition, the recorder even various alarm options: it transmits images via e-mail, controls a central monitoring station software (CMS) with messages to, or switches sirens and lights.
At any time, anywhere and everywhere.
To respond to various scenarios with this NVR is easy. Because the recorder is, no matter when and no matter how, very easy to control, both a local monitor, as well as worldwide via remote access via App, ABUS CMS software or internet browser.
Cheap.
Thanks to the built-in embedded technology is the NVR almost maintenance free. Maintenance costs and costs as well as investments for software licenses are eliminated.
This text is machine translated.
This ABUS network video recorder (NVR) records video streams from 5 cameras with a total of up to 60 MBit/s. It supports 2 internal hard drives and resolutions up to 3840 x 2160 px (4K-ready via HDMI output). Like all ABUS IP video recorder is the NVR 10010 flexible and scalable in new as well as existing projects can be integrated.
Simple and easy.
Already Setting Up the cameras in the recorder works in no time at all thanks to the intuitive installation wizard. This is the perfect interaction between this NVR and, for example, the ABUS IP cameras of the Advanced Line, in which intelligent alarm function (Video Content Analysis, short VCA) are included. In addition, the recorder even various alarm options: it transmits images via e-mail, controls a central monitoring station software (CMS) with messages to, or switches sirens and lights.
At any time, anywhere and everywhere.
To respond to various scenarios with this NVR is easy. Because the recorder is, no matter when and no matter how, very easy to control, both a local monitor, as well as worldwide via remote access via App, ABUS CMS software or internet browser.
Cheap.
Thanks to the built-in embedded technology is the NVR almost maintenance free. Maintenance costs and costs as well as investments for software licenses are eliminated.
This text is machine translated.
Features
- Fast recording: Videos with up to 336 MBit/s data throughput (80 MBit/s/256 MBit/s out) stream
- Untiring recorded: up to 2 hard disks
- Details recognized: resolutions up to 3840 x 2160 px (4K-Ready) supported by HDMI output
- Clever: thanks to perfect interplay of recorders and cameras with VCA intelligent record and alarming
- Easy to use: via local monitor, the integrated web, app or ABUS CMS software control
- Live View
- Mobile Access: iDVR Plus/iDVR Plus HD (Apple iOS and Android)
- Multi-monitor function
Scope of delivery
- Network video recorder
- USB wireless mouse
- 2x SATA cable
- Software CD
- Power supply unit
- Fasteners
- Quick guide.
Hints
Hard drive not included.
