Aerotec Air compressor KELVIN 7,5-10 270 270 l 10 bar
EAN:
Part number:
Item no:
Highlights & Details

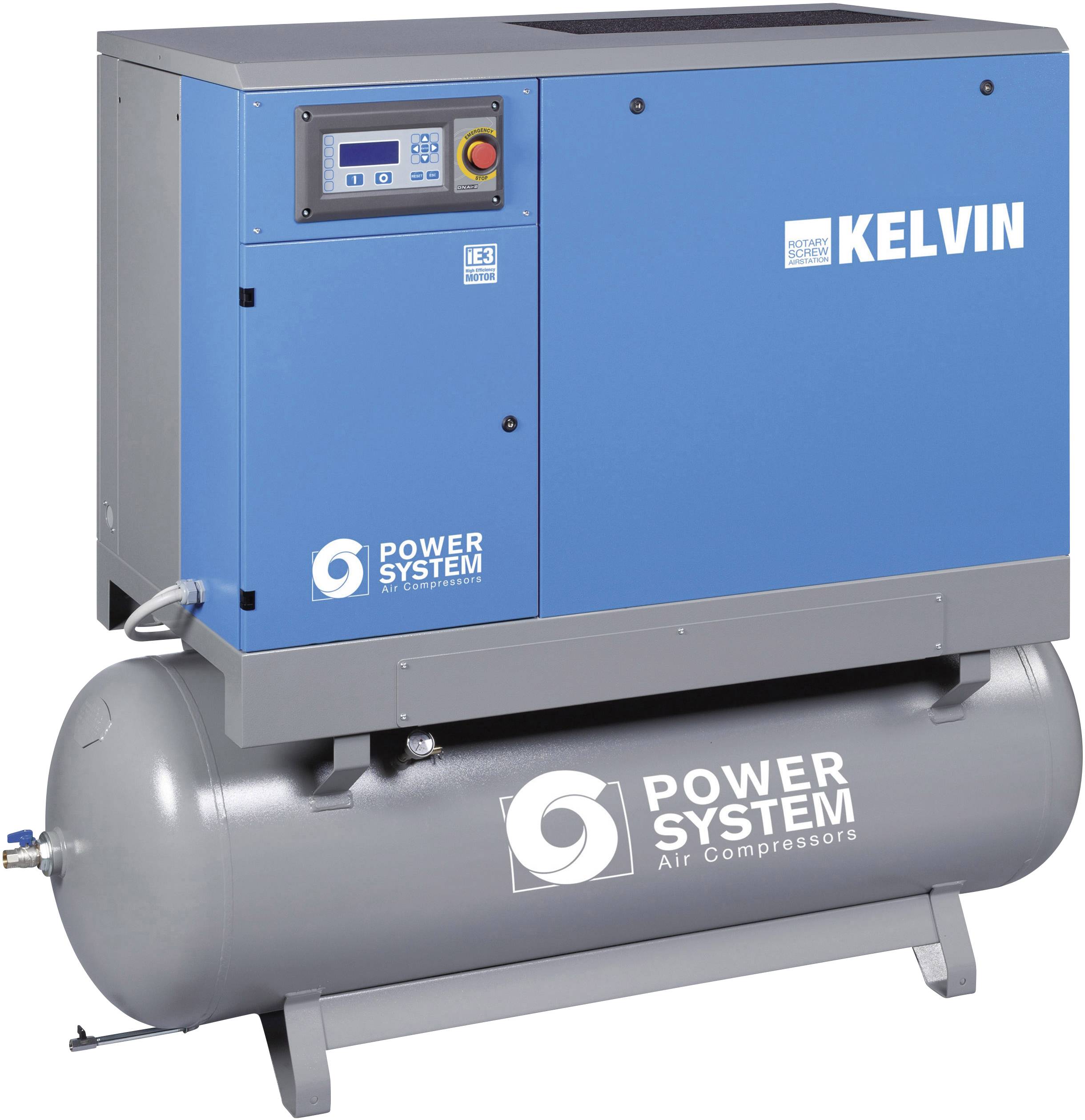

Screw compressor KELVIN 7.5-10 270L tank with dryer
- Boiler volume: 270 l
Technical specifications
- Product type
Air compressor
7.5 kW
- Flow rate
1000 l/min
- Operation pressure
10 bar
- Boiler volume
270 l
- Operating voltage
400 V
- Length
1560 mm
- Width
700 mm
- Height
1580 mm
- Weight
326 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2187762 Aerotec Air compressor KELVIN 7,5-10 270 270 l 10 bar
Description
Features
- Compact in the smallest of spaces: Compressor + boiler + cooling dryer incl. 2-way filtration according to DIN ISO 8753-1 thus without any additional cost of acquisition a perfect air quality from the start
- With fork attachment for easy transport with a forklift
- Microprocessor control and direction of rotation control, thanks to 2-way double fan system, no overheating problems are guaranteed
- Super-sound-insulated screw compressor with drive via low-maintenance Poly-V belt
- The compressors are very quiet and designed for continuous operation. A separate radial fan and a generously dimensioned heat exchanger ensure low operating temperatures
- Thanks to the sophisticated design, all maintenance-relevant parts are easily accessible
- The screw compressor is equipped with a highly efficient IE3 motor, which enables significant energy savings
- 24h operation possible
- Compressor block SF50
- Separate radial fan for optimum cooling
- Very good accessibility for maintenance work
- Direction of rotation monitoring by means of phase sequence relay
- With microprocessor control for monitoring all operating parameters.
- This text is machine translated.
