Name: Aerotec Pneumatic screwdriver mini JUNIOR 2,2-08-90 M Z / 230 V 90 l 8 bar
Brand: Aerotec
SKU: 3735245

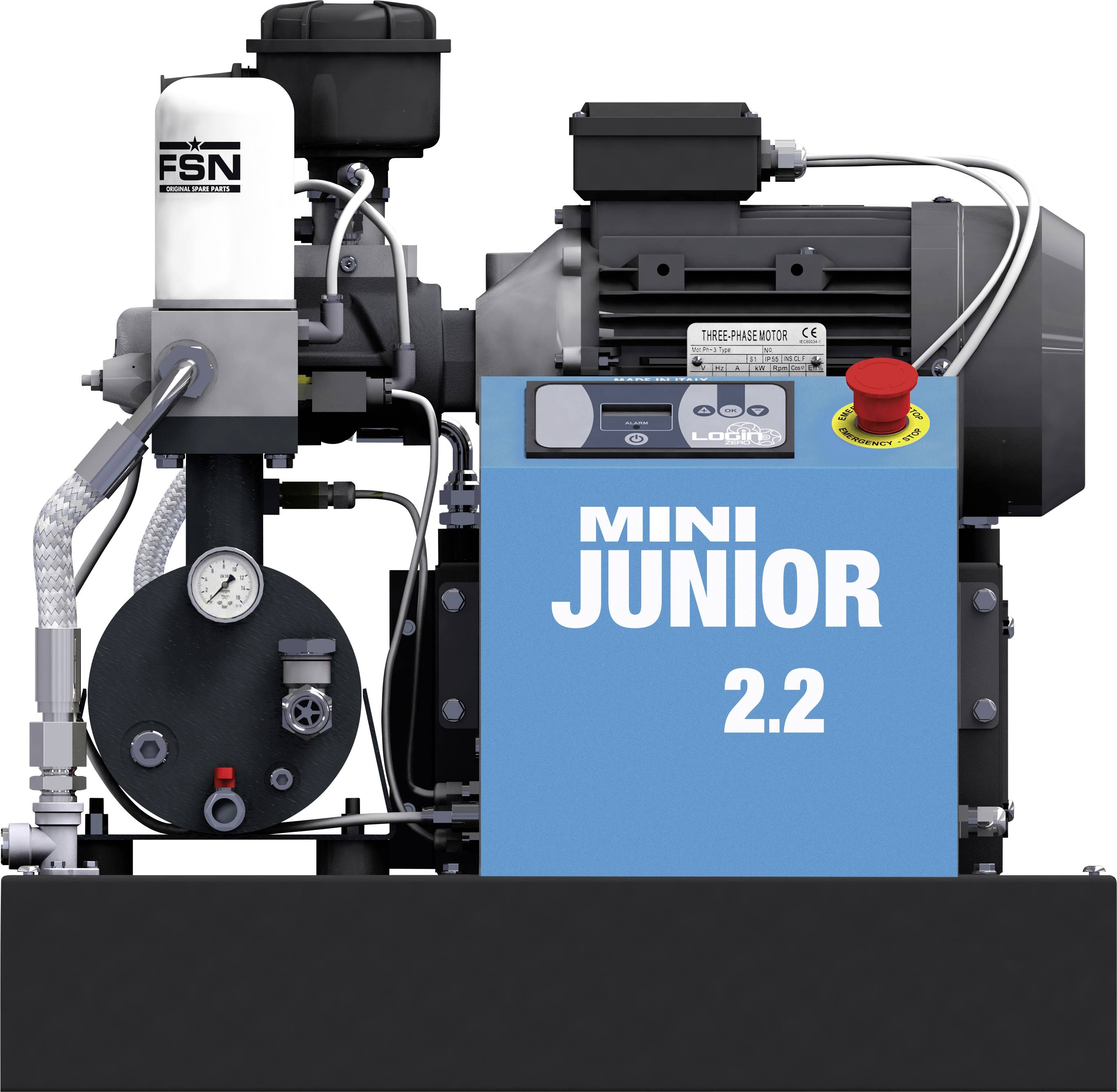

Industrial machine labeled 'MINI JUNIOR 2.2' with a red emergency stop button, gauges, hoses, and motor components on a black base.<br>

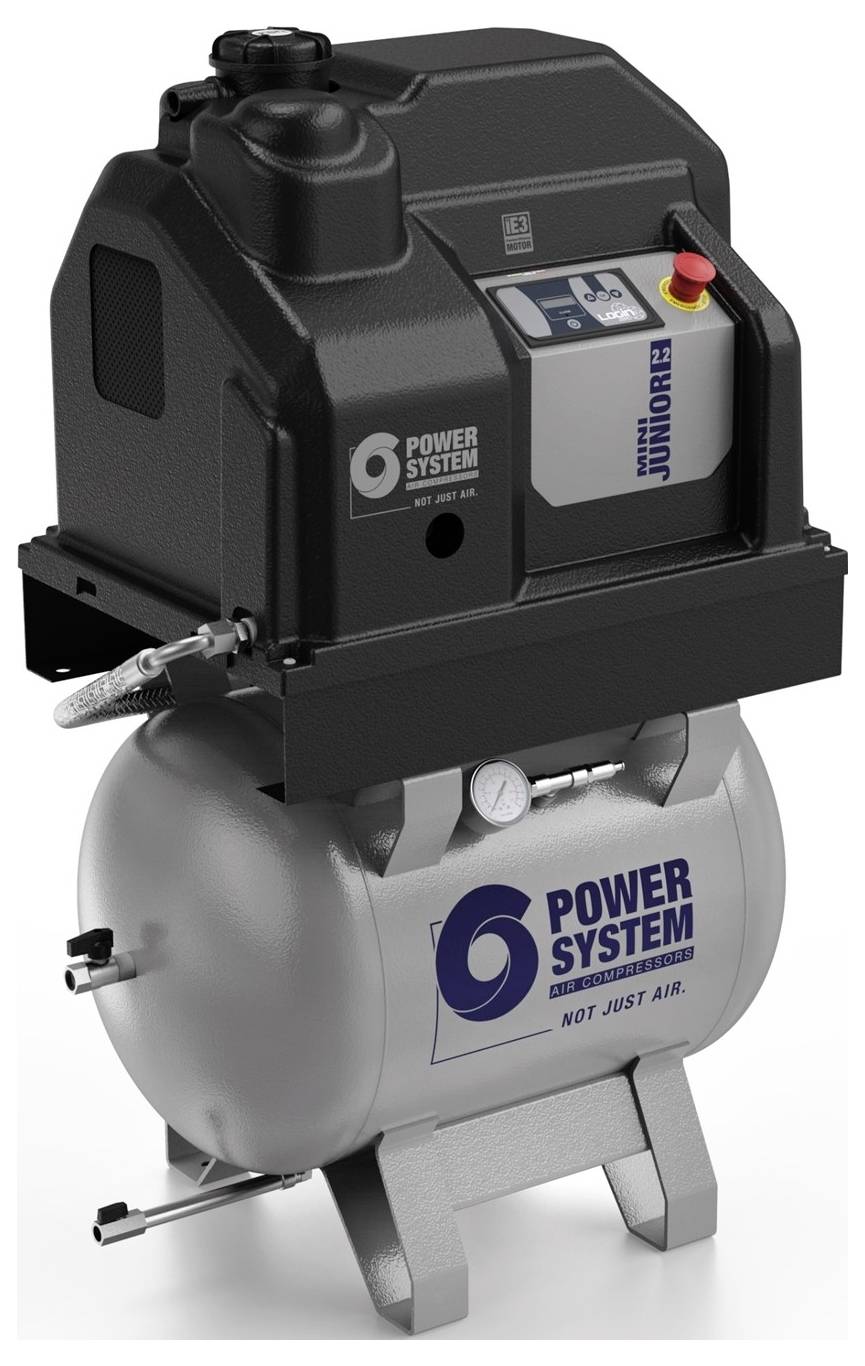

Portable Power System air compressor with black motor unit on a silver tank, labeled 'JUNIOR' and 'Power System', shown on a white background.

Portable air compressor unit with motor, pump, hoses, and tank mounted on a wheeled base.

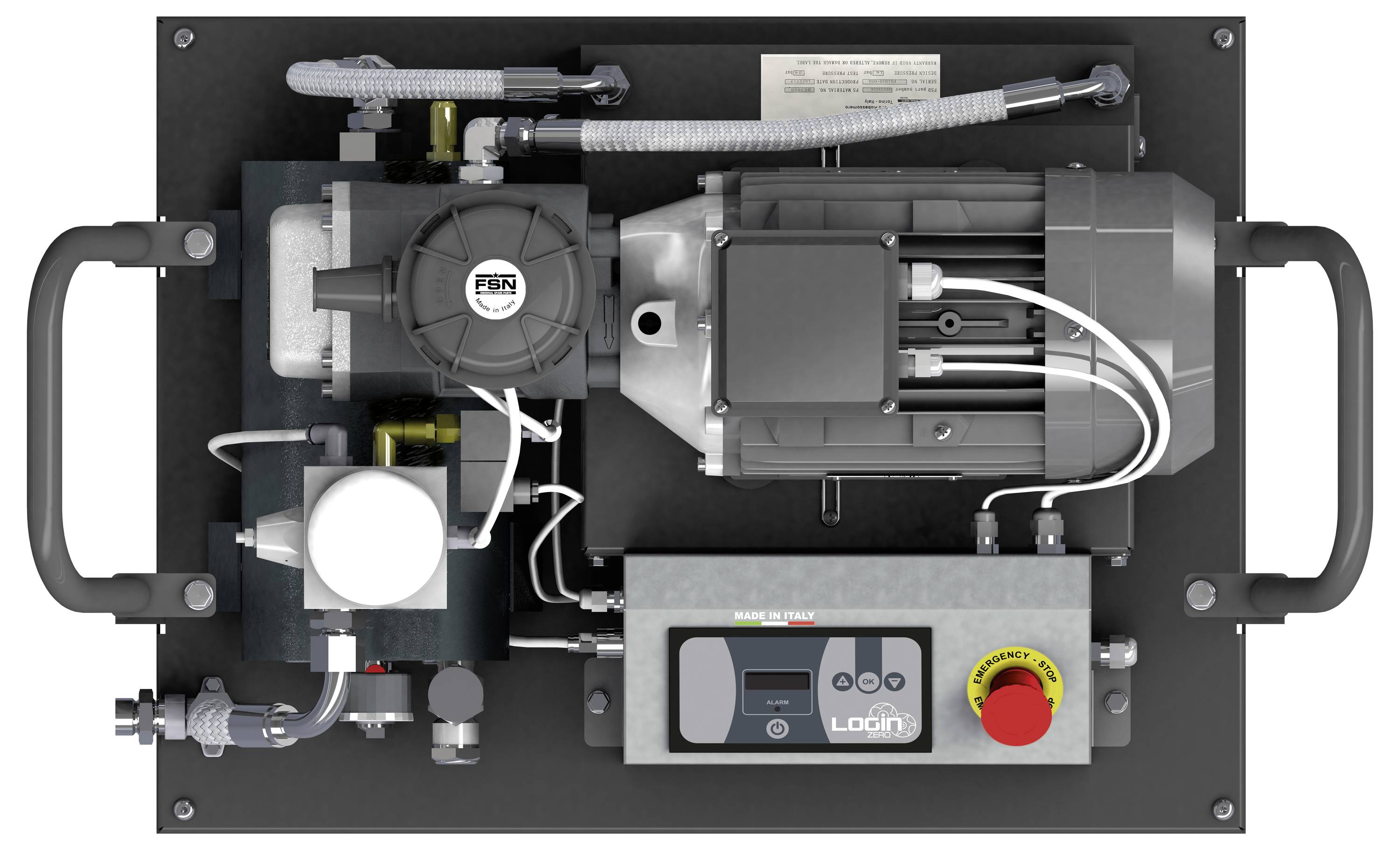

Top-down view of a compact industrial machine assembly with a motor, pump, hoses, control panel, and red emergency stop button on a black base.

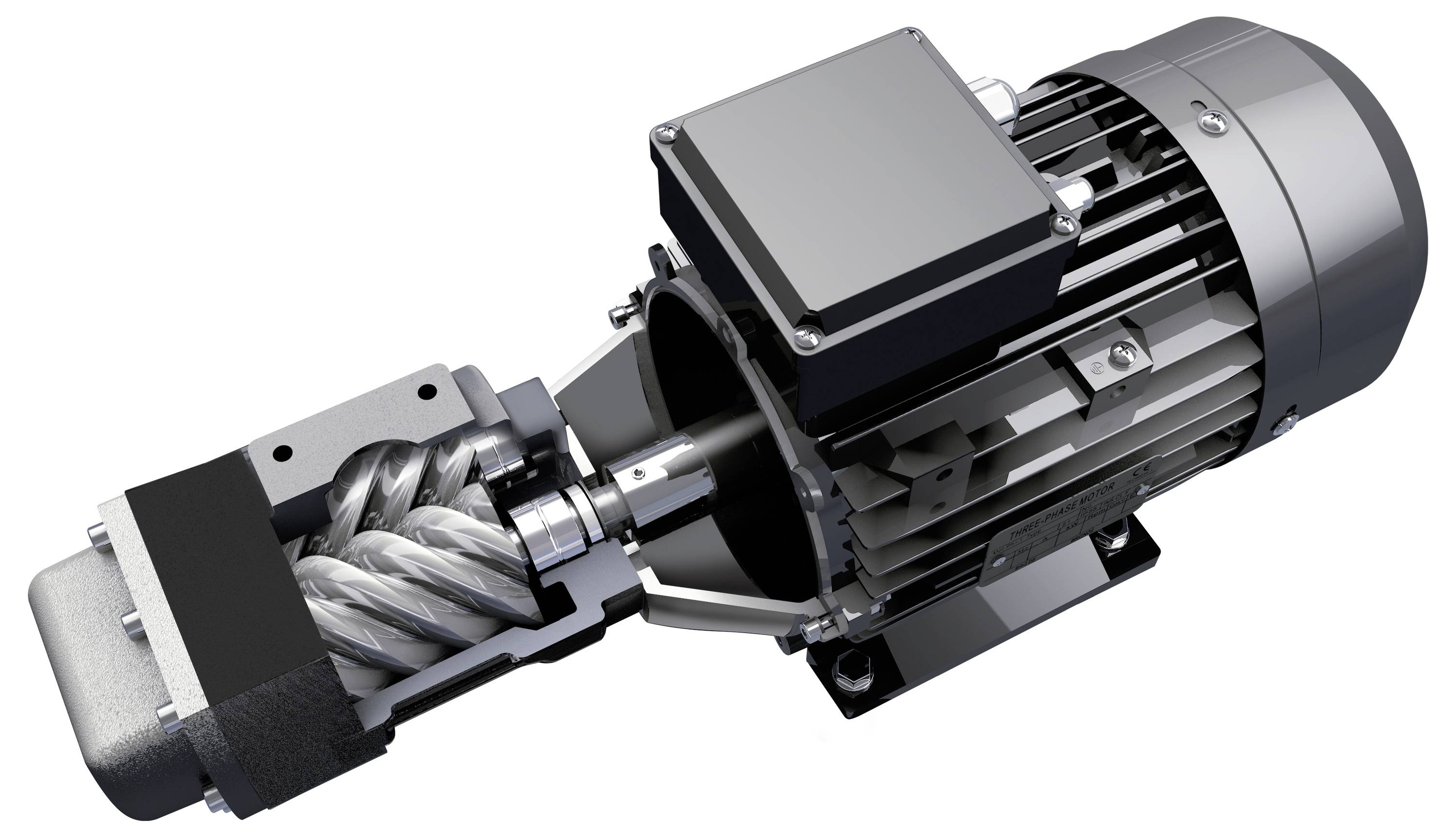

Cutaway illustration of an electric motor driving a screw pump, showing the internal helical rotor and housing on a white background.

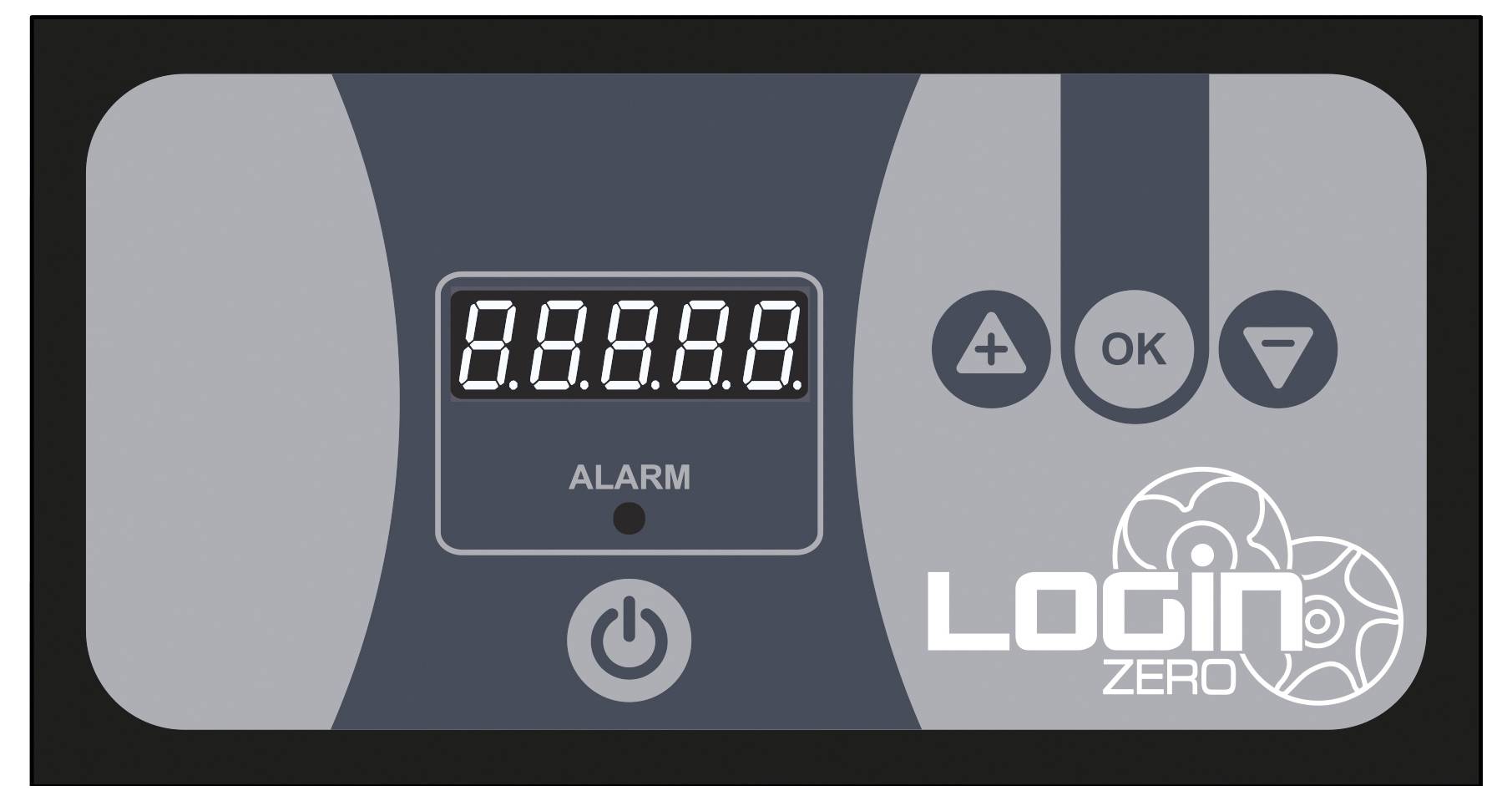

Control panel for 'Login Zero' with a digital alarm display, power button, and up/down buttons around an OK button.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MINI JUNIOR 2.2-08-90 M Z / 230 V

Boiler volume: 90 l

Technical specifications

Product type: Pneumatic screwdriver

Flow rate: 292 l/min

Operation pressure: 8 bar

Boiler volume: 90 l

Operating voltage: 230 V

Length: 730 mm

Width: 460 mm

Height: 1060 mm

Weight: 104 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3735245 Aerotec Pneumatic screwdriver mini JUNIOR 2,2-08-90 M Z / 230 V 90 l 8 bar

Description

The directly driven screw compressor "mini JUNIOR" convinces by its compact design, which makes it Ideal for use in the smallest of spaces. This series was developed especially for continuous operation in the industry and thus offers a reliable power for demanding applications. Thanks to the direct connection of the compressor stage and the electric motor, an optimum transmission efficiency is achieved.

Features:

The Block POWERSYSTEM compressor forms the core of the compressor. Two side-mounted carrying handles make it easy to transport, while the very good accessibility simplifies all maintenance work considerably. The compressor also has an integrated digital direction of rotation monitoring, which together with the control of the most important operating parameters provides for a safe and efficient operation.

This text is machine translated.
