Allnet ALL-MC116VDSL2 VDSL modem

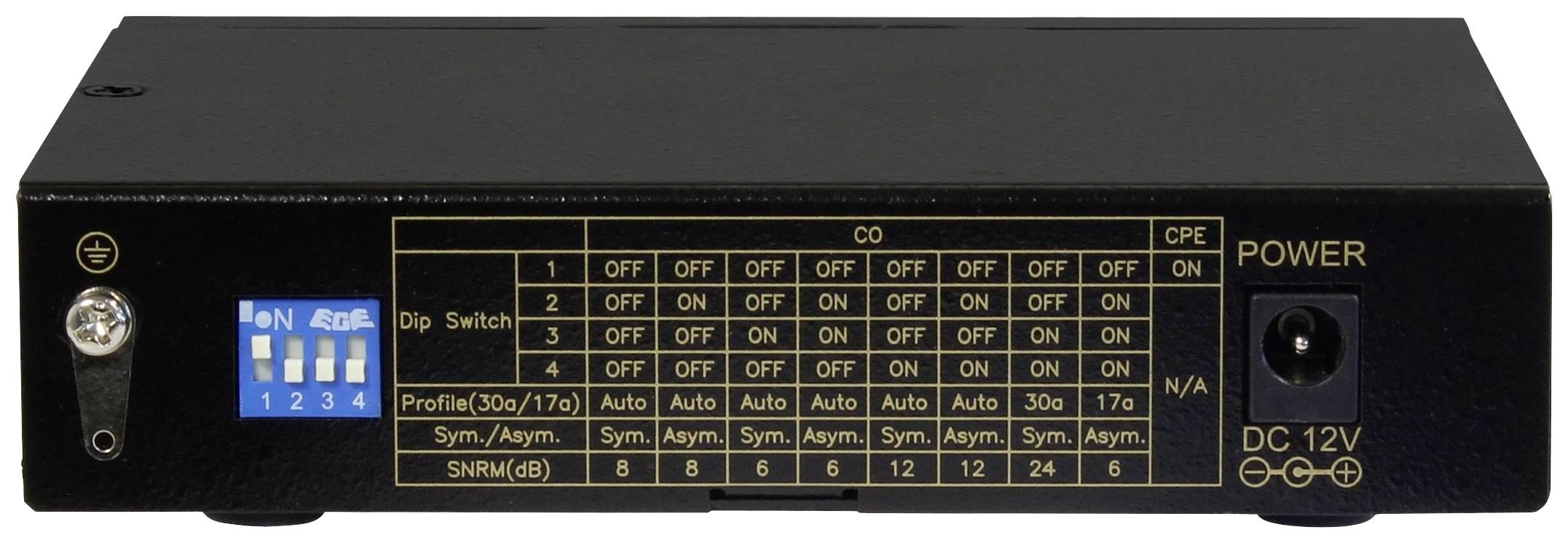

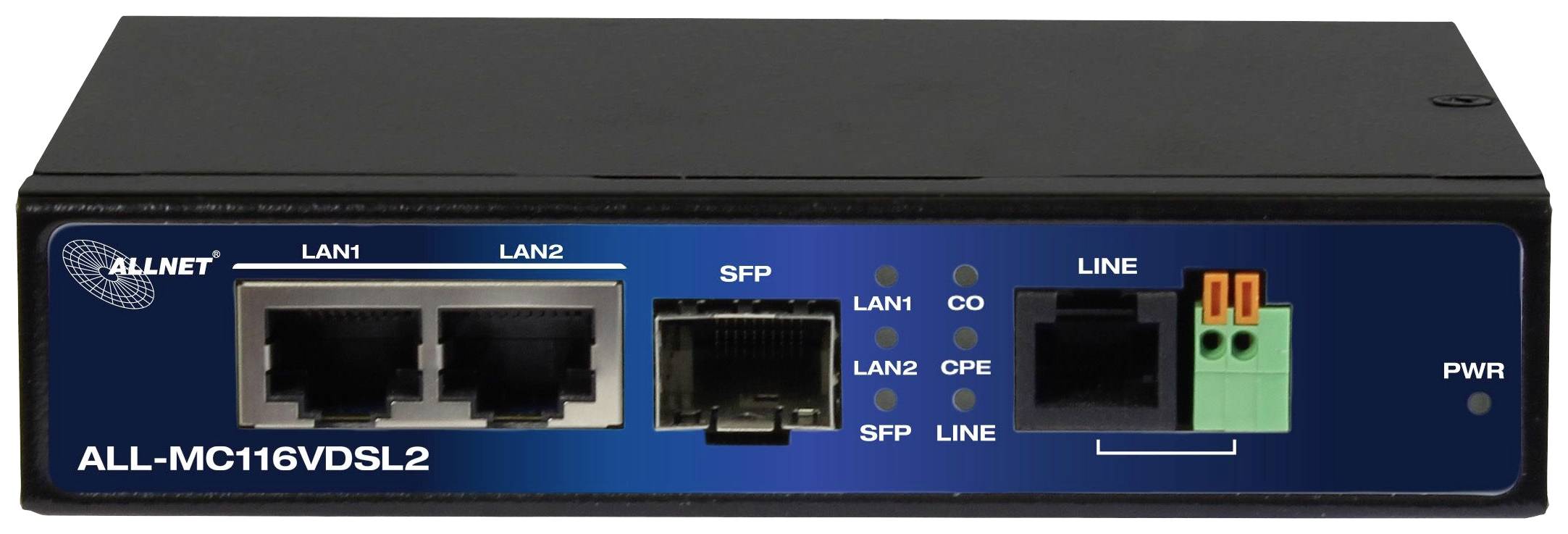

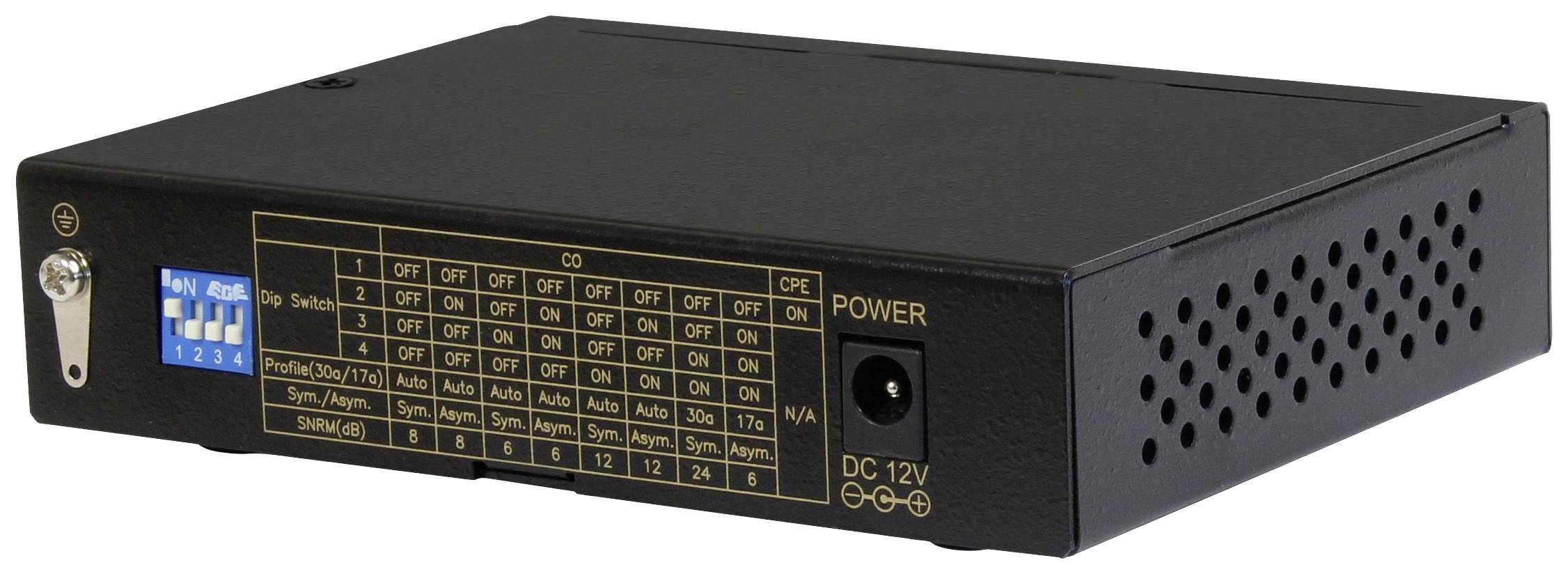

With THE ALL-MC116VDSL2 modem, the Allnet has a pure VDSL2 single port bridge on the market, which meets the basic requirement of a high-performance Point to Point connection using a 2-wire connection, typically a telephone connection, with all the advantages of a VDSL2 connection. The modem has both RJ11 sockets and terminal sockets for a pure wire connection. The additional possibility of the devices to earth (with the ALL95100 lightning protection) brings the necessary protection against lightning strikes in the area of application. Two Gigabit ports connect the modem to the network. In the new ALL-MC116VDSL2, an optional Gigabit SFP slot is now available to expand communication with copper or Fibre GBIC modules if necessary.The configuration of THE ALL-MC116VDSL2 can be done quickly and easily via the DIP switch either as a Master or a slave modem. Numerous LEDs are provided on the front of the device for visual signaling the operating states and connections.
