Alutruss DECOLOCK DQ3-PAL34 Triangular truss 3-way corner 90 °
EAN:
Part number:
Item no:
Number
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
Only 5 Piece(s) available
Highlights & Details
DECOLOCK DQ3-PAL34 3-way corner 90°
- 3-point lightweight traverse system
Technical specifications
- Longitudinal pipes 35 x 2 mm
- 10 x 2 mm struts
- Pipe material AlMgSi 0.5
- Welding material ALMg 5
- Welding method TIG pulse.

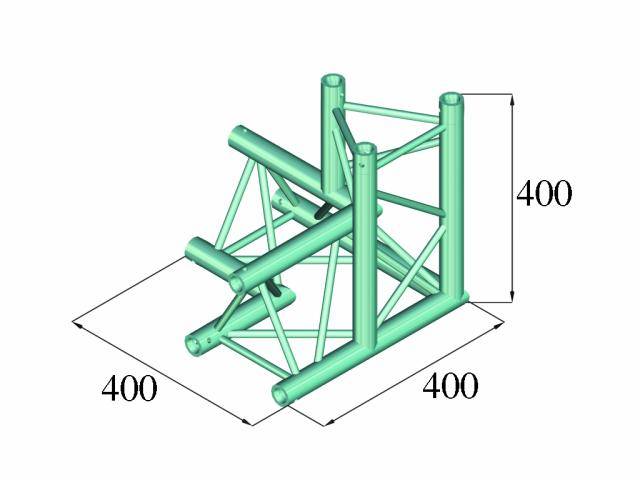

- Dimensions 185 mm (center of hole - center of hole)
- Dimensions 220 mm
- Type
3-way corner
- Product type
Triangular truss
- Inclination
90°
- Tube diameter
35 mm
- Dim
(L x W x H) 41.00 x 40.5 x 41 cm
- Width
40.5 cm
- Height
41 cm
- Depth
41 cm
- Weight
3.3 kg
- Length
41.00 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 593819 Alutruss DECOLOCK DQ3-PAL34 Triangular truss 3-way corner 90 °
Description
3-point lightweight traverse system · High-quality aluminum pipes with 35 mm diameter · Easy mounting by quick-lock connector · Very low weight · For trade fair and shop fitting
