Name: Amewi Standard servo AMXRacing AM2273SG PRO Analogue servo Gear box material: Steel Connector system: JR
Brand: Amewi
SKU: 3345293
Availability: InStock

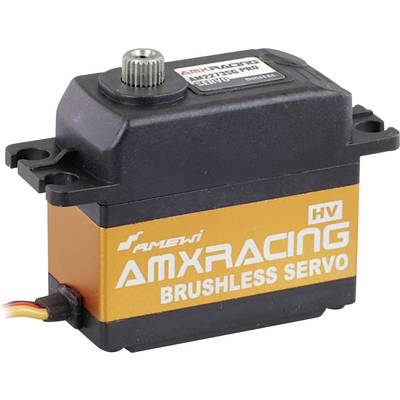

'AMX Racing HV Brushless Servo' in a black housing with an orange stripe, cable connection on the left, for model-building applications.

AMX Racing Servomotor and Accessories in One Package. Text 'AMX Racing' and 'Brushless Standard Servo'.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Dead Band: 3μs
Operating frequency 1520μs / 330Hz
Engine: Brushless motor
Operating voltage DC 6 V
Housing: Partial metal
Regulating speed (6V): 0.12sec/60°
Regulating speed (7.4V): 0.09sec/60°
Actuating force (6V): 23 kg/cm
Actuating power (7.4 V): 28 kg/cm
Cable length 265mm
JR connection
Ball bearings 2
Servo head 25Z

Product type: Standard servo

Dim: (L x W x H) 40.3 x 20.2 x 38.7 mm

Length: 40.3 mm

Width: 20.2 mm

Height: 38.7 mm

Voltage: High

Weight: 69 g

Actuation time at 6 V: 0.12 s

Actuation time (7.4 V): 0.09 s

Gear box: Steel

Type of bearing: Double ball bearing

Servo technology: Analogue servo

Connector system: JR

Operating voltage: 6 - 7.4 V

Max. operating voltage: 7.4 V

Min. operating voltage: 6 V

Manufacturer part #: 28452

for brands: Amewi

Suitable for: Universal

Variants(All information include VAT, plus shipping costs)

Gear box

Servo technology

Connector system

Dim

Type of bearing

Voltage

Width

Product type

Amewi Standard servo AMXRacing AM2273SG PRO Analogue servo Gear box material: Steel Connector system: JR

Item no:3345293

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

This article

Steel

Analogue servo

(L x W x H) 40.3 x 20.2 x 38.7 mm

Double ball bearing

High

20.2 mm

Standard servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Amewi Micro servo AMXRacing 1143HB Analog Analogue servo Gear box material: Plastic

Item no:3345303

Fast track dispatch on Wed 4 Nov

2 Piece(s)Conrad Electronic

Plastic

Analogue servo

(L x W x H) 19.8 x 8.2 x 24.2 mm

Double ball bearing

8.2 mm

Micro servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 9.99^*

Amewi Micro servo AMXRacing 1181MG Midi Analogue servo Gear box material: Metal Connector system: JR

Item no:3345283

Fast track dispatch on Wed 4 Nov

23 Piece(s)Conrad Electronic

Metal

Analogue servo

(L x W x H) 28 x 13 x 29.7 mm

Low

13 mm

Micro servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Amewi Micro servo AMXRacing AM1102HB Analogue servo Gear box material: Plastic Connector system: JR

Item no:3345282

Fast track dispatch on Wed 4 Nov

6 Piece(s)Conrad Electronic

Plastic

Analogue servo

(L x W x H) 16.3 x 8.4 x 17.5 mm

Low

8.4 mm

Micro servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 10.99^*

Amewi Micro servo AMXRacing Micro ST56MG Analogue servo

Item no:3345281

Fast track dispatch on Wed 4 Nov

15 Piece(s)Conrad Electronic

Analogue servo

(L x W x H) 20.2 x 8.5 x 22.3 mm

8.5 mm

Micro servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Amewi Midi servo AMXRacing AM1211MG PRO Midi Digital servo Gear box material: Metal Connector system: JR

Item no:3395042

Available soon

Conrad Electronic

Metal

Digital servo

(L x W x H) 30 x 10 x 36 mm

Double ball bearing

High

10 mm

Midi servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Amewi Midi servo AMXRacing AMHV2006MG Midi Analogue servo Gear box material: Metal Connector system: JR

Item no:3345286

Available soon

Conrad Electronic

Metal

Analogue servo

(L x W x H) 23 x 12 x 27.6 mm

Double ball bearing

High

12 mm

Midi servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

Amewi Mini servo AMXRacing 933MG Digital Mini Digital servo Gear box material: Metal

Item no:3345304

Fast track dispatch on Wed 4 Nov

38 Piece(s)Conrad Electronic

Metal

Digital servo

(L x W x H) 23.2 x 12 x 30 mm

12 mm

Mini servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Amewi Mini servo AMXRacing AMHV56MG Mini Analogue servo Gear box material: Metal Connector system: JR

Item no:3345288

Available soon

Conrad Electronic

Metal

Analogue servo

(L x W x H) 19.8 x 8.2 x 21.5 mm

High

8.2 mm

Mini servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Amewi Standard servo AMXRacing 4806HB Digital Digital servo Gear box material: Plastic

Item no:3345287

Fast track dispatch on Wed 4 Nov

21 Piece(s)Conrad Electronic

Plastic

Digital servo

(L x W x H) 40.5 x 20.3 x 38 mm

20.3 mm

Standard servo

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3345293 Amewi Standard servo AMXRacing AM2273SG PRO Analogue servo Gear box material: Steel Connector system: JR

Description

Powerful brushless HV pro servo of the latest generation with steel gears in the standard size of 40mm and 28kg actuating power at 7.4V - suitable for all RC models that require this size and which pay attention to precision, force and setting accuracy. These include, for example, cars, jets or helicopters.

This text is machine translated.
