DSSERVO Custom servo DSSERVO DS3245
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 3 Piece(s) available
Highlights & Details
DSSERVO Custom servo DSSERVO DS3245
- High-power coreless motor with 342:1 gear transmission ratio
- Displacement force up to 51kg at 8.4V
- Fast response: Up to 0.11 sec/60°
- Double ball-bearing for uniform run
- Water resistant according to IP66
- 180° or 270° control range (PWM-controlled)
- Standard 3-wire 300mm servo cable
- This text is machine translated.
Technical specifications
- Model
DSSERVO DS3245
- Dim
(L x W x H) 40 x 20 x 38.5 mm
- Length
40 mm
- Width
20 mm
- Height
38.5 mm
- Weight
60 g
- Actuation time at 6 V
0.15 sec/60°
- Actuation time (7.4 V)
0.13 sec/60°
- Type of bearing
Double ball bearing
- Manufacturer part #
DS012
- Min. operating voltage
5.0 V
- Operating voltage
5.0 - 8.4 V
- Max. operating voltage
8.4 V
- Product type
Custom servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773684 DSSERVO Custom servo DSSERVO DS3245
Description

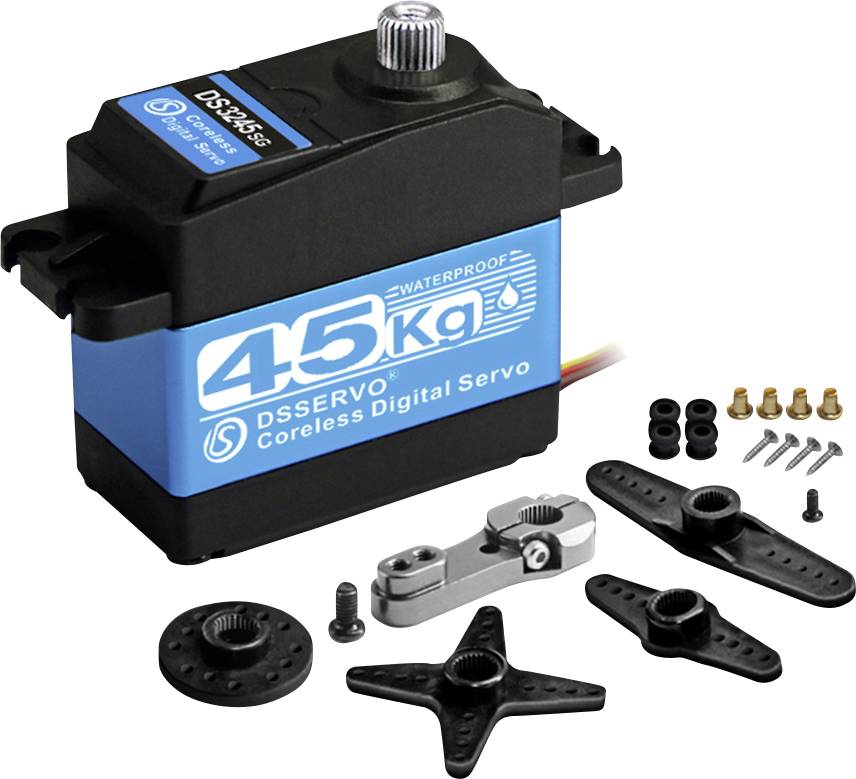

Scope of delivery
- DS servo
