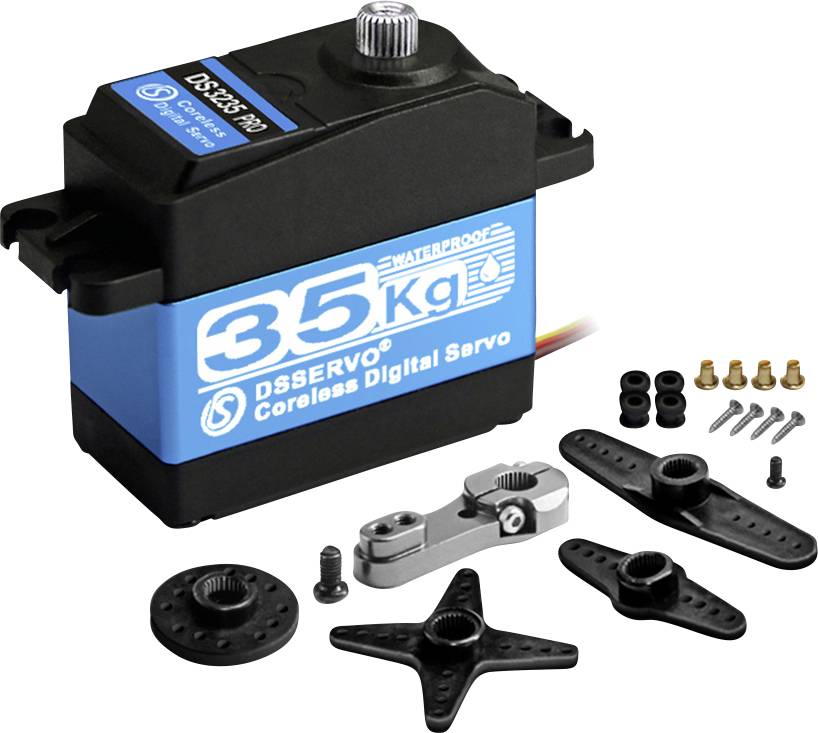

DSSERVO Custom servo DSSERVO DS3235 PRO Digital Coreless
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Only 4 Piece(s) available
Highlights & Details
DSSERVO Custom servo DSSERVO DS3235 PRO Digital Coreless
- Powerful coreless motor with up to 45 kg torque
- Robust full metal case with IP66 protection against dust and water
- Very fast response time: Up to 0,095 sec/60°
- Double ball bearing for precise movement
- PWM-compatible with 2µsec Deadband
- Ideal for 1/10 & 1/8 off-road, crawler, Truggy, buggy and robot projects
- This text is machine translated.
Technical specifications
- Model
DSSERVO DS3235 PRO
- Dim
(L x W x H) 40 x 20 x 38.5 mm
- Length
40 mm
- Width
20 mm
- Height
38.5 mm
- Weight
60 g
- Actuation time at 6 V
0,013 sec/60°
- Actuation time (7.4 V)
0,11 sec/60°
- Type of bearing
Double ball bearing
- Manufacturer part #
DS011
- Min. operating voltage
5.0 V
- Operating voltage
5.0 - 8.4 V
- Max. operating voltage
8.4 V
- Product type
Custom servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773683 DSSERVO Custom servo DSSERVO DS3235 PRO Digital Coreless
Description
Scope of delivery
- DS servo
