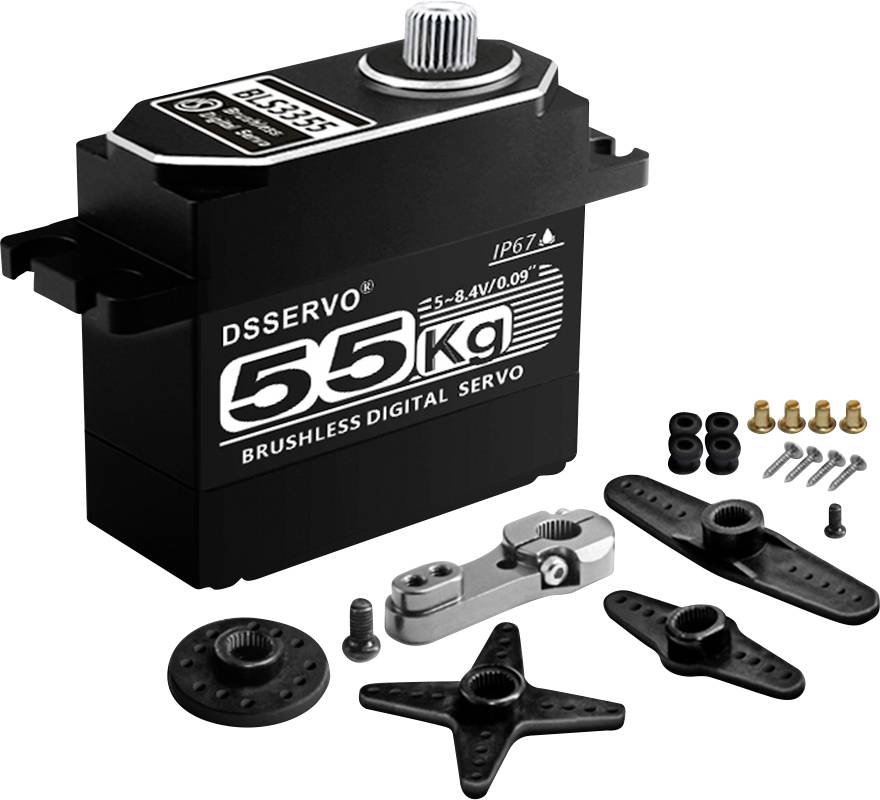

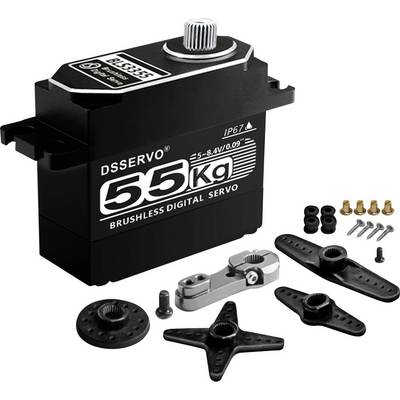

DSSERVO Custom servo DSSERVO BLS3355
EAN:
Part number:
Item no:
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 2 Piece(s) available
Highlights & Details
DSSERVO Custom servo DSSERVO BLS3355
- Brushless motor for maximum durability
- Huge adjusting force - up to 61kgcm at 0.09sec/60°

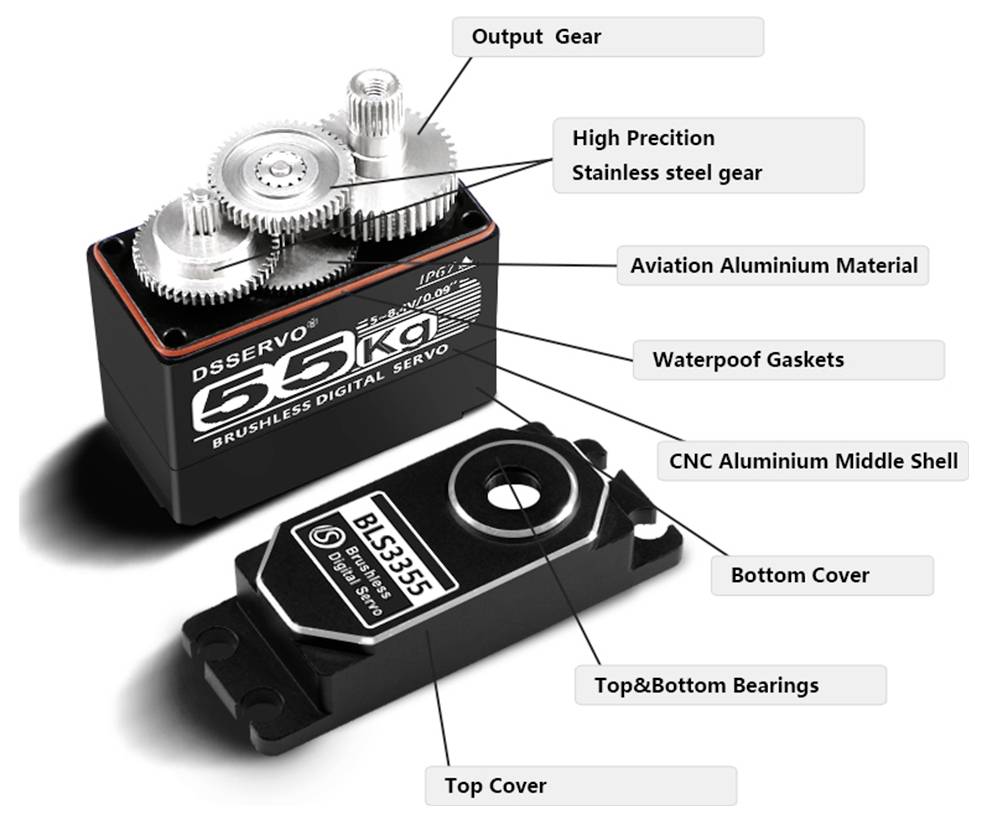

- All-metal casing for the toughest conditions
- Dust and waterproof according to IP67
- 270° steering angle optional
- Double ball bearings & 2µsec Deadband for highest precision
- PWM-compatible with 4.8û8.4V operating voltage
- This text is machine translated.
Technical specifications
- Model
DSSERVO BLS3355
- Dim
(L x W x H) 40 x 20 x 38 mm
- Length
40 mm
- Width
20 mm
- Height
38 mm
- Weight
85 g
- Actuation time at 4.8 V
0.14 sec/60°
- Actuation time at 6 V
0.12 sec/60°
- Actuation time (7.4 V)
0.10 sec/60°
- Type of bearing
Double ball bearing
- Manufacturer part #
DS018
- Min. operating voltage
4.8 V
- Operating voltage
4.8 - 8.4 V
- Max. operating voltage
8.4 V
- Product type
Custom servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773690 DSSERVO Custom servo DSSERVO BLS3355
Description
Scope of delivery
- DS servo
