DSSERVO Custom servo DSSERVO DS3240
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Highlights & Details
DSSERVO Custom servo DSSERVO DS3240
- Up to 45kgcm actuating force at 6.8V
- High reliability 3-pole motor
- Double ball bearing and precise gear (342:1)
- Dust and splash protection acc. To IP66
- PWM-compatible with 3µsec Deadband
- Standard size with 270° control option
- This text is machine translated.
Technical specifications
- IP66 water- and dust-protected
- Rotation range is 180° or 270° (500–2500µs)
- Model
DSSERVO DS3240
- Dim
(L x W x H) 40 x 20 x 40.5 mm
- Length
40 mm
- Width
20 mm
- Height
40.5 mm
- Weight
60 g
- Manufacturer part #
DS007
- Min. operating voltage
5.0 V
- Operating voltage
5.0 - 6.8 V
- Max. operating voltage
6.8 V
- Product type
Custom servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773679 DSSERVO Custom servo DSSERVO DS3240
Description

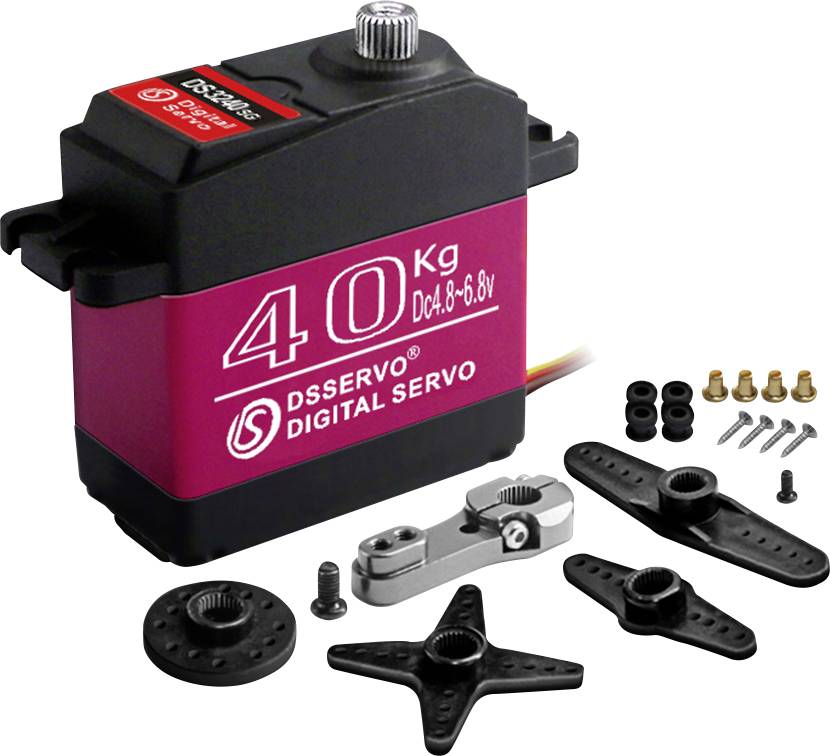

Scope of delivery
- DS servo
