Buy APEM 12145X778 12000X778 Serie Toggle switch momentary 1 pc(s) Piece | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

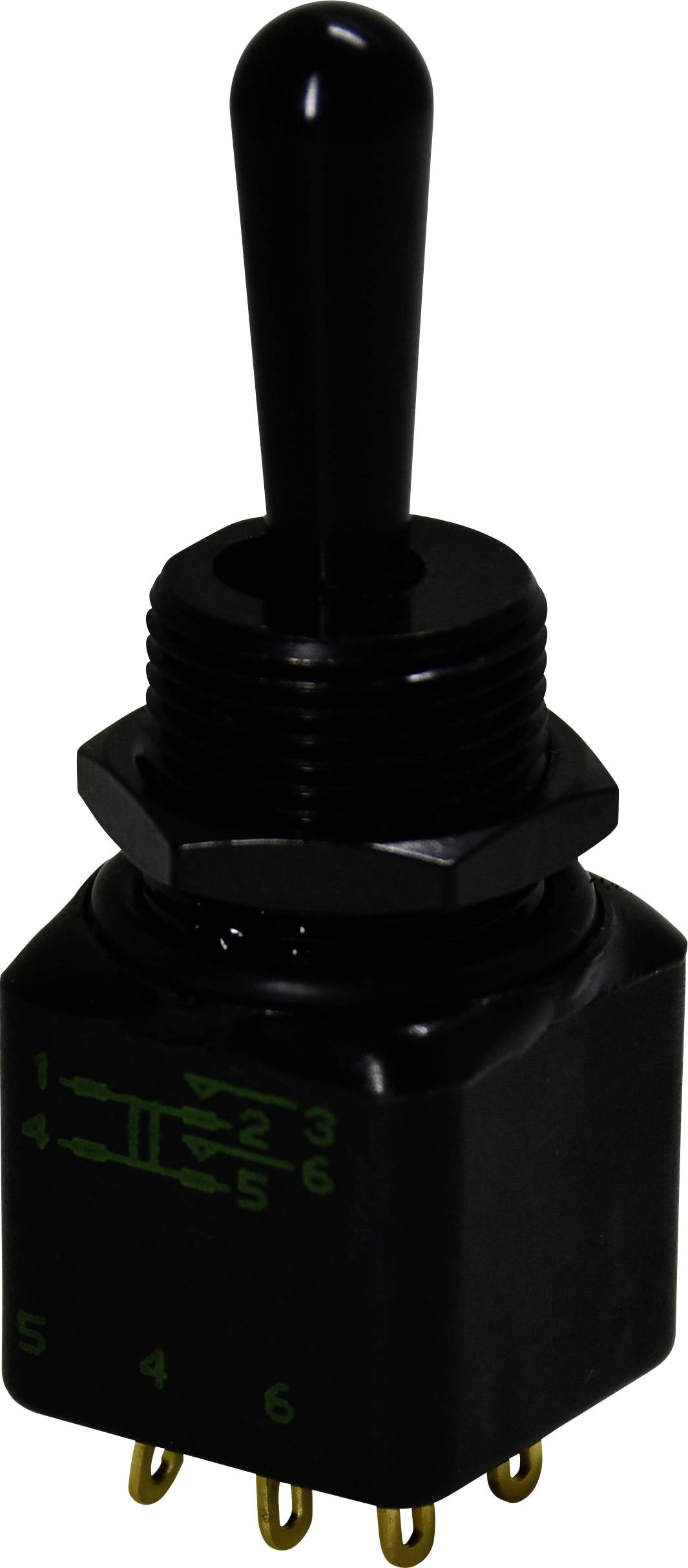

A black toggle switch with six gold terminals, labeled 1 to 6, likely used for electronic device control, shown upright.

A black toggle switch with six gold terminals, labeled 1 to 6, likely used for electronic device control, shown upright.

APEM

Packaging type

Piece

Product type

Toggle switch

Switch/button features

+ lever

Casing/button colour

Black

Functions

momentary

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 98.08 / piece)

€ 98.08

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Panel switch

()

Our service for you

Technical specifications

Packaging type: Piece

Product type: Toggle switch

Switch/button features: + lever

Casing/button colour: Black

Functions: momentary

Lighting type: None

Colour: Black

Connection: Solder tag

Number of pins: 2

Contact resistance: 10mΩ max. (initial value)

Min. temperature: -40 °C

Max. temperature: 85 °C

Electrical lifespan: - At 4A 28VDC :20,000 cycles (10,000 for functions 5, 4-1R, 4-2R)
- At low voltage (50mV 10mA) :150,000 cycles (switch with 2 continuous positions)100,000 cycles (switch with 3 continuous positions)50,000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

Insulation resistance: 1,000 MΩ min. At 500VDC

Industrial packaging: Yes

RoHS-compliant: Yes

Type: 12000X778 Serie

Documents & Downloads

Datasheet

Datasheet 3728974 APEM 12145X778 12000X778 Serie Toggle switch momentary 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3728974 APEM 12145X778 12000X778 Serie Toggle switch momentary 1 pc(s) Piece

Description

Versatile 12145X778 panel switch with double pole configuration, ON MOM function and standard levers for precise control in industrial and household applications.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Versatile 12145X778 panel switch with double pole configuration, ON MOM function and standard levers for precise control in industrial and household applications.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
