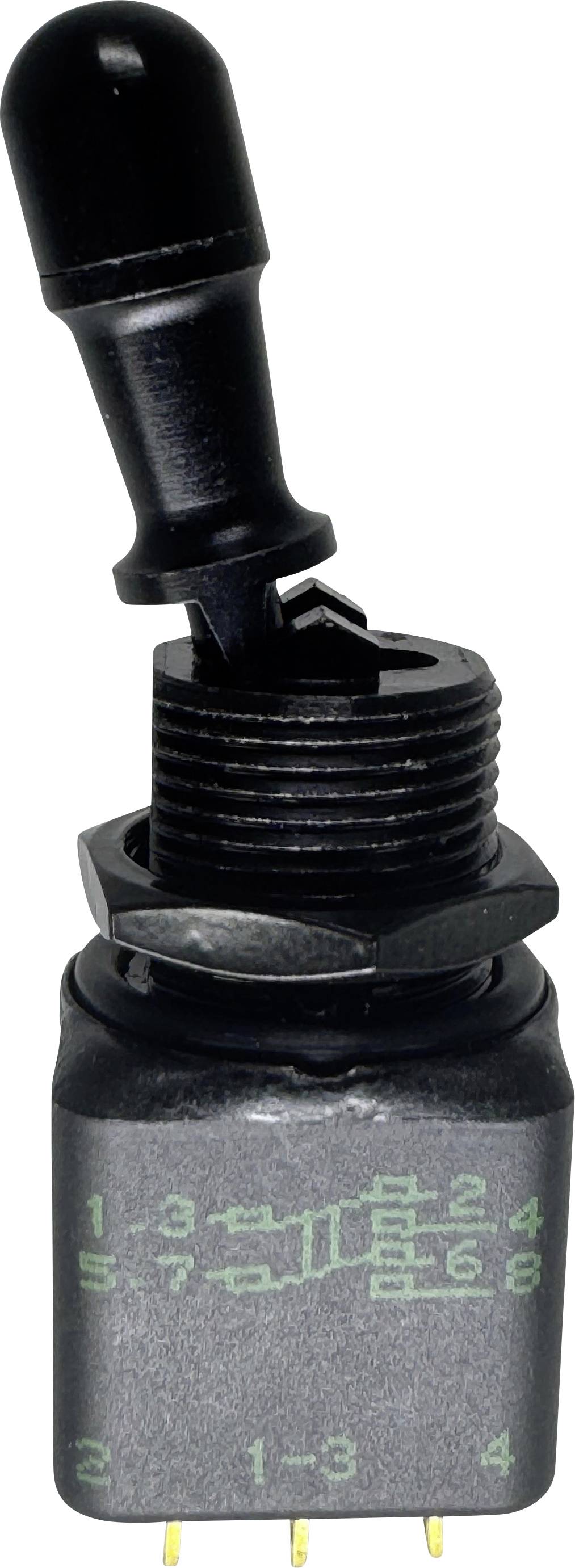

A black toggle switch with a round handle, marked with numbers and symbols, showing various settings and connections.

A black toggle switch with a round handle, marked with numbers and symbols, showing various settings and connections.

APEM

Product type

Toggle switch

Switch/button features

lockable

Casing/button colour

Black

Functions

latch

Switch position

2 x On/On

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

75 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 106.08 / piece)

€ 106.08

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Panel switch

()

Our service for you

Technical specifications

Product type: Toggle switch

Switch/button features: lockable

Casing/button colour: Black

Functions: latch

Switch position: 2 x On/On

Connection: Solder tag

Number of pins: 2

Min. temperature: -40 °C

Max. temperature: 85 °C

Electrical lifespan: - At 4A 28VDC :20,000 cycles (10,000 for functions 5, 4-1R, 4-2R)
- At low voltage (50mV 10mA) :150,000 cycles (switch with 2 continuous positions)100,000 cycles (switch with 3 continuous positions)50,000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)

Insulation resistance: min 1GΩ at 500VDC

Industrial packaging: Yes

RoHS-compliant: Yes

Type: 12000X778 Serie

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3728954 APEM 12146-2VX778 12000X778 Serie Toggle switch 2 x On/On latch 1 pc(s)

Description

Versatile 12146-2VX778 panel switch with double pole configuration and ON function for reliable switching. Robust design ensures long-lasting performance for industrial and commercial applications.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Versatile 12146-2VX778 panel switch with double pole configuration and ON function for reliable switching. Robust design ensures long-lasting performance for industrial and commercial applications.

This text is machine translated.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
