Name: Arduino UNO™ Q VLM-Bundle CSI Arduino UNO Q 2 GB 4 x 2.0 GHz Camera card, PSU, USB cable
Brand: Arduino
SKU: 3833387

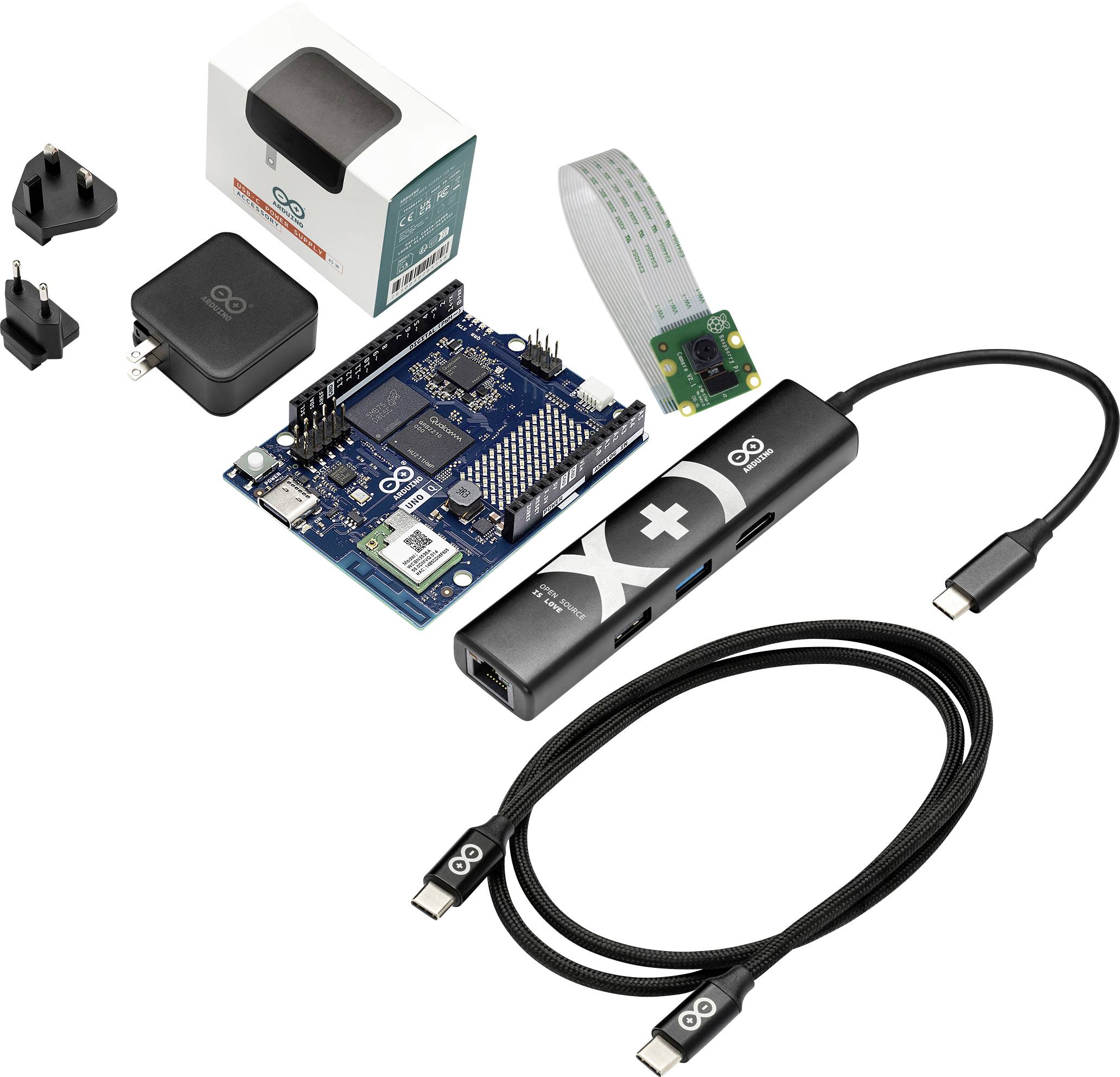

Arduino kit with microcontroller board, USB-C cable, battery pack, ribbon cable, and power adapters, shown as included components.

'A compact Arduino circuit board featuring various components and a USB-C port, designed for electronic prototyping and development.'

'An Arduino Uno Q microcontroller partially emerging from its box, featuring a circuit board with various components and connectors.'

Arduino UNO Q board with Qualcomm chip, USB-C port, and multiple I/O pins, designed for IoT applications and software development.

A microcontroller board with various electronic components, labeled 'Arduino UNO R4', featuring a Qualcomm chip and connection ports.

Black USB-C hub/dongle with multiple ports, including USB-A, HDMI, Ethernet, and an SD card slot, connected by a short cable.<br>

Black square wall charger with interchangeable plug adapters and retail packaging shown on a white background.

'ARDUINO USB-C CABLE' box with a black braided USB-C cable extending out.

A Raspberry Pi camera with a ribbon cable, suitable for projects such as surveillance, robotics, and photography with the mini-computer.

1/9

EAN:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Arduino® UNO™ Q (2 GB / 16 GB eMMC) VLM bundle with Raspberry Pi® camera module V2 with CSI connection

Low-latency image processing: Direct connection via the MIPI CSI interface reduces overhead and latencies when capturing frame data.
Compact form factor: Ideal for space-efficient enclosure integrations and mobile embedded Vision systems.
Maximum system performance: By offloading the camera bus, the USB bandwidth remains completely free for additional data interfaces.

Technical specifications

Microprocessor (MPU): Qualcomm Dragonwing™ QRB2210: Quad-Core Arm® Cortex®-A53 with 2.0 GHz / Adreno GPU 3D graphics accelerator: 2x ISP (13 MP + 13 MP or 25 MP) with 30 fps
Microcontroller (MCU): STM32U585 / Arm® Cortex®-M33 with up to 160 MHz / 2 MB flash memory / 786 KB SRAM
Power supply: Via USB-C port 5 VDC max. at 3 A / input voltage (VIN): 5 VDC
USB 1× USB-C connection with host/device roller switching, current roller circuit and video output
Connectivity: Wi-Fi® 5 2,4/5 GHz with integrated antenna / Bluetooth® 5.1 with integrated antenna
INTERFACES I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
Video: Video output support via USB-C, MIPI DSI pins on the JMEDIA header
4× RGB LEDs, user-controlled / 8x13 blue LED matrix / 1x QWIIC connector, 3V3 voltage, I2C / 1x user pushbutton / JCTL: MPU remote debug connection
Audio: Microphone input / headphone output / line output on JMISC
Dimensions: 68.85 mm x 53.34 mm (UNO form factor)
MPU Operating System: Linux Debian OS with upstream support
Real-time operating system: Arduino Core on Zephyr OS
Containment: Docker- und Docker Compose-support
Supported operating systems for Arduino APP Lab: Windows: Windows: 10 or higher (64-bit) / MacOS: MacOS 11 or higher (64-bit) / Linux: Ubuntu 22.04 or higher and Debian Trixie (64-bit)

Product type: SBC starter kit

Type: Arduino UNO Q

Processor: ARM Cortex-A53

Processor cores (No.): 4 x

: 2 GB

Clock speed: 2.0 GHz

Operating system (Version): Linux

Memory capacity: 16 GB

Bluetooth: 5.1

Power supply (LOV): via USB
via PSU (optional)

Content: Camera card
PSU
USB cable

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3833387 Arduino UNO™ Q VLM-Bundle CSI Arduino UNO Q 2 GB 4 x 2.0 GHz Camera card, PSU, USB cable

Description

The Arduino UNO Q VLM CSI camera Bundle is intended for developers and engineers who need a compact, direct-attached lens for embedded vision systems. The use of the CSI interface enables low-latency image processing at low system load.

Target groups & application areas
Designed for engineers, robotics developers and embedded AI specialists who develop space-saving Vision language solutions for robotics, automation or smart sensors.
