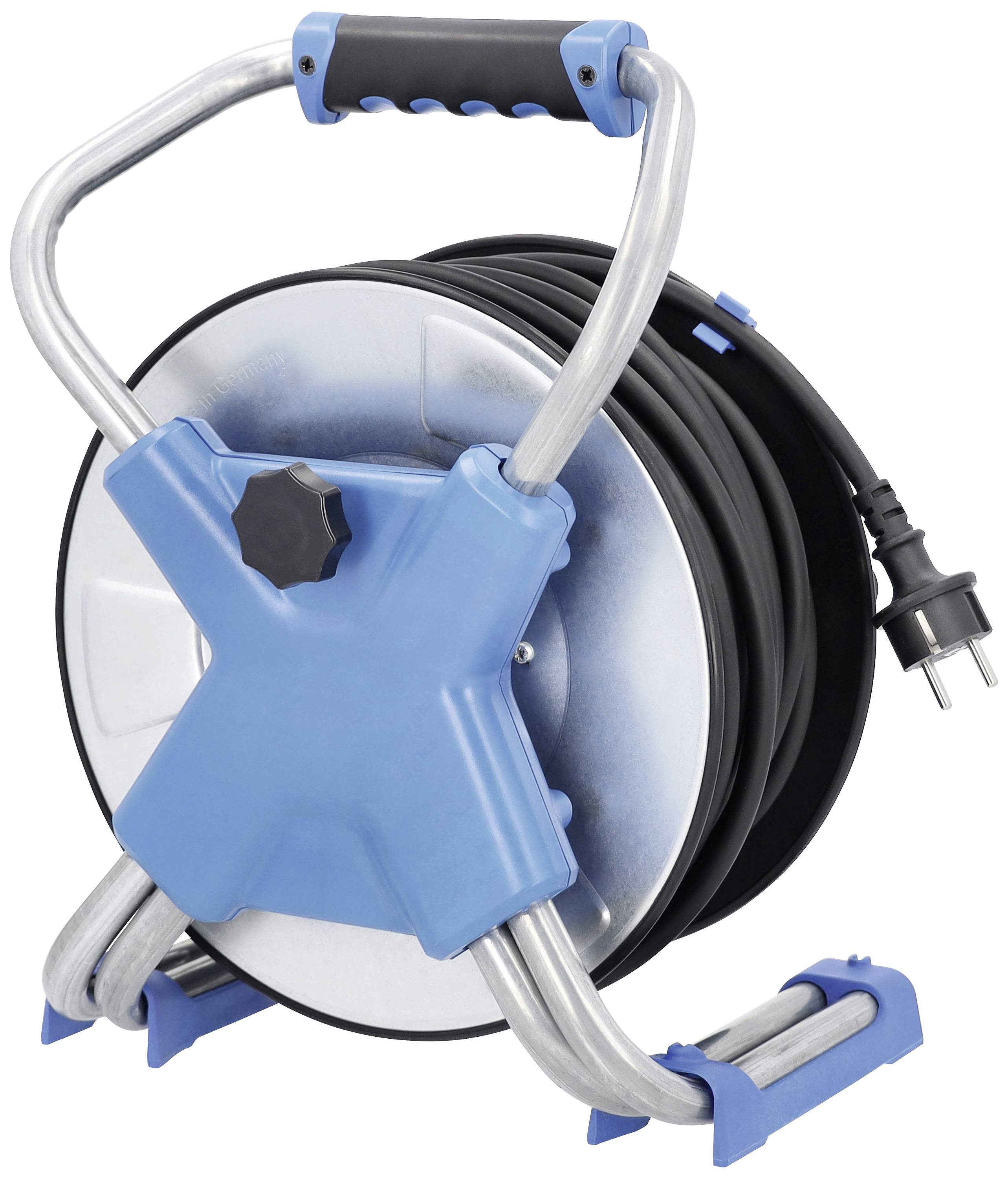

AS Schwabe 22723 Cable reel 33 m Black PG plug
EAN:
Part number:
Item no:
Highlights & Details
as - Schwabe IronCoat Xperts Metal-Cable reel 33 m Rubber hose cable H07RN-F 3G2.5 with earthing contact plug
- The cable drum with heavy rubber hose line has 3 earthing contact sockets 230 V with safety hinged lids and hammer marks
- Patented cable routing for easy unwinding and unwinding
- The hot-dip galvanized metal drum has a shock-absorbing X-double pipe frame
- RN cables with rubber insulating sleeve are coated with neoprene rubber
- Oil-resistant and for use in outdoor areas and on farms
- With thermal protection switch and special protection insulation
- Suitable for long-term use in outdoor areas and agricultural holdings
- Approved on construction sites
Technical specifications
- Product type
Cable reel
- Cable length
33 m
- Type A
PG plug
- Inputs
16 A
- Connector version
straight
- Type B
PG socket
- Outlets
3
- Cable colour
Black
- Cable standard
H07RN-F 3G 2,5 mm²
- Used at
Outdoors
Indoors
- Material
Metal
- Cable features
Cold-resistant
Harmonised
Oil-resistant
UV-resistant
- Factory colour
Silver
- Nominal input voltage
230 V
- Nominal current (details)
16 A
- Power rating
230V, 16A, MAX. 3500 W.
- Load capacity (wound/unwound)
1000W / 3500 W
- Reel diameter
28.5 cm
- Type
as - Schwabe IronCoat Xperts Metal-Cable drum 33 m Rubber hose-cable H07RN-F 3G2.5. With 3 Schuko sockets (230 V, 16 A). IP44 – Made in Germany.
- Weight
9.1 kg
IP44
- Standards
EN 61242
DIN VDE 0620-1
DIN VDE 0282-4
- Outputs
3x SCHUKO socket 230V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2249521 AS Schwabe 22723 Cable reel 33 m Black PG plug
Description
The IronCoat Xperts metal cable drum with 33m cable length of as - Schwabe convinces through its quality and safety in all areas. IronCoat cable reels offer the advantages of a classic steel cable reel in terms of higher mechanical load capacity, resistance and resistance to temperature fluctuations. Additional protective insulation of the cable drum and the side panels offers improved protection against dangerous contact voltages on touchable construction parts in case of damage to the cable. With stable X-double pipe frame, the ergonomically shaped, non-slip 2-component handle and the patented cable routing.
The IP44 cable reel has a thermal protection switch. The flexible, mechanically resilient cable is oil-resistant, flame-resistant and suitable for temperature ranges from -25°C to +60°C. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.
This text is machine translated.
The IP44 cable reel has a thermal protection switch. The flexible, mechanically resilient cable is oil-resistant, flame-resistant and suitable for temperature ranges from -25°C to +60°C. Can be used in water, dry and damp rooms. ideal for use in outdoor areas and in agricultural holdings. Approved on construction sites.
This text is machine translated.
Features
- Mechanically heavy-duty and temperature-resistant galvanized metal drum housing with additional protective insulation
- Stable and shock-absorbing X-double pipe frame
- Ergonomically designed, non-slip 2-component handle
- RN-cable has a rubber insulating sleeve and is covered with black neoprene rubber
- Oil-resistant and suitable for use outdoors and on farms
- Approved on construction sites
Hints
Approved for heavy construction site use.
