AS Schwabe 61480 CEE plug 16 A 230 V 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 15.96
-21 %
€ 12.60
plus VAT.
Technical specifications
- Product type
CEE plug
- Nominal voltage
230 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Type A
Screws
- Type B
CEE plug (3-pin, 16 A)
IP44
- Standards
Tested according to
IEC 60309
- Factory colour
White
- Dim
(W x H) 100 mm x 112 mm
- Width
100 mm
- Height
112 mm
- Content
1 pc(s)
- Number of pins
3
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2484783 AS Schwabe 61480 CEE plug 16 A 230 V 1 pc(s)
Description

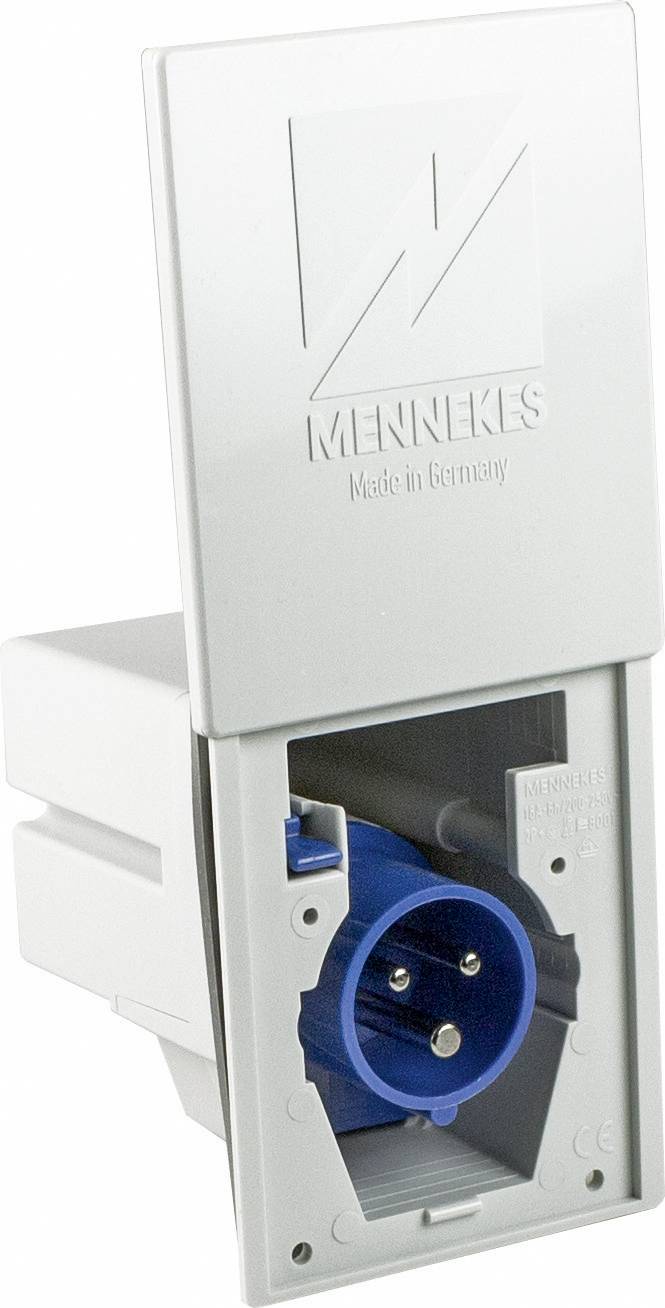

High-quality CEE feed-in plug for self-assembly
CEE feed-in plug 230 V, 16 A, 3-pin with sliding cover

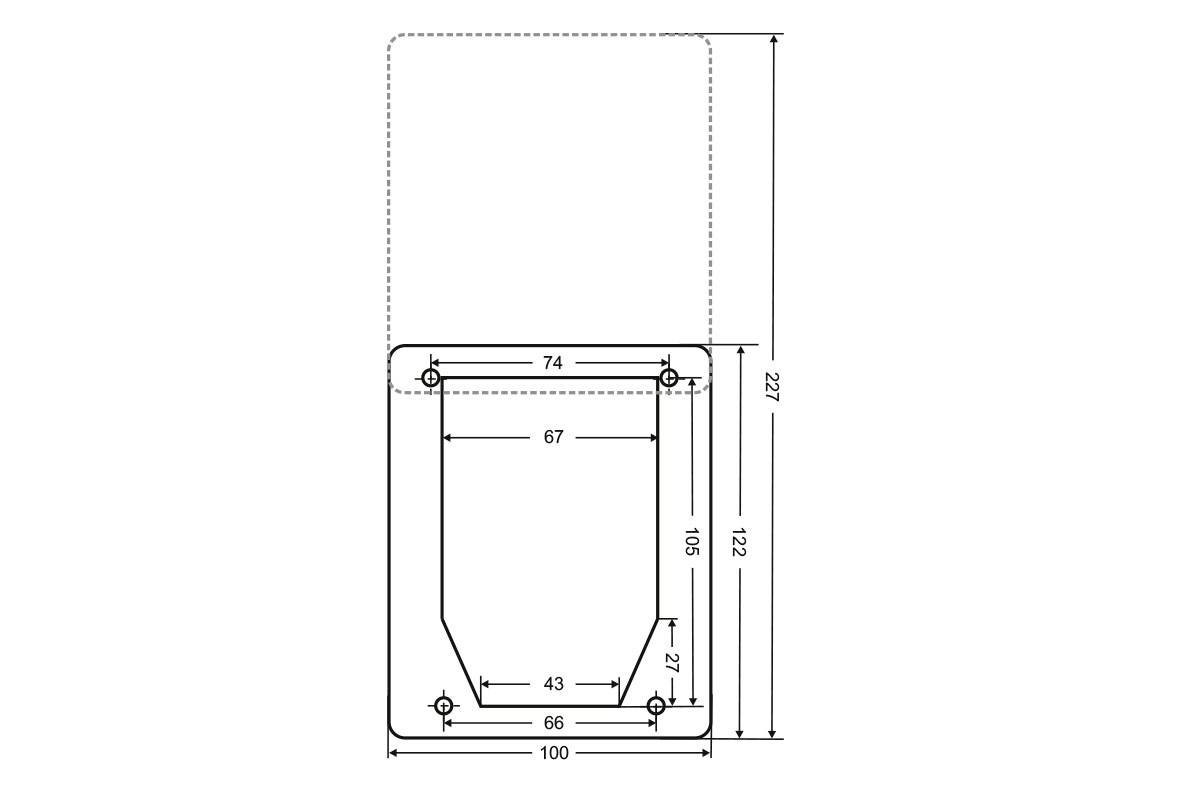

Flange dimension HxB in mm (closed): 112x100
Dimensions HxW in mm (open): 227x100
Hole spacing HxB in mm 74/66 x 105
Installation depth in mm 119
CEE 230 V, 16 A, 3-pin, 6 h
IP44: foreign bodies and splash-proof
This text is machine translated.
CEE feed-in plug 230 V, 16 A, 3-pin with sliding cover
Flange dimension HxB in mm (closed): 112x100
Dimensions HxW in mm (open): 227x100
Hole spacing HxB in mm 74/66 x 105
Installation depth in mm 119
CEE 230 V, 16 A, 3-pin, 6 h
IP44: foreign bodies and splash-proof
This text is machine translated.
