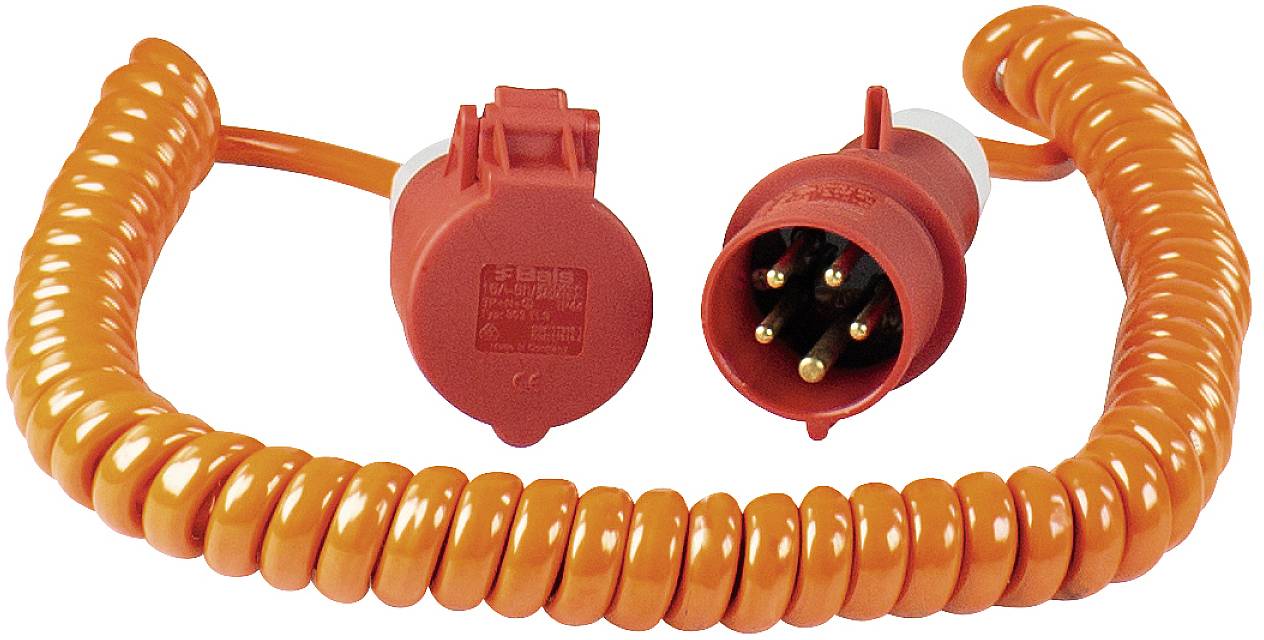

AS Schwabe 70419 Current Cable extension 16 A Orange 5.00 m H07BQ-F 5G 2,5 mm² Spiral cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Heavy current construction sites spiral cable polyurethane
- Extremely weather resistant, highly flexible, Ries, shear-resistant and abrasion-proof
- Temperature range -40 to +80 °C
- In Orange Safety Color
- Basic length approx. 1 m
- Flexible expandable to up to 5 m, pulls itself together again.
- Even in continuous use remains highly flexible
- With high-quality CEE plug and CEE clutch
Technical specifications
- Tested according to IEC 60309, DIN VDE 0282-10
- Product type
Current Cable extension
- Version
Cable extension
- Type A
CEE plug (5-pin, 16 A)
- Connector version
straight
- Type B
CEE connector (5-pin, 16 A)
- Cable standard
H07BQ-F 5G 2,5 mm²
- Cable length
5.00 m
- Cable features
Spiral cable
- Used at
Outdoors
IP44
- Factory colour
Orange
- Cable use
Current
- Nominal current
16 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1857808 AS Schwabe 70419 Current Cable extension 16 A Orange 5.00 m H07BQ-F 5G 2,5 mm² Spiral cable
User & Safety Instructions
User & Safety Instructions 1857808 AS Schwabe 70419 Current Cable extension 16 A Orange 5.00 m H07BQ-F 5G 2,5 mm² Spiral cable
Description
Line with Polyurethan-Au Outdoor jacket for the highest mechanical stress
This text is machine translated.
This text is machine translated.
