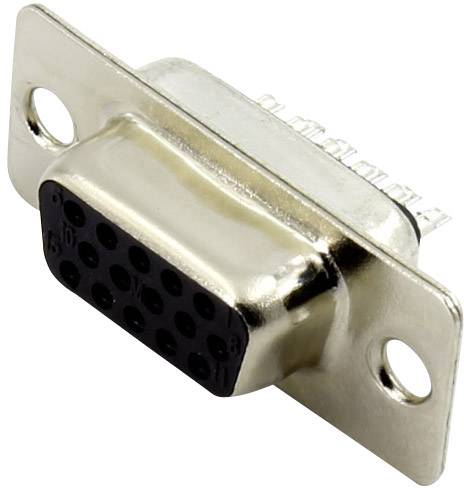

Image similar

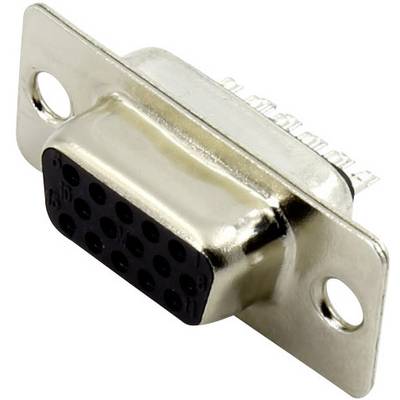

Image similar
ASSMANN WSW A-HDF 15 LL/Z D-SUB receptacles 180 ° Number of pins: 15 Solder bucket 1 pc(s)
EAN:
Part number:
Item no:
Product type
D-SUB receptacles
Connector type
Socket, vertical vertical
Number of pins
15
Connection
Solder bucket
No. of rows
3
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.74
9
8% = € 0.06
€ 0.68
15
11% = € 0.08
€ 0.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.74 / piece)
€ 1.84
-60 %
€ 2.22
plus VAT.
Highlights & Details
ASSMANN WSW A-HDF 15 LL/Z D-SUB receptacles 180 ° Number of pins: 15 Solder bucket 1 pc(s)
- glass fibre reinforced
Our service for you
Technical specifications
- Product type
D-SUB receptacles
- Connector type
Socket, vertical vertical
- Number of pins
15
- Connection
Solder bucket
- Connection angle
180°
- No. of rows
3
- Content
1 pc(s)
- Manufacturer part #
A-HDF 15 LL/Z
- Contact material
Phosphorus bronze 6µ gold
- RoHS-compliant
Yes
- Type
A-HDF 15 LL/Z
- Type
Female header
- Pins
15
- Connection
Solder
- Casing
Polyester glasfaserverstärkt nach UL 94V-0
Documents & Downloads
Datasheet
Datasheet 742724 ASSMANN WSW A-HDF 15 LL/Z D-SUB receptacles 180 ° Number of pins: 15 Solder bucket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 742724 ASSMANN WSW A-HDF 15 LL/Z D-SUB receptacles 180 ° Number of pins: 15 Solder bucket 1 pc(s)
Description
Straight with solder cup
Hints
Only for PCB mounting.
