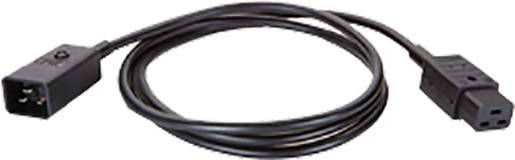

Bachmann 356.1973 Current Cable 16.0 A Black 1.00 m incl. PG
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection 1: Right-angled Schuko plug
- Connection 2: Straight IEC socket
- Connector system-linked: No.
- Wire number: 3
- Conductor cross-section: 1.5 mm²
- Length: 1 m
- Jacket material: Polyvinyl chloride (PVC)
- Temperature resistance 70 °C
- Nominal current: 16 A
- Nominal voltage 230..250 V
- Mains frequency: 50/60 Hz.
- Sheath color: Black
- Spiral cable: No.
- With ground wire: Yes
- Protection class (IP) IP20
- Oil resistant according to EN 60811-404: No.
- With cord switch: No.
- Outer diameter approx. 8.2 mm
- Product type
Current Cable
- Version
Cable
- Type A
PG plug
- Connector version
angled on one side
- Type B
IEC C19 socket (cooling devices)
- Outlets
1
- Cable length
1.00 m
- Cable features
incl. PG
IP20
- Factory colour
Black
- Cable use
Current
- Nominal current
16.0 A
- Length
1.00 m
- Connection type
PG connector
- Nominal voltage
250 V
- Operating voltage
250 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3158742 Bachmann 356.1973 Current Cable 16.0 A Black 1.00 m incl. PG
User & Safety Instructions
User & Safety Instructions 3158742 Bachmann 356.1973 Current Cable 16.0 A Black 1.00 m incl. PG
Description
Power distributor Power SUPPLY LINES/CONNECTION lines 16A/ 250V~ 1 m H05VV-F 3G 1.5 mm² black CEE 7/7 safety plug with double earthing contact system angle, molded C19-cold device socket IEC 60320, central, mounted individually
