Bals Elektrotechnik 110624 110624 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 19.99 / piece)
€ 19.99
incl. VAT
14-day return policy included
Technical specifications
- Surface-mounted version
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Mounting method: Outdoor mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
Surface-mounted
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3307939 Bals Elektrotechnik 110624 110624 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3307939 Bals Elektrotechnik 110624 110624 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket INNOLINQ QC
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 92x94 mm (HxB)
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry 1xM32 at the top
Colour: Dark gray cover RAL 7012, red collar RAL 3000, dark gray enclosure cover RAL 7012, dark gray enclosure bottom RAL 7012

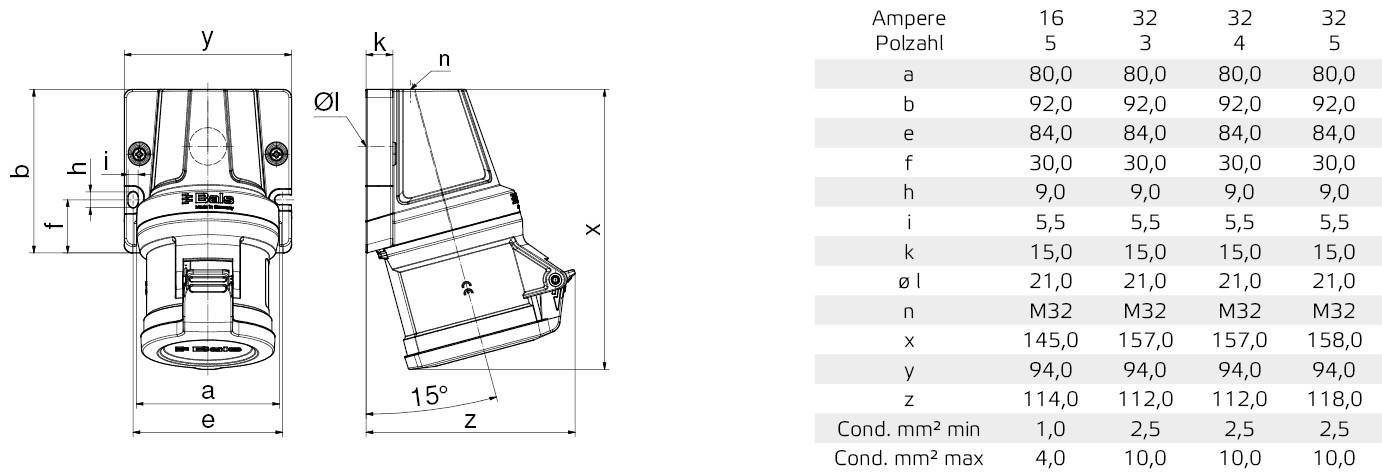

Device height: 145 mm, device width: 94 mm, device depth: 112 mm
Halogen-free: Yes
Other technical characteristics: The cable entry is open at the top once and closed at the bottom once, this product is without lead
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 92x94 mm (HxB)
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry 1xM32 at the top
Colour: Dark gray cover RAL 7012, red collar RAL 3000, dark gray enclosure cover RAL 7012, dark gray enclosure bottom RAL 7012
Device height: 145 mm, device width: 94 mm, device depth: 112 mm
Halogen-free: Yes
Other technical characteristics: The cable entry is open at the top once and closed at the bottom once, this product is without lead
This text is machine translated.
