Bals Elektrotechnik 201 201 CEE plug 32.0 A 5-pin 400 V 1 pc(s)
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Phase inverter: No.
- Protection class (IP) IP54
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP54
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3307923 Bals Elektrotechnik 201 201 CEE plug 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3307923 Bals Elektrotechnik 201 201 CEE plug 32.0 A 5-pin 400 V 1 pc(s)
Description
INNOLINQ QC connector
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: With cable gland
Colour: Red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012

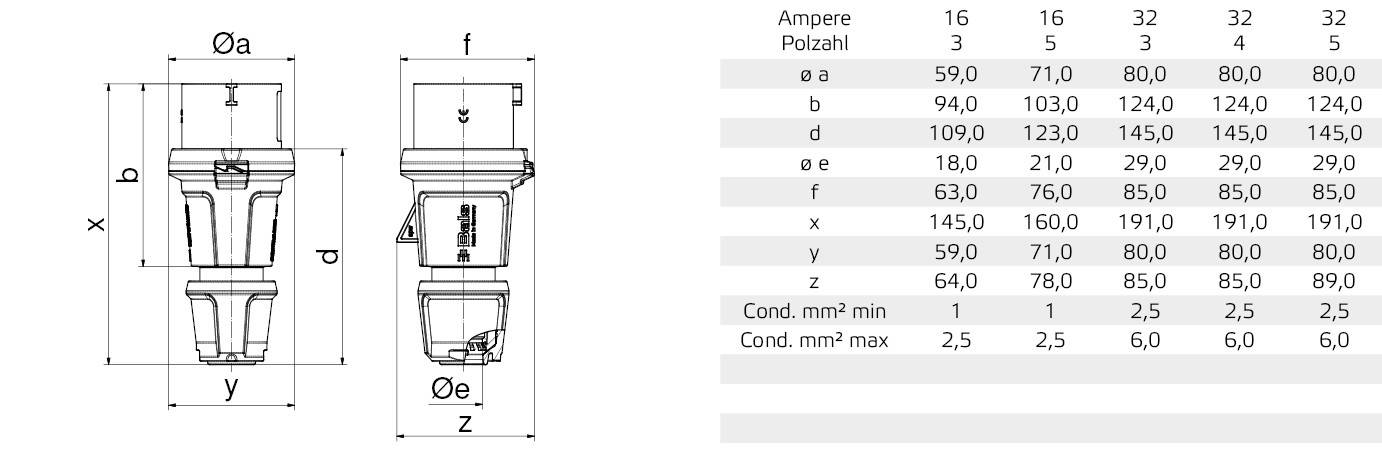

Device height: 191 mm, device width: 80 mm, device depth: 89 mm
Halogen-free: Yes
Other technical features: This product is without lead, with MULTI-Grip cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 13 mm to max. Diameter 29 mm
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 6.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: With cable gland
Colour: Red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012
Device height: 191 mm, device width: 80 mm, device depth: 89 mm
Halogen-free: Yes
Other technical features: This product is without lead, with MULTI-Grip cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 13 mm to max. Diameter 29 mm
This text is machine translated.
